EsyBox Mini 3

Esybox mini 3

The installer menu is a menu that allows you to modify numerous pump operating parameters. In the case of Esybox Mini 3, you can enter the menu by simultaneously pressing the "mode" "set" and "-" buttons for a few seconds. Modifying these parameters is recommended only by professional personal or under the supervision of our customer service. The menu allows you to view and edit various configuration parameters: the MODE button scrolls through the menu pages, the + and - buttons allow you to respectively increase and decrease the value of the parameter in question. To exit the menu and return to the main menu press SET.
To learn more about this topic, you can register free for our online course Esyline organized by DTraining, aimed at installers, plumbers or interested people. We recommend you read the Esybox Mini 3 instruction manual (also available on our DNA software) for all information on the use of the product.

The Esybox Mini 3 pump is designed to be ready for the first start, but if you do not have special requirements apart from the first fill for initial priming there is nothing to set up. With the product there is a quick illustrated paper guide that explains how to proceed with the first start. In addition to the quick guide, a manual is also provided where the first pages explain how to behave for the initial start of the product, including the loading procedures for the first priming.
To learn more about this topic, you can register free for our online course Esyline organized by DTraining, aimed at installers, plumbers or interested people. We recommend you read the Esybox Mini 3 instruction manual (also available on our DNA software) for all information on the use of the product.

Esybox mini 3 errore

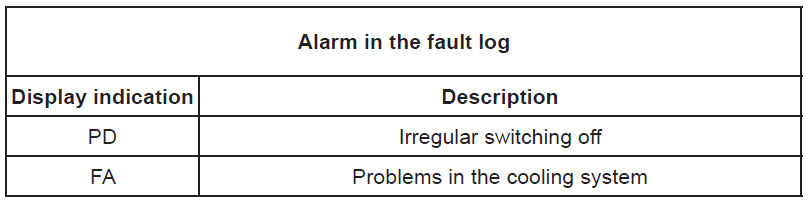

esybox alarm in log

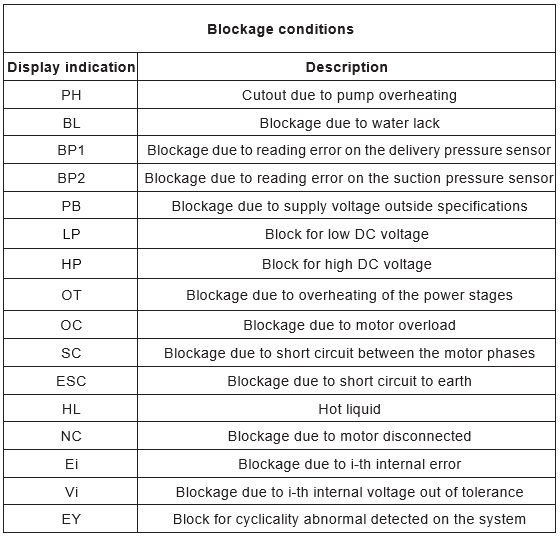

Esybox mini 3 blockage conditions

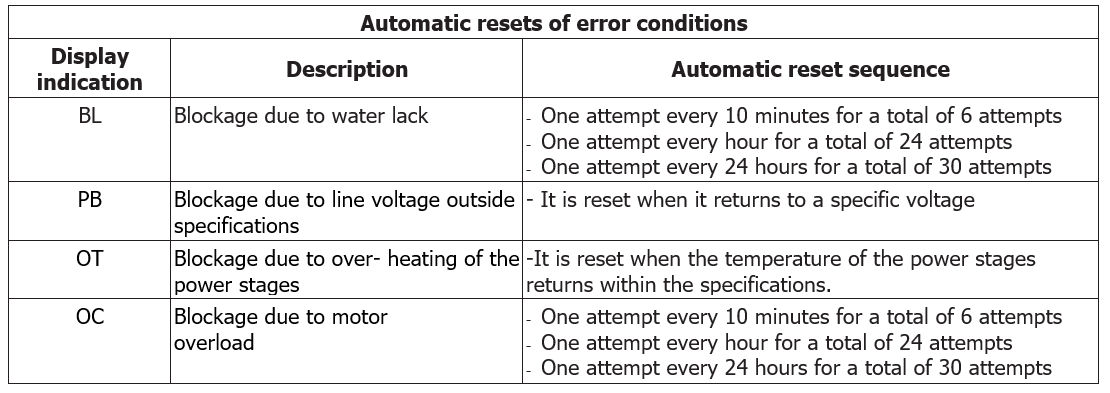

esyblox automatic resets of error conditions

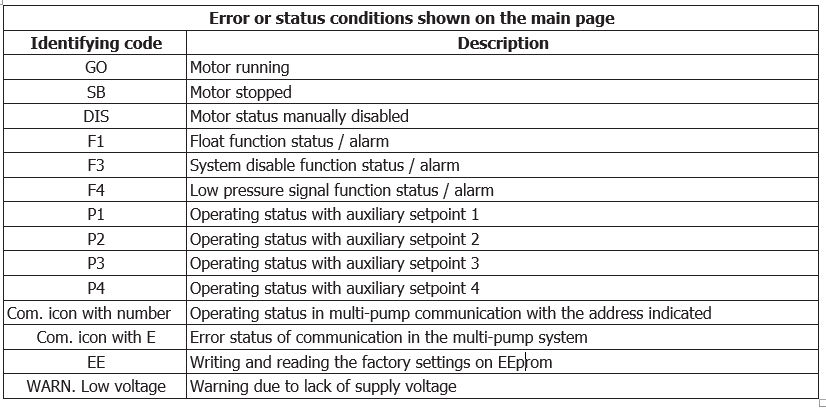

esybox error or status condtions shown on the main page

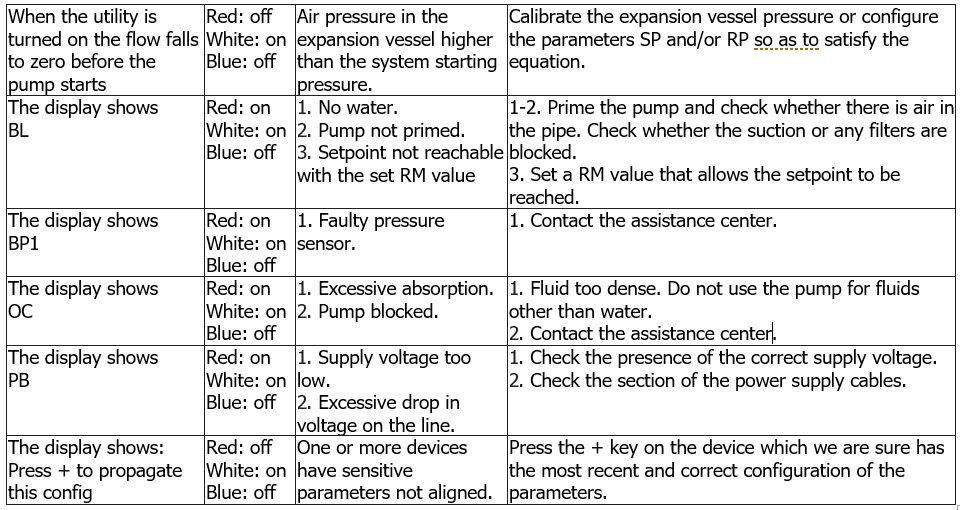

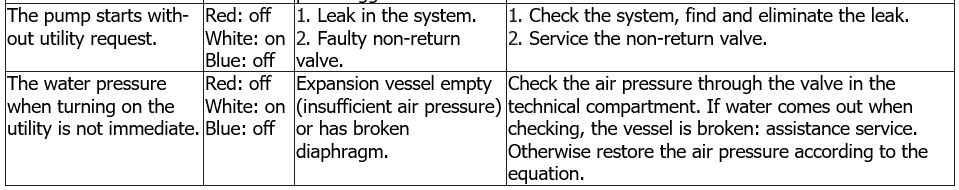

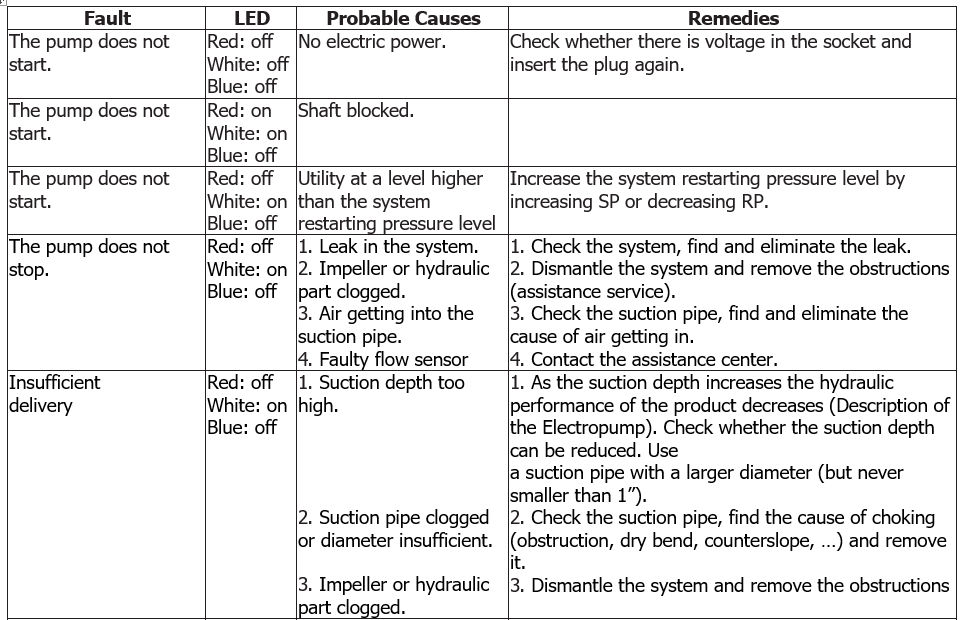

esybox troubleshooting
esybox troubleshooting
esybox troubleshooting

To learn more about this topic, you can register free for our online course Esyline organized by D.Training, aimed at installers, plumbers or interested people. We recommend you read the Esybox Mini 3 instruction manual (also available on our DNA software) for all information on the use of the product.
