Jet M-P, JetInox M-P, Euro M-P, EuroInox M-P

Do not start the pump without having completely filled it with liquid. Before starting up, check that the pump is properly primed; fill it completely with clean water by means of the hole provided after having removed the filler cap on the pump body. This ensures that the mechanical seal is well lubricated and that the pump immediately starts to work regularly. Dry operation causes irreparable damage to the mechanical seal. The filling cap must then be screwed back on carefully. The electropump should not be started more than 20 times in one hour so as not to subject the motor to excessive thermal shock. We recommend you read the instruction manual of the Jet MP, JetInox MP, Euro MP, EuroInox MP (also available in our DNA software) for useful information for the use of the product. Our Jet MP, JetInox MP, Euro MP, EuroInox MP centrifugal pumps are Jet, JetInox, Euro and Euroinox pumps with some assembled accessories as a standard feature, so please refer to the respective manuals (and their FAQ) for additional information.

We recommend you read the instruction manual of the Jet MP, JetInox MP, Euro MP, EuroInox MP (also available in our DNA software) for useful information for the use of the product. Our Jet MP, JetInox MP, Euro MP, EuroInox MP centrifugal pumps are Jet, JetInox, Euro and Euroinox pumps with some assembled accessories as a standard feature, so please refer to the respective manuals (and their FAQ) for additional information.

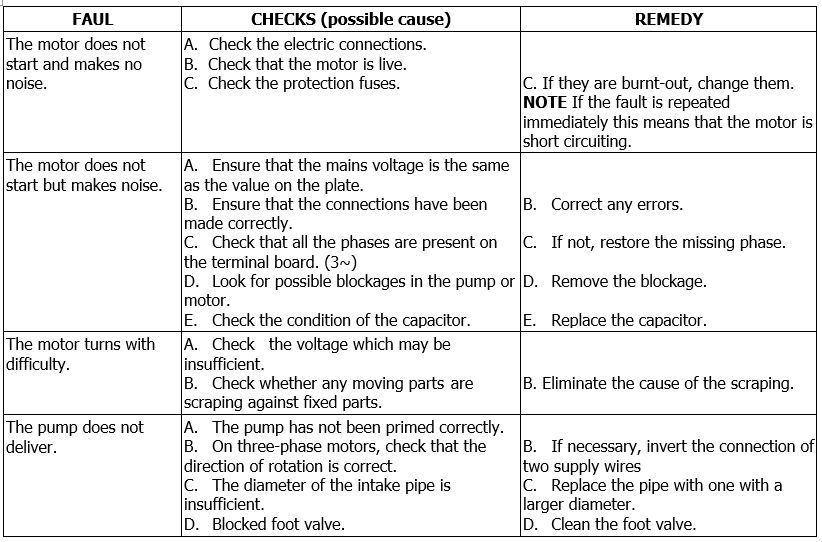

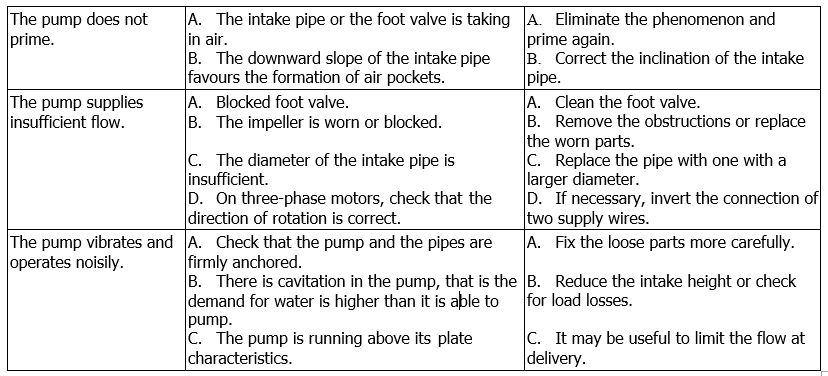

Jet JetInox Euro EuroInox MP troubleshooting
Jet JetInox Euro EuroInox MP troubleshooting

Switch on the power and check, on the three-phase version, that the motor is turning in the correct direction; this should be in a clockwise direction, looking at the motor from the impeller side. If it is turning in the wrong direction, invert the connections of any two wires on the terminal board, after having disconnected the pump from the power mains.



We recommend you read the instruction manual of the Jet MP, JetInox MP, Euro MP, EuroInox MP (also available in our DNA software) for useful information for the use of the product. Our Jet MP, JetInox MP, Euro MP, EuroInox MP centrifugal pumps are Jet, JetInox, Euro and Euroinox pumps with some assembled accessories as a standard feature, so please refer to the respective manuals (and their FAQ) for additional information.

Jet, JetInox, Euro, EuroInox MP rotazione motore

When replacing the power cable, a cable of the same type must be used (e.g. H05 RN-F or H07 RN-F depending on the installation) and with the same terminals, proceeding as for disassembly in inverse order. ATTENTION: depending on the installation and if the pumps have no cable, fit supply cables type H05 RN-F for indoor use and type H07 RN-F for outdoor use, complete with plug (EN 60335-2-41). For power cables without a plug, provide a device for cutting off the mains (e.g. magnetothermal device) with separating contacts of at least 3 mm for each pole. We recommend you read the instruction manual of the Jet MP, JetInox MP, Euro MP, EuroInox MP (also available in our DNA software) for useful information for the use of the product. Our Jet MP, JetInox MP, Euro MP, EuroInox MP centrifugal pumps are Jet, JetInox, Euro and Euroinox pumps with some assembled accessories as a standard feature, so please refer to the respective manuals (and their FAQ) for additional information.
