We recommend you read the instruction manual of the SS, SS6, SS7, SS8, SS10 (also available in our DNA software) for useful information for use, maintenance and installation.

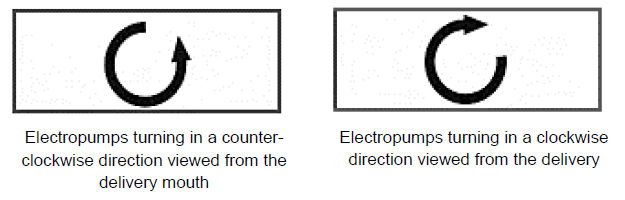

Check motor rotation direction before coupling the motor to the pump, so to avoid any damage to motor thrust bearing. Find and mark by means of cyclic phase indicator, whose pointer is turning clockwise, mains terminals L1, L2 and L3 and connect them to control panel terminals L1, L2 and L3.

We recommend you read the instruction manual of the SS, SS6, SS7, SS8, SS10 (also available in our DNA software) for useful information for use, maintenance and installation.
