Micra

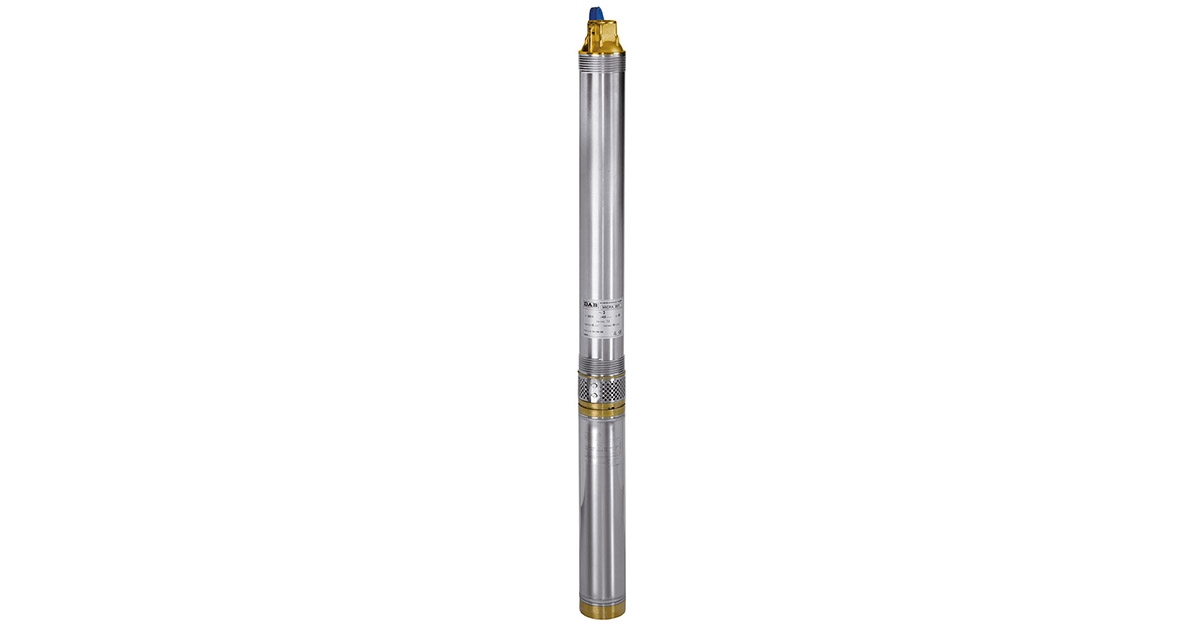

3" submersible multi-impeller pump. Designed for pressurization, gardening, irrigation and lifting water from the underground in residential building service. Pump and motor coupled by rigid joint. Non-return valve integrated in the cylinder head. Two-pole asynchronous submersible electric motor with stator immersed in thermosetting insulating resin and with high heat dissipation capacity, encapsulated in a hermetic stainless steel casing. Thermal protection with automatic reset included in the motor. Control panel for single-phase version supplied separately. Protection by the user in the three-phase version. Ready-to-use pump kit available, including single-phase pump with 15 meter cable and dual-capacitor control panel to optimize pump tick torque.

Micra

Multistage 3" submersible pump.

Technical specifications

3"

MAXIMUM WELL DIAMETER

From 1 to 5 m³/h

FLOW RATE

150 m

HEAD

50 g/m³

MAXIMUM SAND QUANTITY

From 0°C to +35°C

LIQUID TEMPERATURE

Micra e Micra HS
