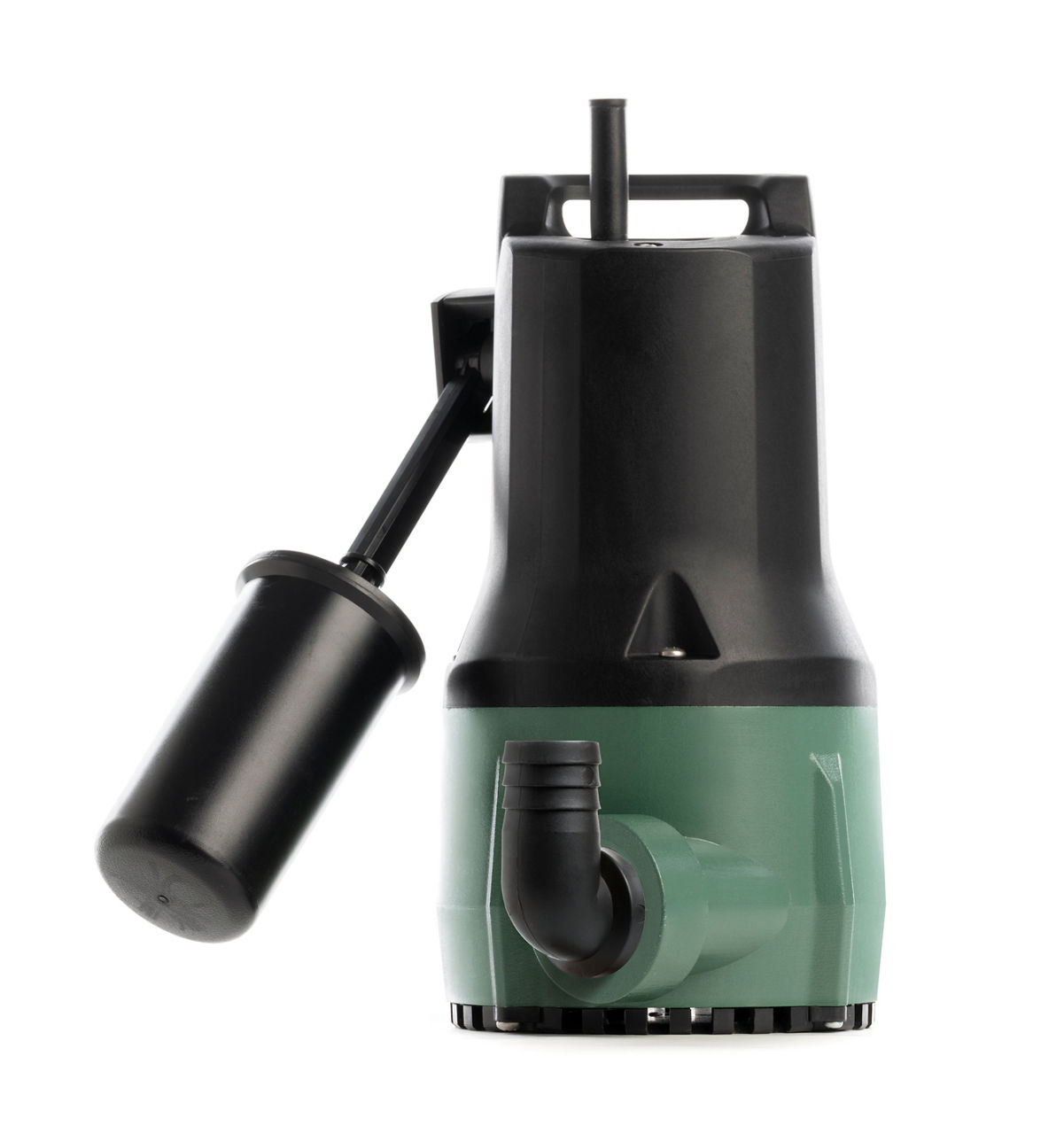

Submersible pump for draining drainage water and rain water in domestic and residential applications It is available in automatic version with built-in float switch, or in manual start version. Its typical application is to empty garages and floors to prevent flooding. It can also be used for emptying tanks or cisterns and as a portable pump in emergency situations where water needs to be drained from flooded rooms. The Nova range has been redesigned on the occasion of the forty years of marketing, making it even more reliable, resistant and ergonomic. It has a new treated cable and a new, more compact and efficient motor. The pump body, the impeller and the suction grid are in technopolymer, the motor shaft is in AISI 431 stainless steel, suitable for lightly salty water. The impeller is treated to prevent corrosion. Nova is robust and reliable, also thanks to the triple ring seal in oil bath and the submersible continuous duty asynchronous motor. The stator is inside a hermetic stainless steel casing and the rotor is mounted on oversized ball bearings. Built-in thermal protection in all single-phase versions. Maximum dry run time: 1 minute. In compliance with European standard EN 60335-2-41, the 10-meter power cable is mandatory for the pump in external use.
Minimum draught depth:
NOVA 180 MA: 90 mm
NOVA 180 M-NA: 8 mm
NOVA 200 M-NA: 8 mm
NOVA 300 MA: 100 mm
NOVA 300 M-NA: 13 mm
NOVA 600 MA: 150 mm
NOVA 600 M-NA: 30 mm

Vertical delivery draining pump, available in automatic or manual version, with removable filter for suction of particles up to 5 mm in domestic and residential applications; these features make it a robust pump and increase its versatility of installation. Technopolymer pump body, impeller, cover and suction grid. Stainless steel motor, rotor shaft, and bolts and screws. Threefold seal with interposed rings with oil pre-chamber. Submersible continuous duty asynchronous motor. Stator enclosed in airtight stainless steel casing. The rotor is mounted on oversized permanently lubricated ball bearings. Built-in thermal-amperometric protection and permanently connected capacitor.
Minimum draught depth:
NOVA UP 300 M-A 120mm
NOVA UP 300 M-NA 60mm
NOVA UP 600 M-A 165mm
NOVA UP 600 M-NA 70mm

Feka 300 and Feka 600 by DAB are submersible pumps suitable for draining and lifting clear or gray waste water and rainwater in residential building service. The pumps have been redesigned on the occasion of the forty years of marketing, making them even more reliable, resistant and ergonomic. Feka 300 and Feka 600 are suitable for fixed or mobile installations, they are available in the automatic version with integrated float switch or in the manual versions without the float. A 90° connection is provided for the vertical flow. The pump body, the suction grille and the impeller are in technopolymer. Thermal protection incorporated in all single-phase versions. Possibility of dry running up to 1 minute. In compliance with European standard EN 60335-2-41, a 10-metre power cable is mandatory for the pump to be used outdoors. Free passage of 25 mm.

Minimum draft depth:

FEKA 300MA: 150mm

FEKA 300 M-NA: 30 mm

FEKA 600MA: 175mm

FEKA 600 M-NA: 35mm

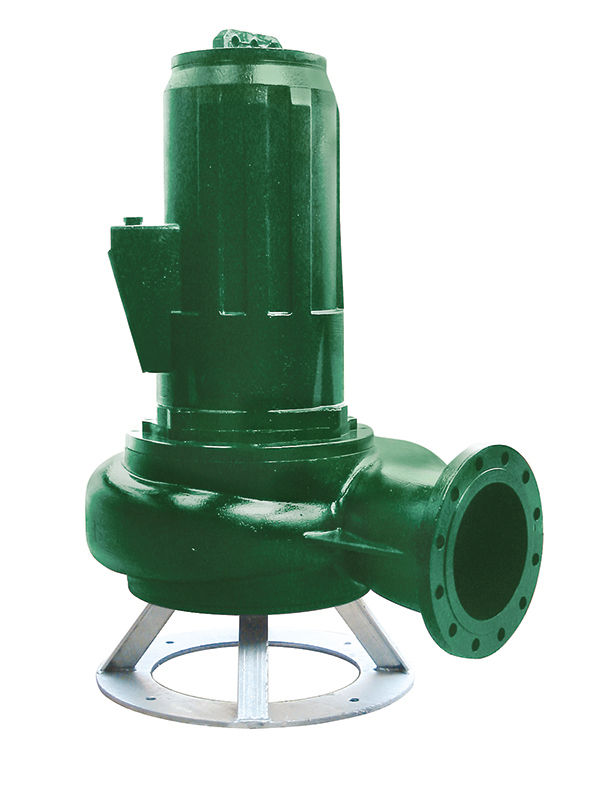

Cast-iron submersible pumps with single-channel (6000 version) and three-channel (8000 version) ring impeller. They are suitable for sewage water, grey waste water, and other general waste water. They are generally used in systems for lifting or transferring water from cesspools containing solids up to 108 mm in size. The cover, motor body, hydraulic body and impeller are made of cast iron. Double mechanical seal: carbon/steel in oil chamber on the motor side, silicon/silicon on the pump side. Dry motor, asynchronous type, watertight. The rotor is mounted on ball bearings that guarantee silent operation and durability. Available in the standard version: water sensor for the oil chamber and thermal protection housed in the motor windings. Maximum immersion depth 20 metres (with cable of appropriate length).

Powerful submersible pumps for draining and emptying, for use in domestic and residential applications. The use of corrosion and oxidation resistant materials makes them suitable for pumping dirty water. Motor with thermal overheating protection. Wear-resistant motor shaft and impeller. Very efficient motor cooling, allowing the pump to also be used only partially submerged. Automatic version with float switch for automatic pump start and stop, or manual version. Fitted with power input cable with plug, 3-level connector. Check valve to be purchased separately.

Submersible centrifugal pumps made of stainless steel with vortex impeller made of microcast steel. They are suitable for lifting sewage water and in general waste water containing solids with a maximum diameter of 50 mm. Insulating rubber covered handle. AISI 316 stainless steel motor shaft. They have double mechanical seal with interposed oil chamber (non-toxic oil) in carbon-alumina on the motor side, and silicon carbide/silicon carbide on the pump side. The seal cover, motor casing, pump body, cover and handle are made of stainless steel. They are fitted with dry, asynchronous and waterproof motor, cooled by the pumped liquid. Rotor running on permanently lubricated ball bearings, oversized and selected to ensure low noise and durability. Thermal-overload protection provided as standard for the single-phase version, while for the three-phase version it is the responsibility of the user. Permanently connected capacitor in the single-phase version. Construction according to CEI 2-3 / CEI 61-69 (EN 60335-2-41). The maximum ambient temperature for using Feka VS is +40°C with the motor above water. Continuous service with liquid temperature +35°C and completely submerged pump.

Submersible pump for lifting and redirecting waste water in civil and commercial applications. Certification according to the EN 12050-2 waste water standard. FXC is suitable for effluents and waste water without long fibres, rainwater and ground water. The pump is also suitable for draining areas subject to flooding, when high flow rates are required. Suitable for fixed installations with a coupling device, or mobile installations if placed directly on the bottom of the tank. Channel impeller with a free passage of 50 millimetres and anti-seizing system. Double mechanical seal in silicon carbide completely protected in an oil chamber not in contact with the pumped liquid. Motor shaft in AISI 304 stainless steel, resin-coated cable gland, quick-coupling power input cable. The reduced dimensions and the delivery ports both flanged and threaded make it ideal for replacements. Designed for fast maintenance thanks to a construction solution that provides easy access to the main components of the pump. Single-phase versions with integrated capacitor, available with float for automatic operation (MA) with powers up to 1,5 kW. In the three-phase versions, protection is the responsibility of the user. Maximum dry run time: 10 min. ATEX version available for use in potentially explosive environments. (ATEX certifications: II2G Ex db IIB T4 GB). Special options available on request: cable lengths (20 m or 50 m), frequency (60Hz), different voltages.

Submersible pumps suitable for pumping dirty water, pre-treated sewage, activated sludge and clarified waste water from both private and commercial dwellings, in accordance with European standard EN 12050-1. It has an open, two-blade, cast-iron channel impeller, making it suitable for use with dirty liquids containing solids free of long fibres with a tendency to lint. Ideal where a high flow rate is required. Double cartridge mechanical seal as standard in SiC/SiC silicon carbide on the hydraulics side and SiC/C silicon carbide on the motor side, independent of the rotation direction. Discharge flange available in DN65, DN80, DN100 versions according to EN 1092-1. High efficiency three-phase asynchronous motor with squirrel cage rotor, efficiency class IE3. Suitable for use with liquids with pH between 6.5 and 12. Maximum number of starts per hour: 20. S1 motor for fully submerged continuous operation or S3 for discontinuous operation with minimum immersion levels. Water infiltration sensor in oil chamber, capable of indicating water infiltrations through the mechanical seal (Optional). Overtemperature sensors in the motor windings with intervention threshold at 150°C. Long-life lubricated bearings for a calculated minimum useful life of 50,000 hours. Stainless steel motor shaft, designed with high fatigue strength. Nominal power from 1.1 kW to 11 kW. ATEX version available for use in potentially explosive environments. Maximum installation depth: 20 metres (with cable of appropriate length). For use at liquid temperatures above +40°C, please contact the sales office.

Submersible pump for draining waste water in civil and commercial applications. It’s certified to European Union standard EN 12050-1, which applies to lifting systems for waste water containing faecal matter in buildings and building sites. Pump suitable for fixed installations with coupling device or mobile if placed directly on the bottom of the tank. Thanks to its high-efficiency super vortex impeller with integral free passage, Feka FXV is suitable for use with fluids containing long-fibre coarse solids, gases and slurries. AISI 304 motor shaft and resin-coated cable gland with quick coupling. Feka FXV can deliver high flow rates. Double mechanical seal in silicon carbide completely protected in an oil chamber and not in contact with the pumped liquid. Resin-coated quick-connect cable gland. Ideal pump for replacements, due to its small footprint and both flanged and threaded delivery ports. Designed to allow quick maintenance, thanks to a construction solution that provides easy access to the main components of the pump. Single-phase versions with integrated capacitor, available with float for automatic operation (MA) with powers up to 1,5 kW. In the three-phase versions, protection is the responsibility of the user. Maximum dry run time: 10 min. ATEX version available for use in potentially explosive environments (ATEX certifications: II2G Ex db IIB T4 GB). Special options available on request: cable lengths (20 m or 50 m), frequency (60Hz), different voltages.

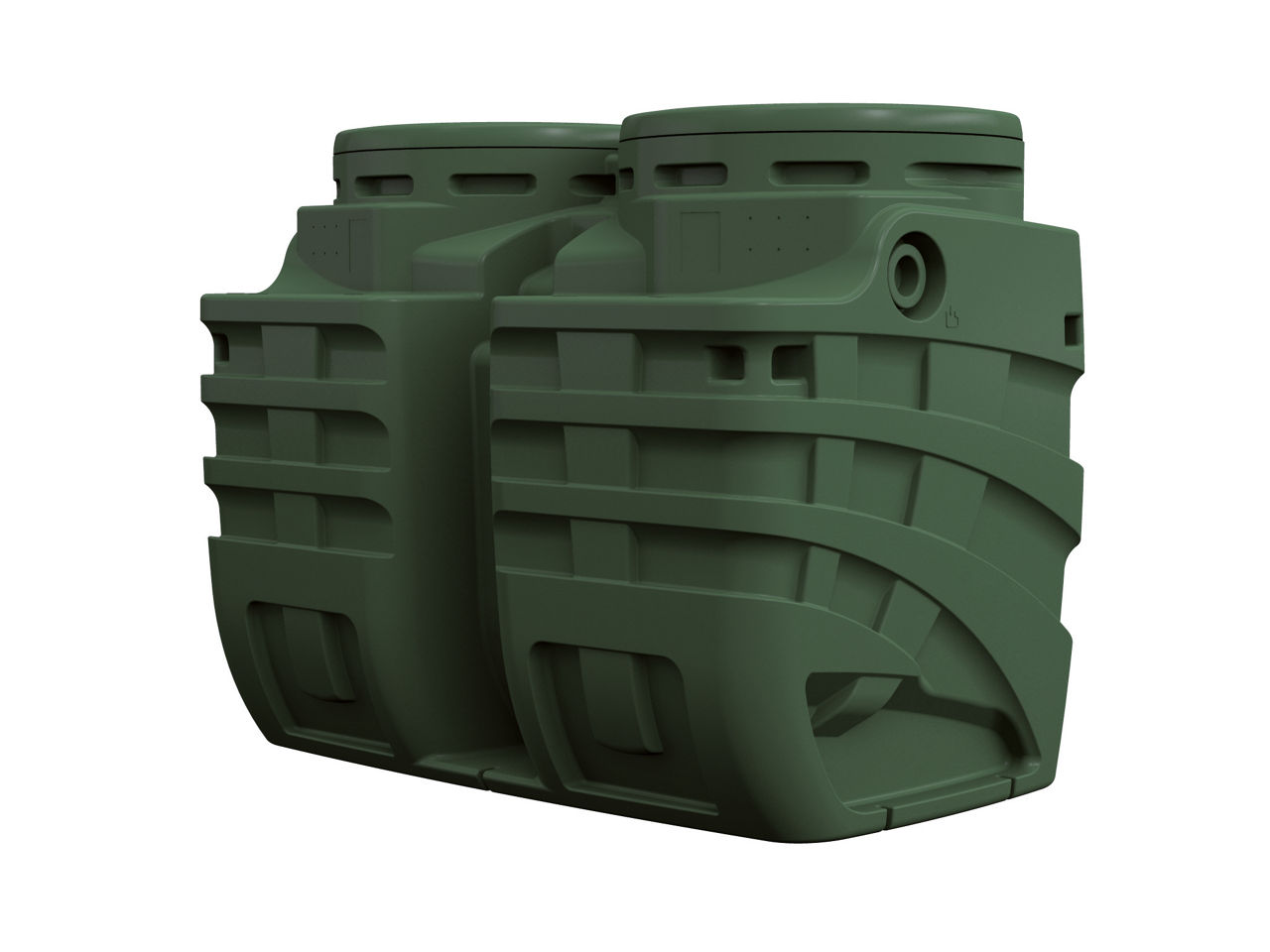

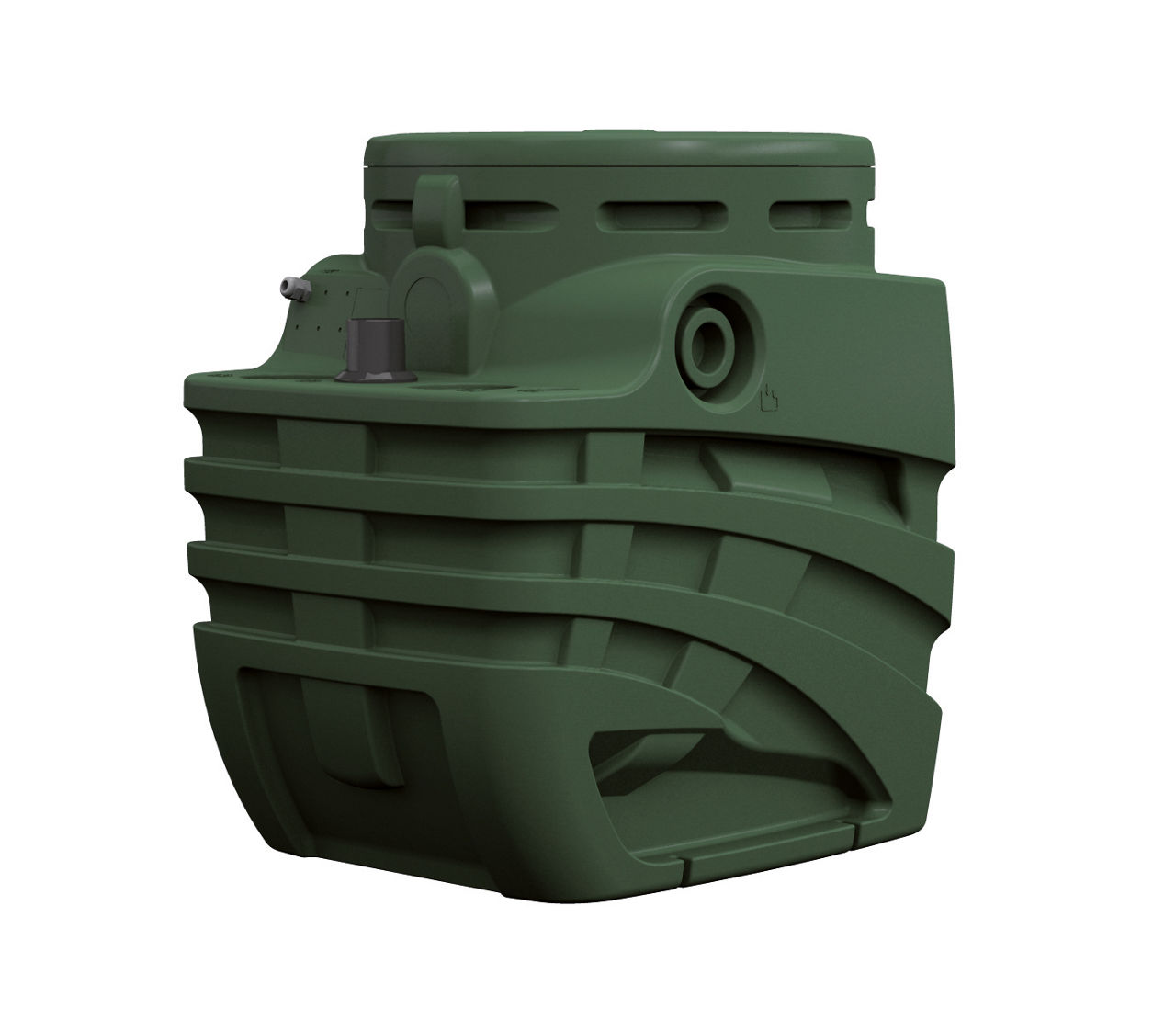

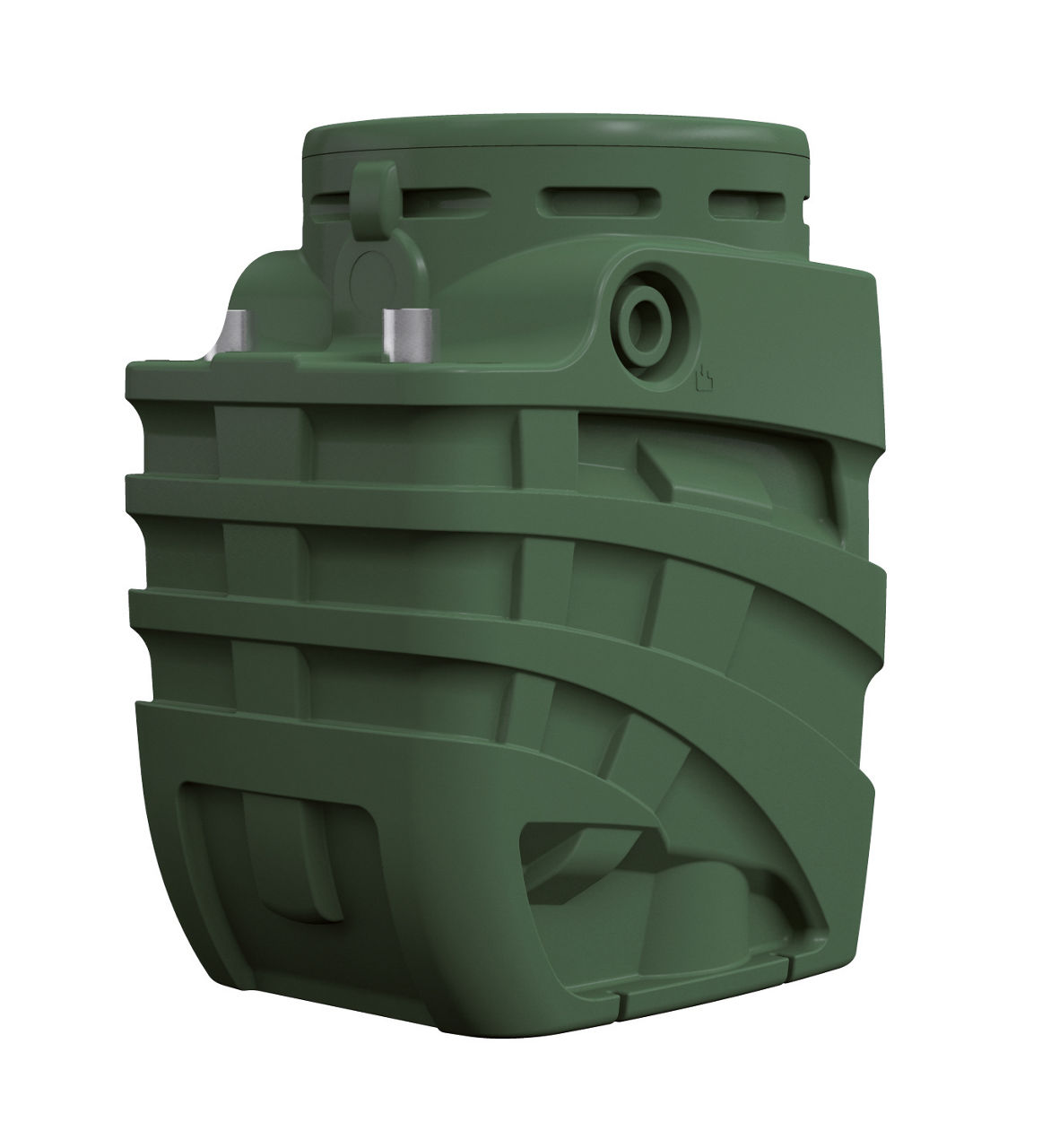

Collection tanks for domestic waste water from various types of drains or rainwater and infiltration drains, for installations located below the sewer network, such as garages or basements, when the same cannot be reached by gravity. The pump installed inside the tank allows the water to be pumped into the sewer network. The tank offers numerous possibilities for connecting inlet, outlet and ventilation pipes, allowing correct use even in limited spaces. A grinding pump for breaking down foreign bodies can also be installed inside, capable of grinding foreign bodies contained in the liquid and eject them to long distances. The FEKABOX range is ready for the use of one or two single-phase non-automatic pumps, or three-phase without float, which must be ordered separately, in conjunction with the control panel.

COMPONENTS INCLUDED:

• 2 DSD2"" lifting devices and rotation prevention bracket for FEKA VS

• 6 cable glands for double pump and floats

• 2 FEKA VS float cable stop kits

• 3 floats and alarm float support

Materials: LLDPE

Collection tanks for domestic waste water from various types of drains or rainwater and infiltration drains, for installations located below the sewer network, such as garages or basements, when the same cannot be reached by gravity. The pump installed inside the tank allows the water to be pumped into the sewer network. The tank offers numerous possibilities for connecting inlet, outlet and ventilation pipes, allowing correct use even in limited spaces. A grinding pump for breaking down foreign bodies can also be installed inside, capable of grinding foreign bodies contained in the liquid and eject them to long distances. The FEKABOX range is ready for the use of one or two single-phase non-automatic pumps, or three-phase without float, which must be ordered separately, in conjunction with the control panel.

COMPONENTS INCLUDED:

• 2 DSD2"" lifting devices and rotation prevention bracket for FEKA VS

• 6 cable glands for double pump and floats

• 2 FEKA VS float cable stop kits

• 3 floats and alarm float support

Materials: LLDPE

Collection tanks for domestic waste water from various types of drains or rainwater and infiltration drains, for installations located below the sewer network, such as garages or basements, when the same cannot be reached by gravity. The pump installed inside the tank allows the water to be pumped into the sewer network. The tank offers numerous possibilities for connecting inlet, outlet and ventilation pipes, allowing correct use even in limited spaces. A grinding pump for breaking down foreign bodies can also be installed inside, capable of grinding foreign bodies contained in the liquid and eject them to long distances. The FEKABOX range is ready for the use of one or two single-phase non-automatic pumps, or three-phase without float, which must be ordered separately, in conjunction with the control panel.

COMPONENTS INCLUDED:

• 2 DSD2"" lifting devices and rotation prevention bracket for FEKA VS

• 6 cable glands for double pump and floats

• 2 FEKA VS float cable stop kits

• 3 floats and alarm float support

Materials: LLDPE

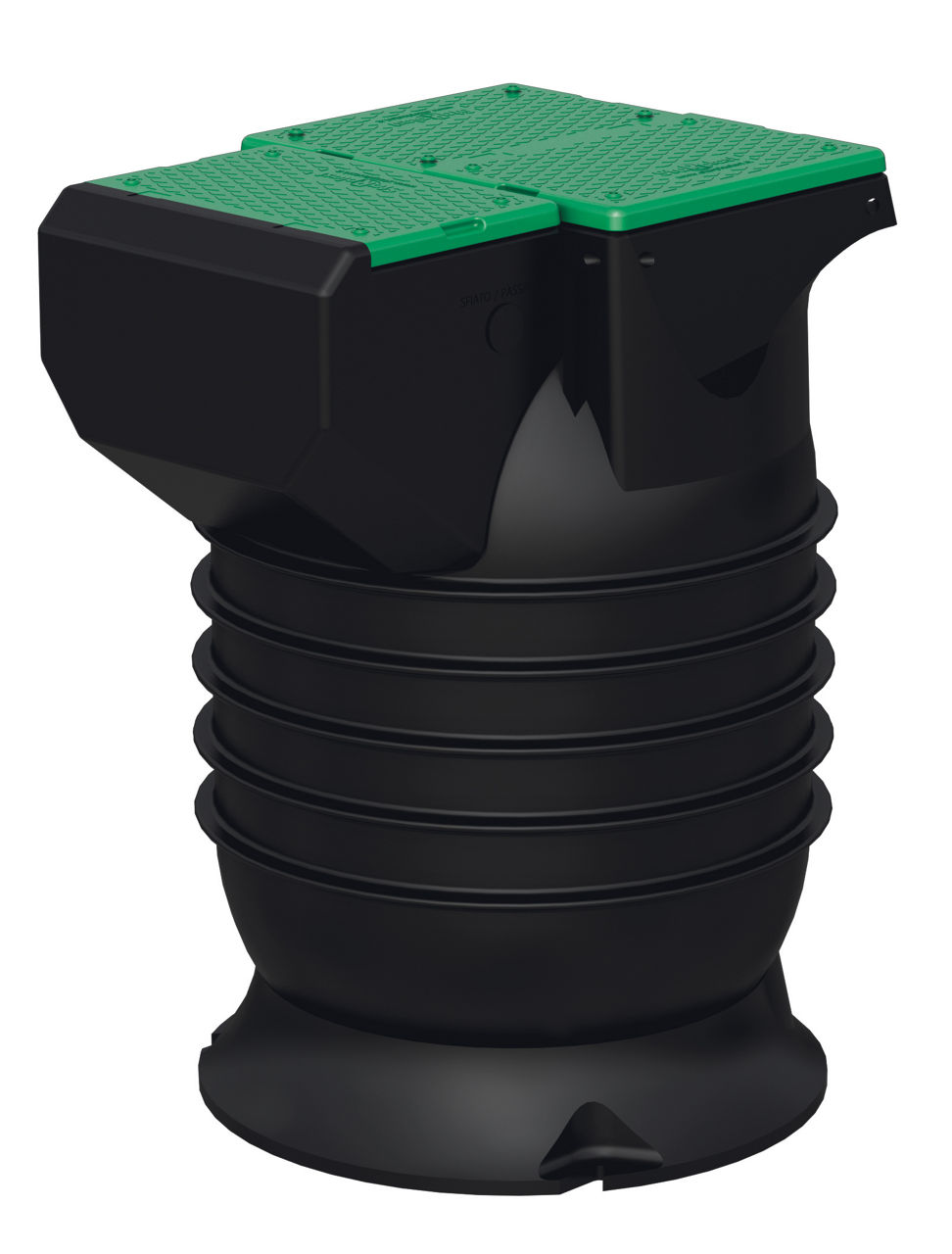

Automatic collection and lifting stations suitable for lifting drainage and rain water, as well as civil and industrial waste water. They consist of a cylindrical polyethylene monobloc, and an appropriately shaped bottom for the housing of the pumps and for avoiding water stagnation. The upper rectangular opening has polyethylene covers with locking system and smell prevention seals. Tank available in capacities from 1200 l to 3600 l. The tank may also be supplied with valve operation chamber with two gate valves and two check valves. The station is ready for the use of two sewage water pumps, or non-automatic single-phase draining pumps, or three-phase pumps with delivery diameter from DN50 to DN80. The pumps must be ordered separately in combination with the control panel. For DN50 tanks, the coupling foot is included with Feka VS (accessory 109530080). To use the FX model with these tanks, accessory 60196199 must be purchased separately.

For DN65 tanks, the coupling foot is included with FX and FK (accessory 60167993).
For DN80 tanks, the coupling foot is included with FX and FK (accessory 60167994).
The GR version has a filtering grille and an anti-intrusion grille. The CV version has a valve chamber.
