Submersible pump for draining drainage water and rain water in domestic and residential applications It is available in automatic version with built-in float switch, or in manual start version. Its typical application is to empty garages and floors to prevent flooding. It can also be used for emptying tanks or cisterns and as a portable pump in emergency situations where water needs to be drained from flooded rooms. The Nova range has been redesigned on the occasion of the forty years of marketing, making it even more reliable, resistant and ergonomic. It has a new treated cable and a new, more compact and efficient motor. The pump body, the impeller and the suction grid are in technopolymer, the motor shaft is in AISI 431 stainless steel, suitable for lightly salty water. The impeller is treated to prevent corrosion. Nova is robust and reliable, also thanks to the triple ring seal in oil bath and the submersible continuous duty asynchronous motor. The stator is inside a hermetic stainless steel casing and the rotor is mounted on oversized ball bearings. Built-in thermal protection in all single-phase versions. Maximum dry run time: 1 minute. In compliance with European standard EN 60335-2-41, the 10-meter power cable is mandatory for the pump in external use.
Minimum draught depth:

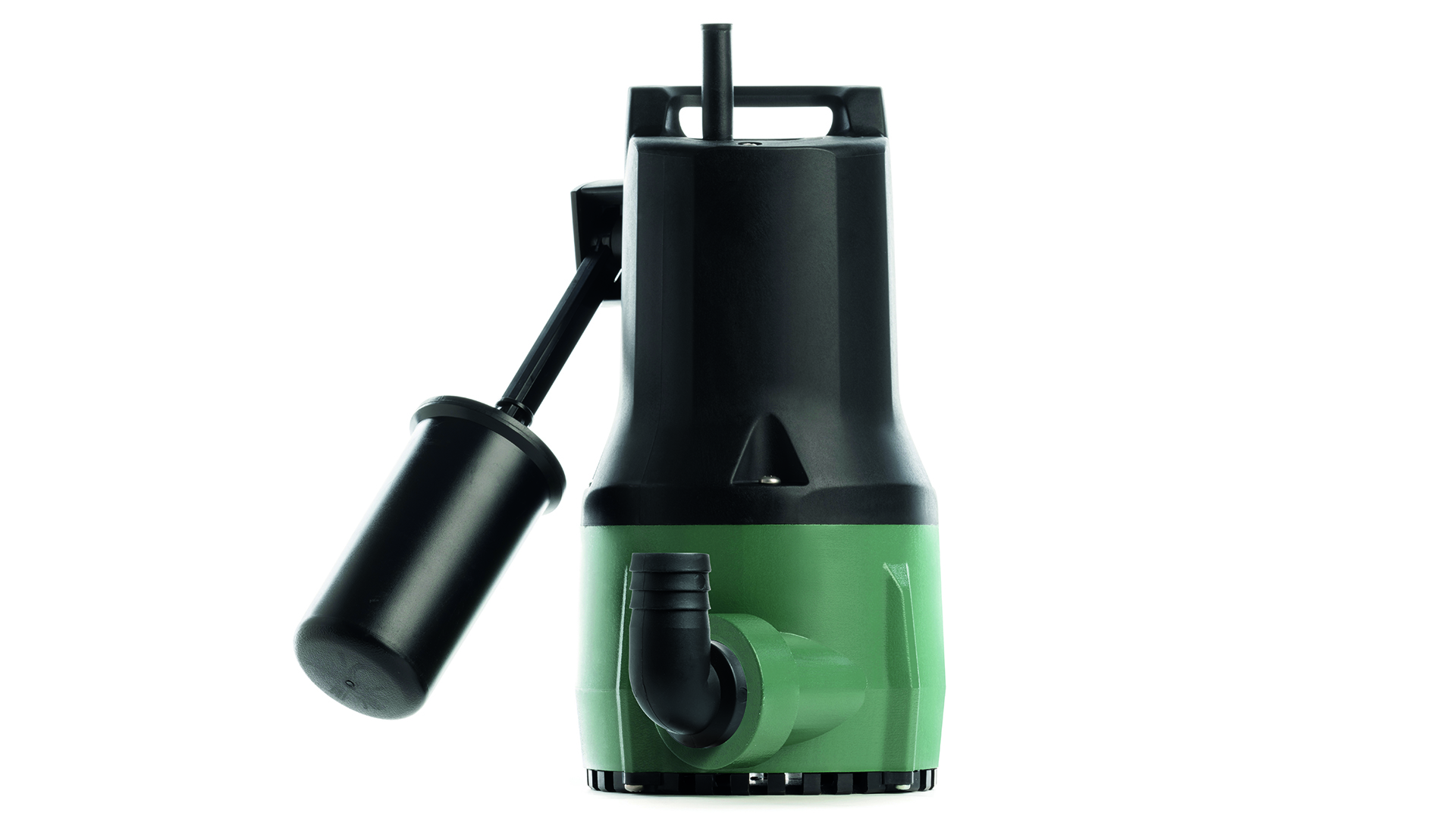

NOVA 180 MA: 90 mm

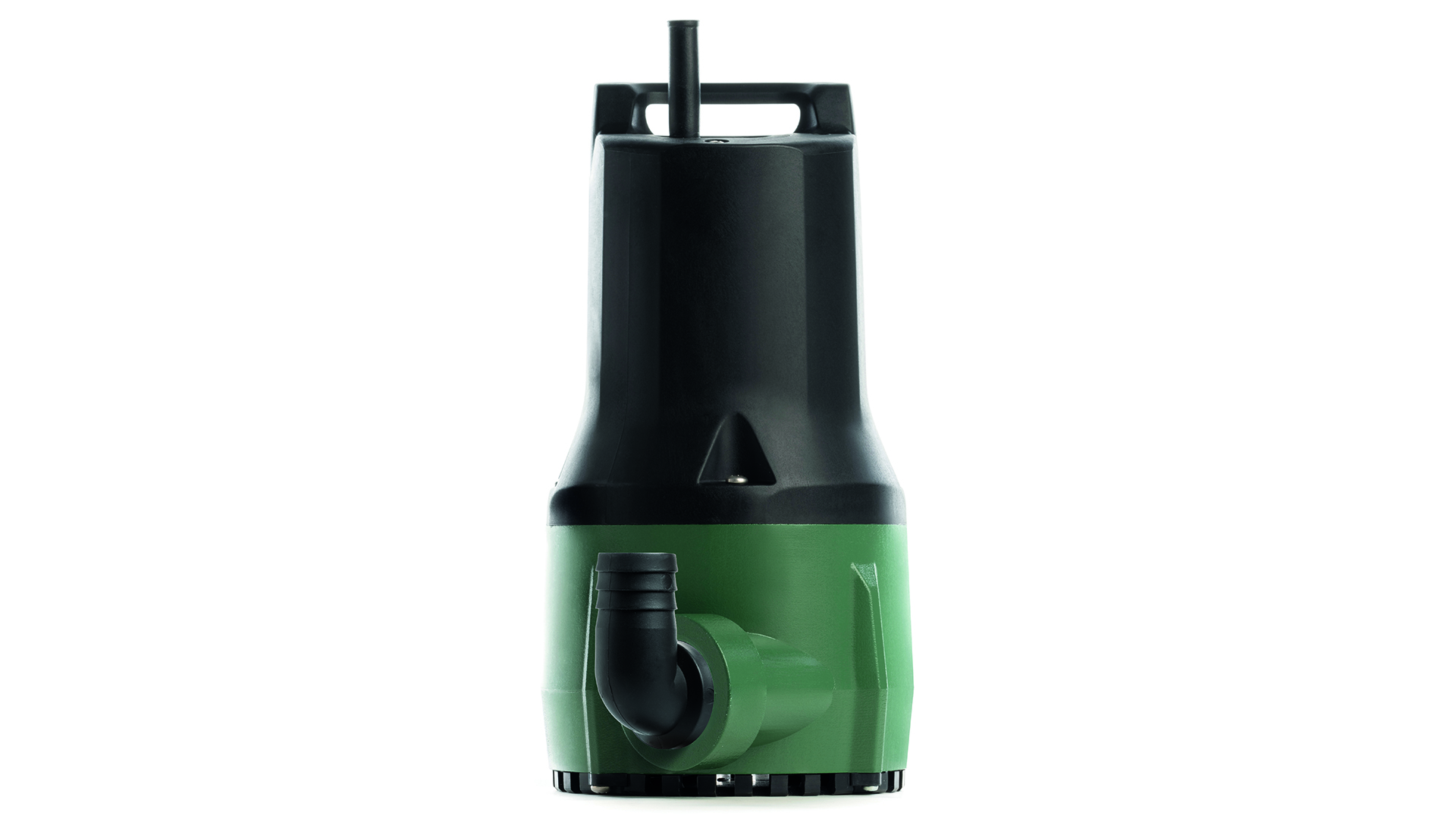

NOVA 180 M-NA: 8 mm
NOVA 200 M-NA: 8 mm
NOVA 300 MA: 100 mm
NOVA 300 M-NA: 13 mm

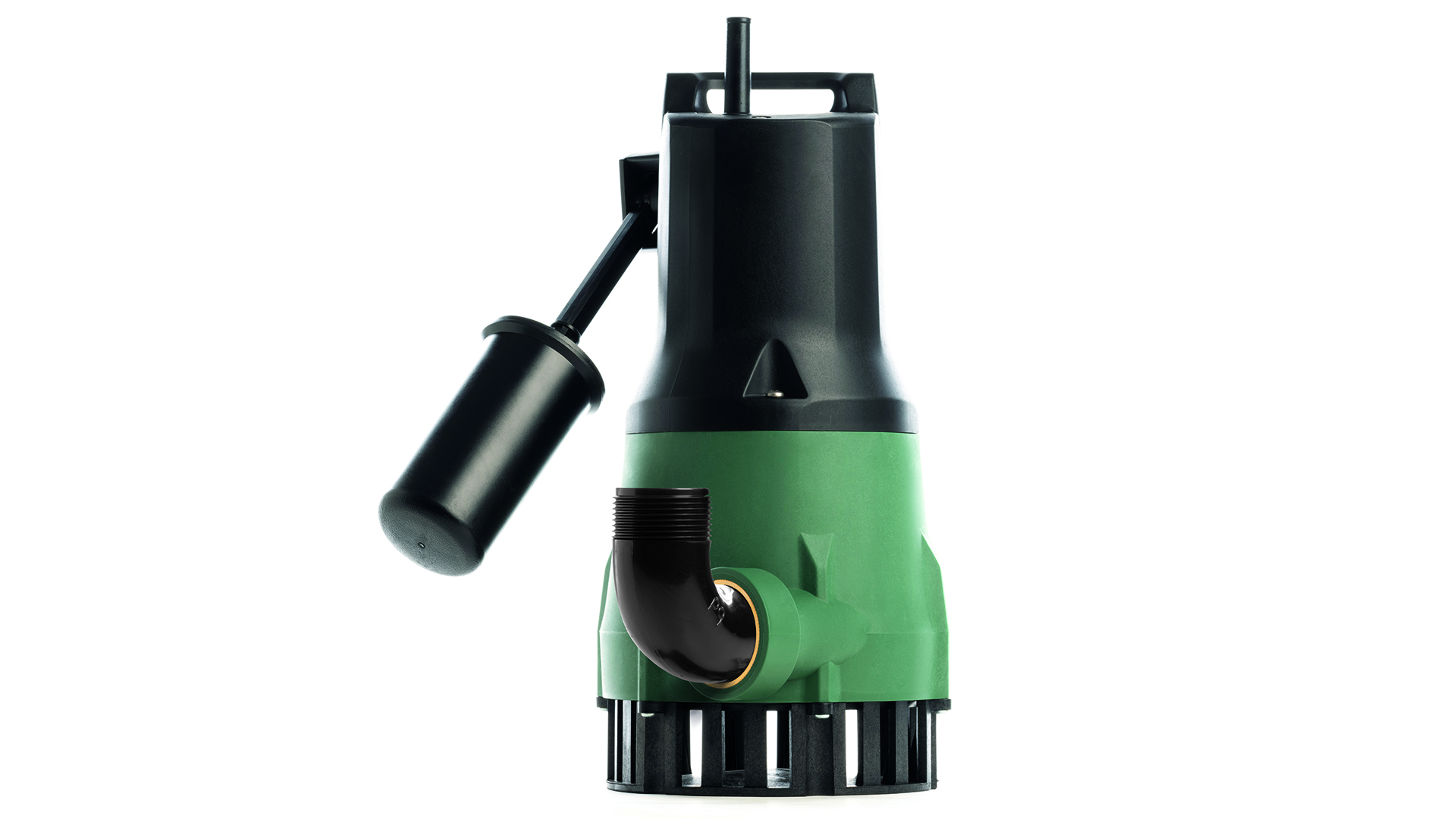

NOVA 600 MA: 150 mm

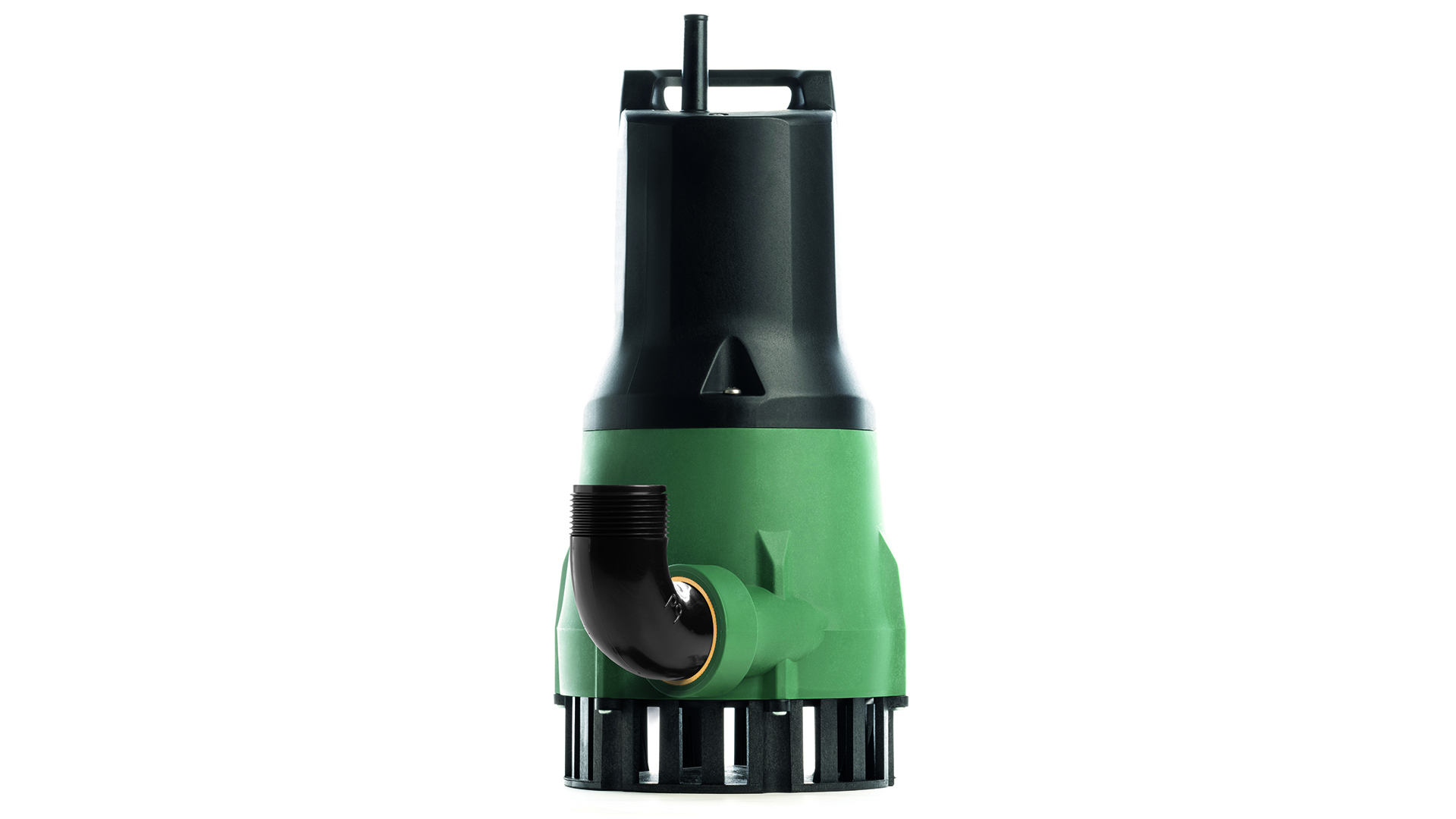

NOVA 600 M-NA: 30 mm
