EsyBox Diver

EsyBox Diver

EsyBox Diver

7" multi-stage electronic pump with variable speed drive for clean water designed for use in wells, tanks or cisterns. The pump can be used submerged, partially submerged or on the surface (with the DOC68 accessory, supplied separately). The pump is suitable for pressurization, rainwater re-use and gardening and irrigation activities in residential building service. The pump integrates the variable speed drive for operation according to the system requirements a non-return valve and a stainless steel handle for transport. The electronic operation also protects against dry running and the VSD saves energy. The suction height is adjustable from the bottom up to 8 cm. It is possible to connect a float and a level sensor without compromising the water tightness of the pump thanks to the NFC (Near Field Communication) pocket. Equipped with an internal expansion tank, the use of an additional expansion tank is superfluous. Wi-Fi connectivity as standard. The DConnect Box 2 is included, by downloading the DConnect app for Android or iOS you can control the pump from your smartphone. The pump is available in X version with 1" inlet and X kit which includes 1 meter suction hose and float to prevent the suction of impurities from the bottom. The whole pump is IP 68 certified, it can be used on the surface (under head). *On request it is available the certified version for drinkable water.

Cosa la rende unica

An entire product range

in a single solution

EsyBox Diver is a single model that can be combined with a range of dedicated accessories to create a complete family of submersible pumps. The result is maximum versatility: the Standard version for installation in tanks or wells, the Dry version for surface installation, and the X version for drawing cleaner water from wells.

diversa

Submerged, yet always within sight

EsyBox Diver comes with a portable display for monitoring and performance management: your smartphone paired with the H₂D app. This allows you to track energy consumption and pump activity in real time, remotely monitor water levels via the float switch, and detect potential malfunctions or shutdowns before they occur.

Mockup, using cell phone in a cafe coffee shop. Woman holding using smartphone with blank screen for display your graphic ads, mobile app. close-up ; Shutterstock ID 2461145677; purchase_order: sito; job: ; client: ; other:
EsyBox Max Video

Remote monitoring for pumps and systems

iF Design award 2021

When the iF DESIGN AWARD jury praised EsyBox Diver for its “appealing design” and “revolutionary approach to domestic water pressurization,” we knew they had captured exactly what makes it special. We couldn't agree more.

If design

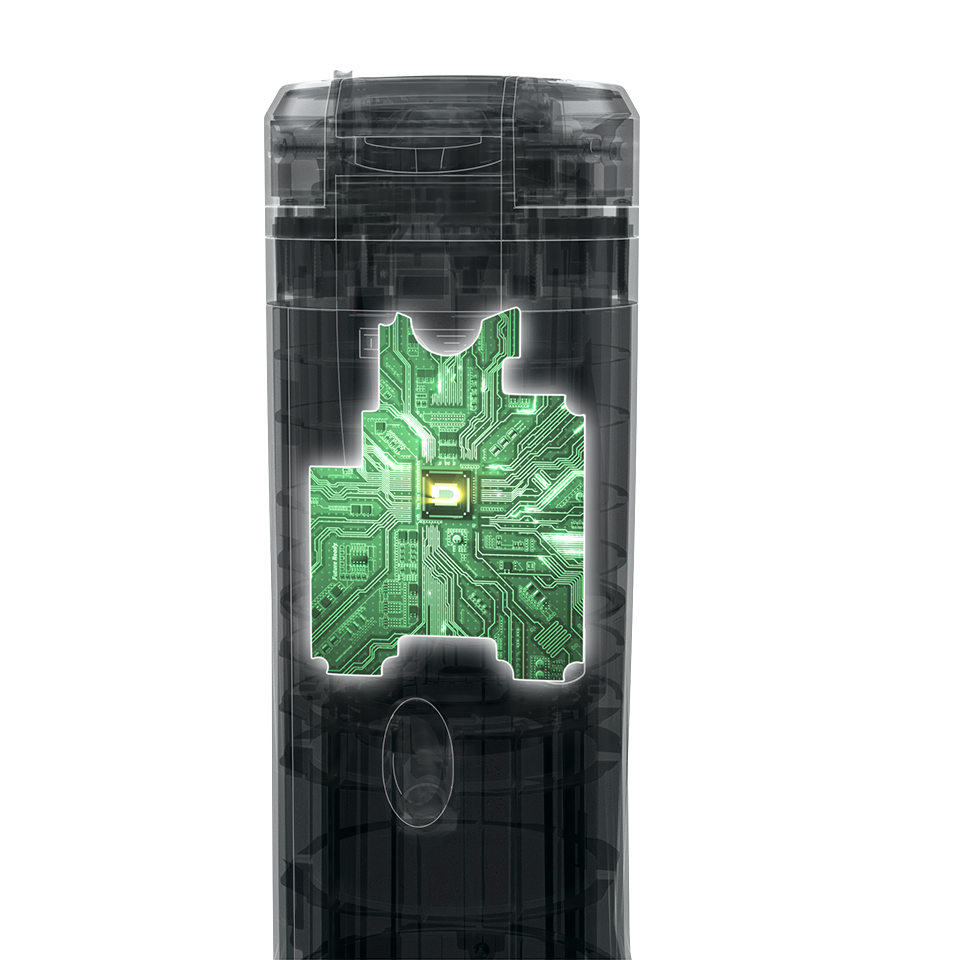

Inverter

Thanks to the inverter, the EsyBox Diver draws only the energy it needs, depending on water demand. This results in significant cost savings.

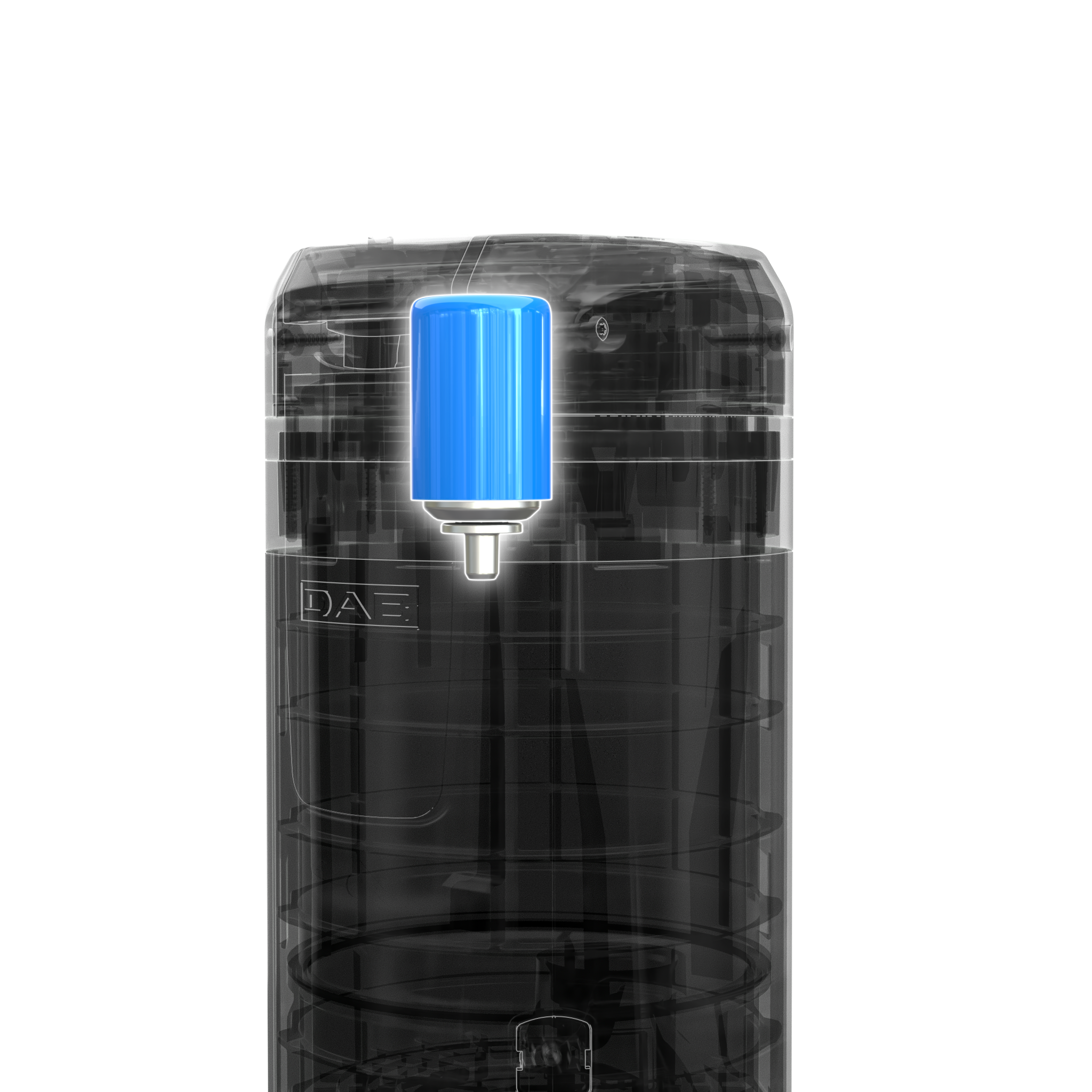

Expansion tank

The expansion tank dampens water hammer and extends the life of the pump; it makes installation quick and easy, keeps the system simpler and less bulky, and enhances long-term reliability.

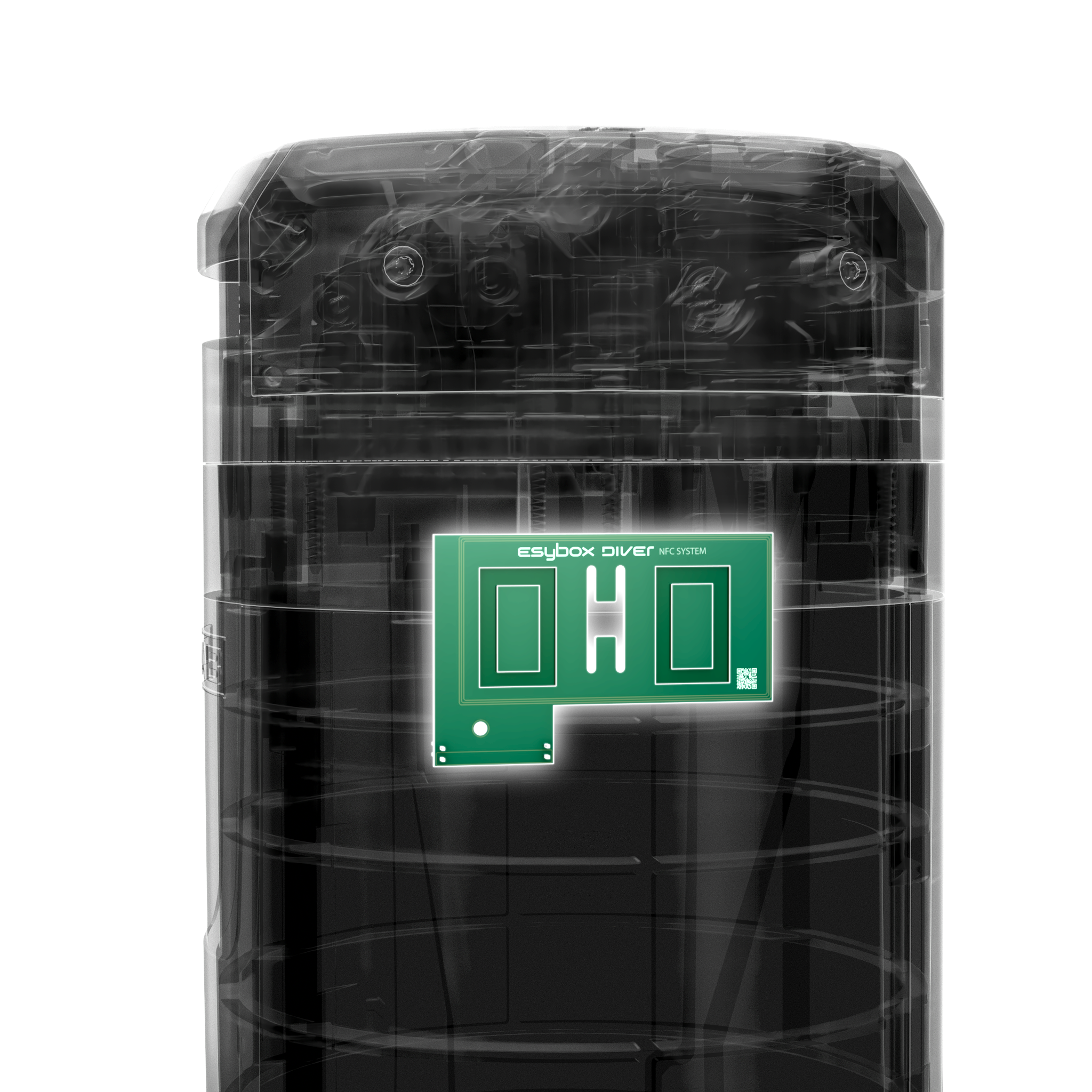

NFC Technology

NFC (Near Field Communication) – proximity communication – enables the pumps to be connected to the float and the level sensor without any additional wiring. The accessories can be fitted without the need to dismantle the pump housing. This makes monitoring quicker and more effective, and as there are no physical connections, there is no risk of water ingress.

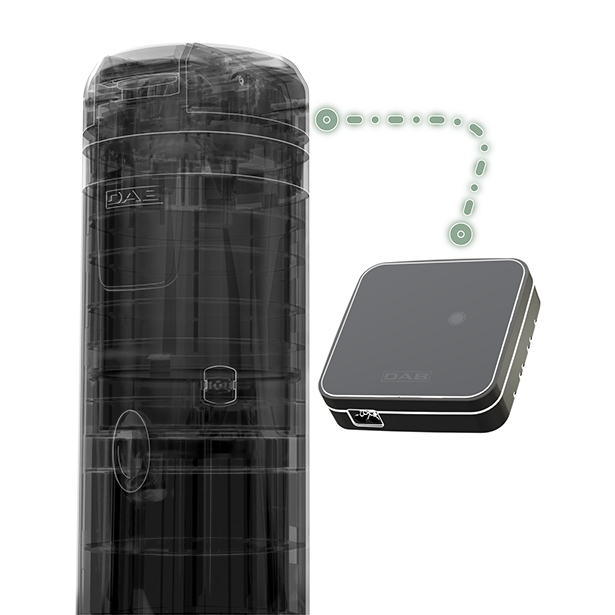

PLC technology

PLC (Power Line Communication) technology enables the DConnect Box 2 control device to be used without the need for additional wiring to the pump; data is transmitted via the existing mains supply.

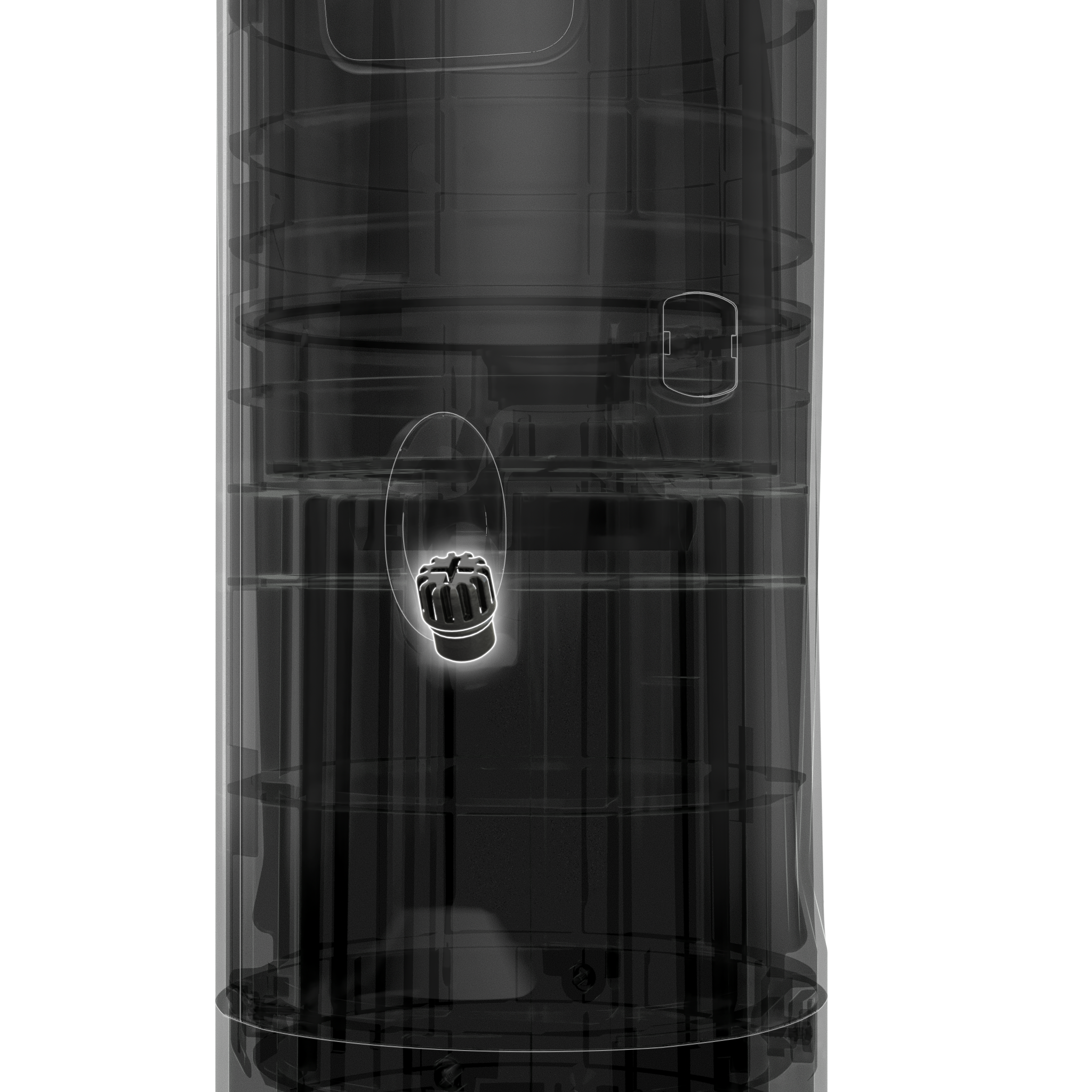

Vent valve

The vent valve ensures immediate priming on first installation and guarantees that the pump always operates correctly.

Technical specifications

7,2 m³/h

FLOW RATE

55 m

HEAD

From 0°C to +50°C

LIQUID TEMPERATURE

12 m

MAXIMUM DIVING DEPTH

12 m

MAXIMUM SUCTION HEIGHT

IP 68

PUMP PROTECTION CLASS

2 mm

FREE PASSAGE

1" 1/4

SUPPLY PIPE THREADING

15 m

POWER CABLE LENGTH

Discover the savings with Esybox Diver

Compared to a conventional pumping system without an inverter

They're not just accessories

Every accessory is designed to boost performance and unlock even greater system versatility.

DOC68
DOC68

DOC68 allows EsyBox Diver to be installed outdoors as a surface-mounted pump, with IP68 protection.

Art. 60192274
NFC
Float switch

Connects to the pump without direct wiring.

Art. 60184577
NFC sensor
Level Transducer

Enables water level monitoring in the tank via the app.

Art. 60184570
Kit aspirazione X
X-Version Suction Kit

Allows cleaner water to be drawn from wells and tanks.

Art. 60195974
