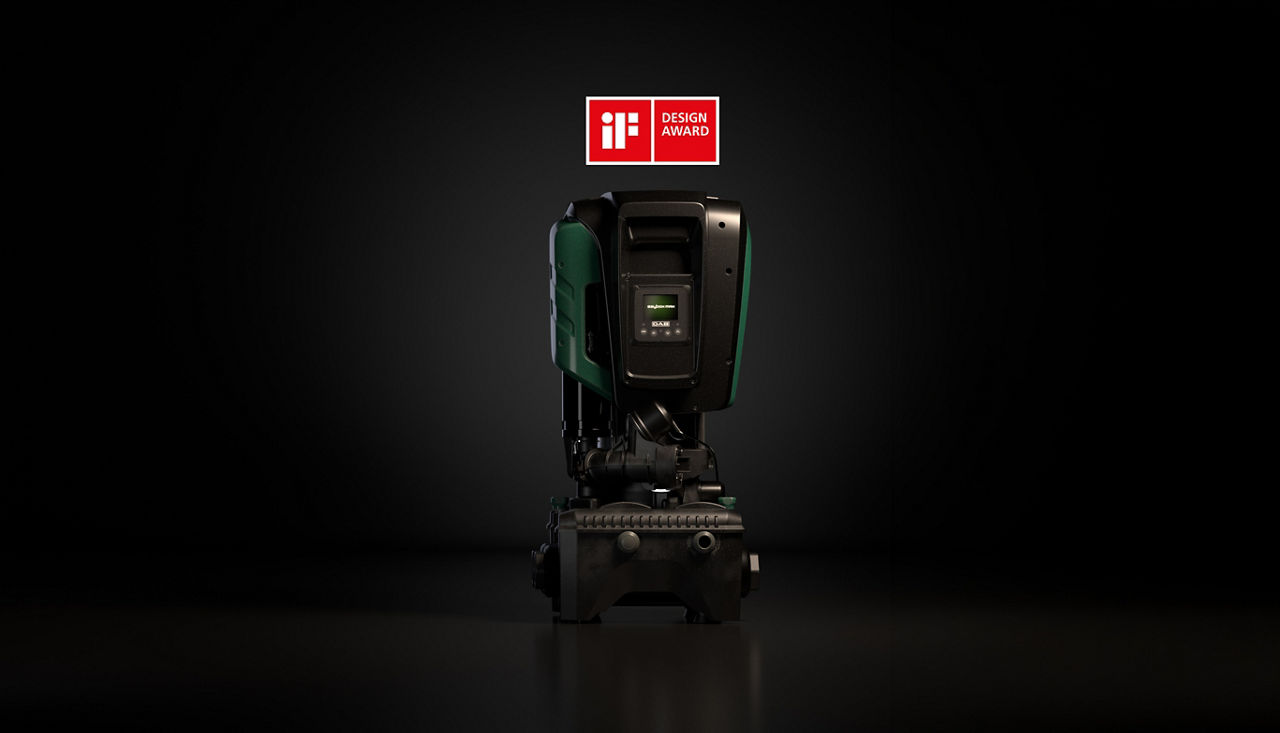

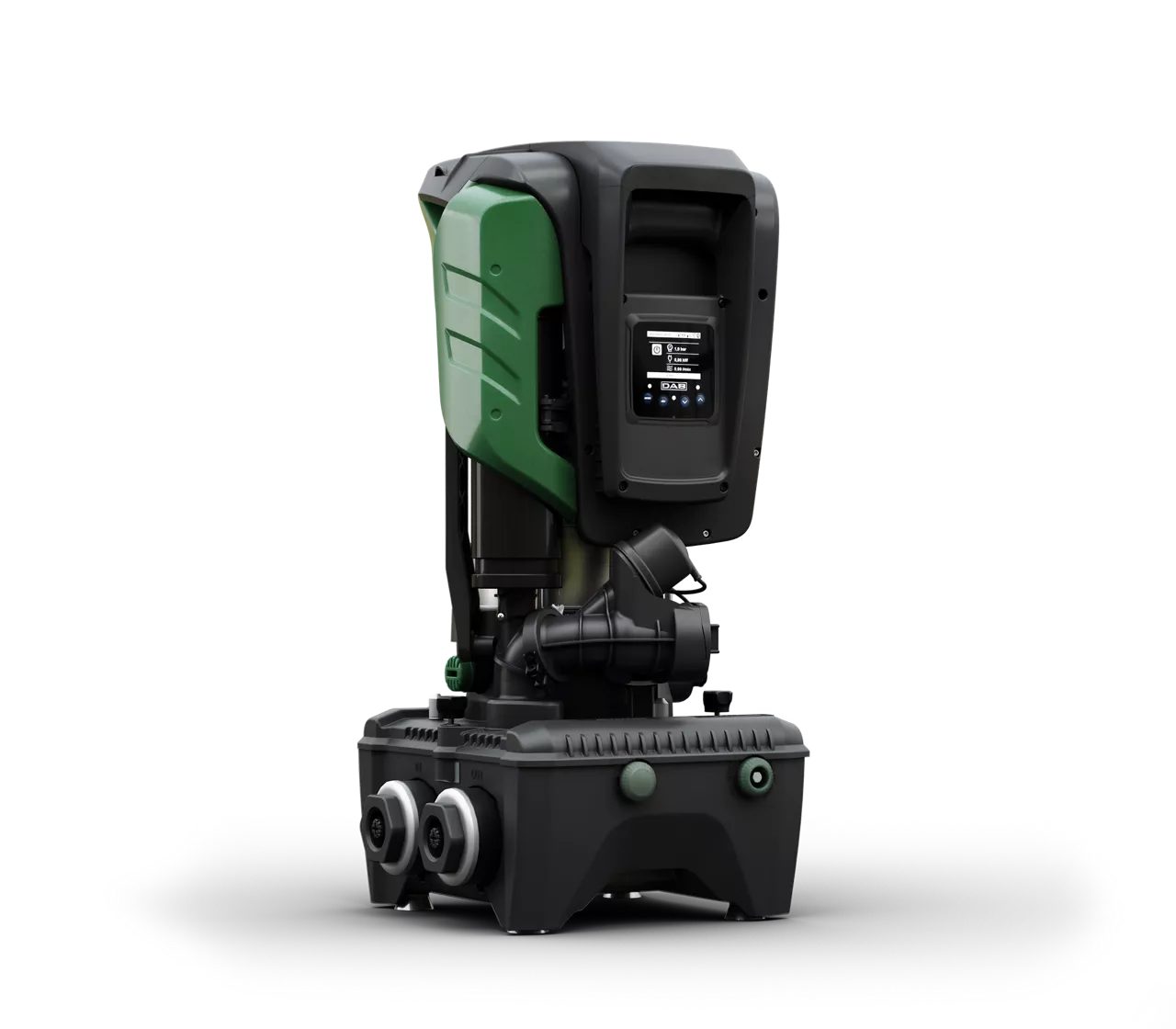

EsyBox Max
Integrated pumping system for water pressurization in commercial building service.
Available in two power sizes, the system is composed of modular elements that allow different configurations: single, double, triple or quadruple unit are possible, to cover the needs of medium/large condominiums and high buildings (even over 14 floors).
Each unit consists of the hydraulic connection base and the pumping unit which includes an electronic vertical multi-impeller pump, display, Wi-Fi module, pressure sensors, non-return valve on delivery and an expansion tank, all integrated.
The innovative support base of the pumping unit and the wireless communication between the pumps make it possible to assemble the unit directly at the installation site (O.S.A. concept) even by one person.
The variable frequency drive keeps the pressure constant by varying the number of the frequency of the motor according to the request and also thanks to the water-cooled permanent magnet motor it allows greater efficiency and energy savings.
The large display allows easy configuration of the operating parameters with the possibility of viewing them from a smartphone (via the DConnect APP) or remotely via the DConnect service. The expansion module (esy I / O, available as an accessory) gives the possibility to interface Esybox max with the BMS.
Best for the following applications
Water pressure booster
Rainwater harvesting
Livestock and fish farming
Landscaping
What Makes It Unique

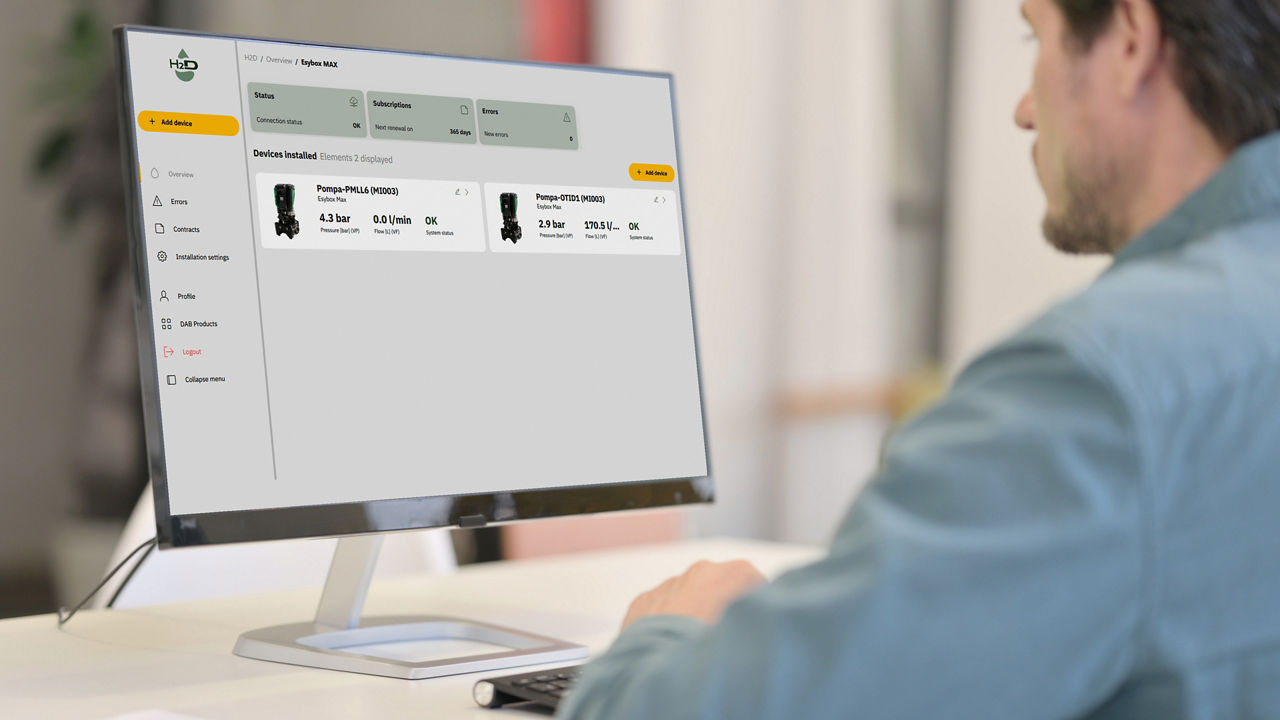

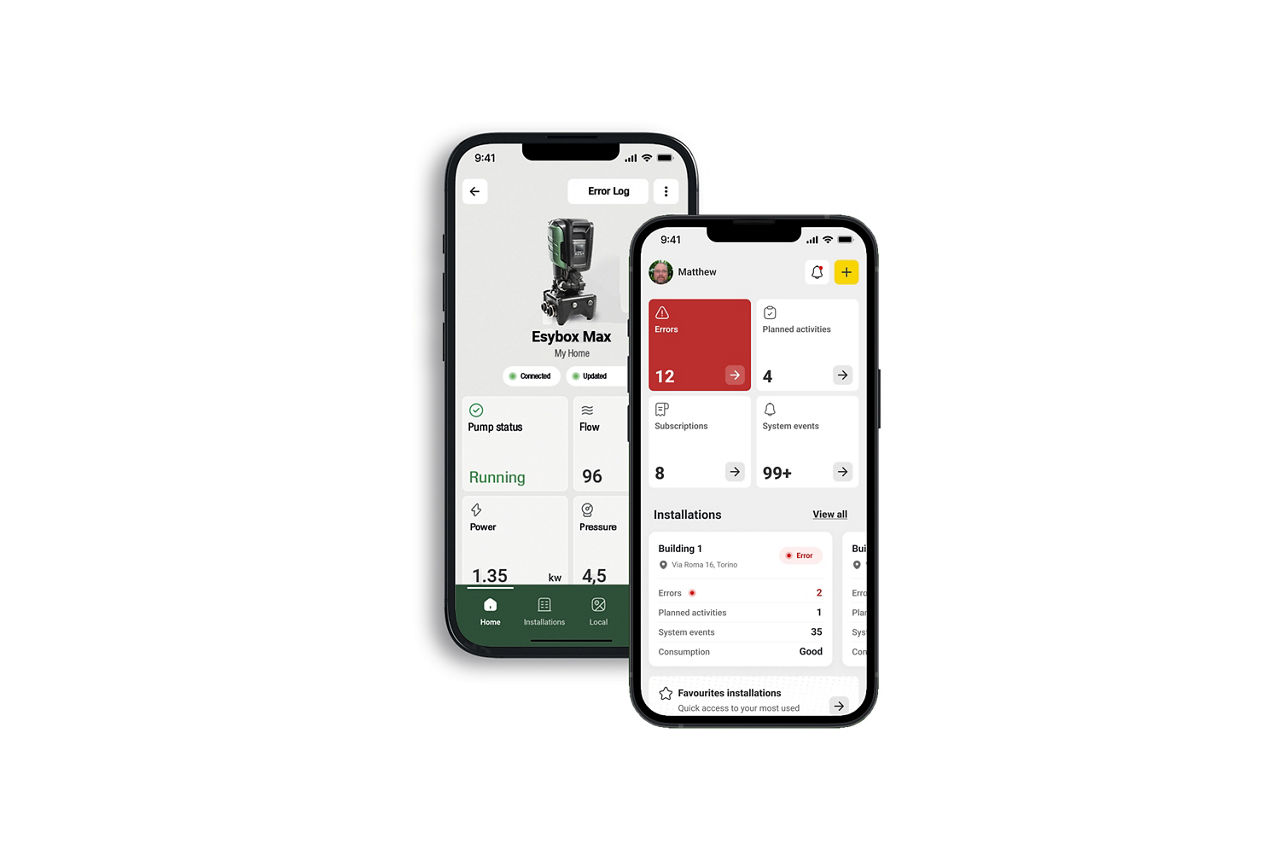

More control with H₂D
With H₂D, you can monitor all your systems remotely and in real time. Receive alerts about anomalies before they turn into failures, adjust parameters and configurations from anywhere, and plan on-site interventions knowing in advance what to expect. Fewer site visits, better customer service.

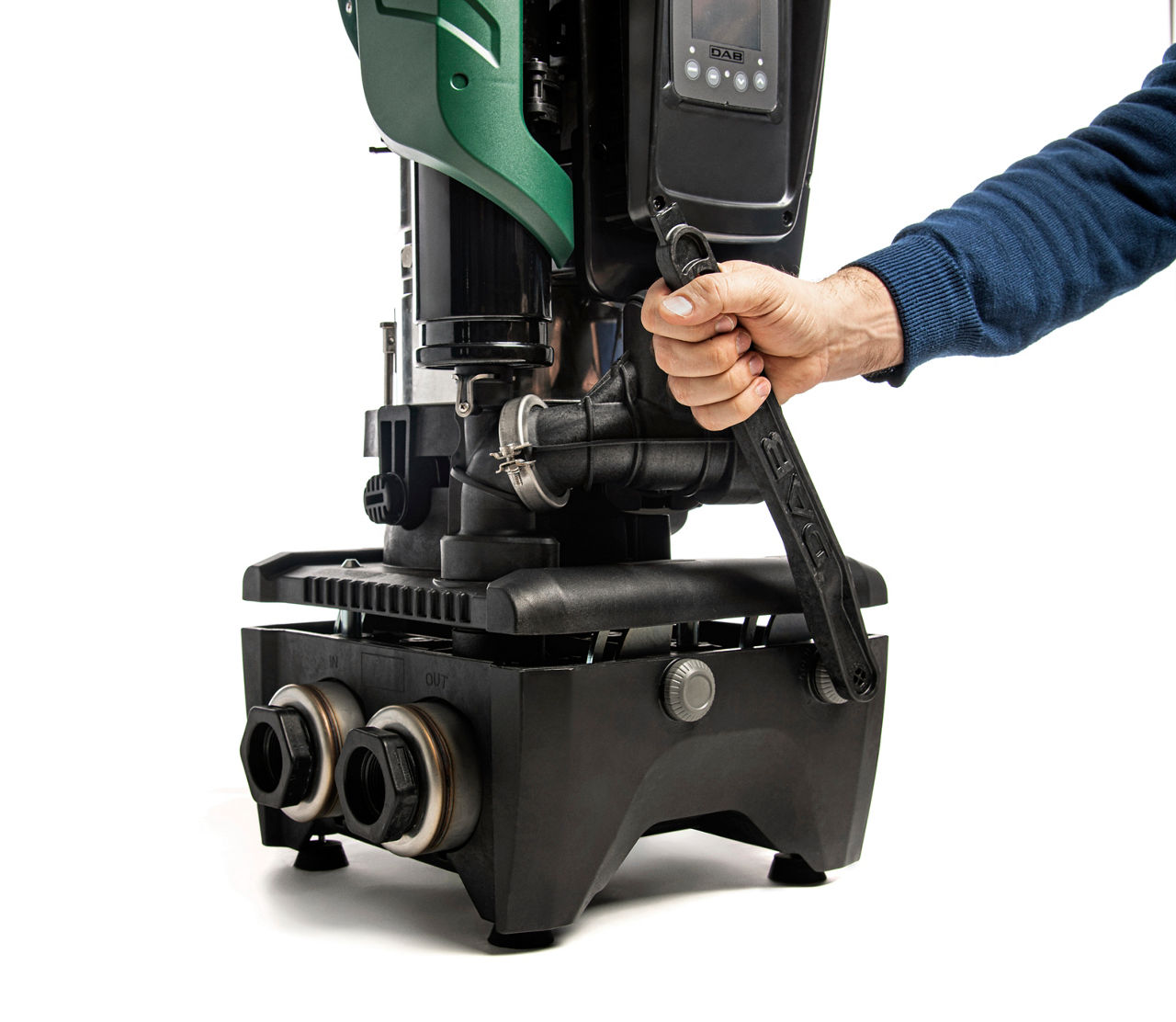

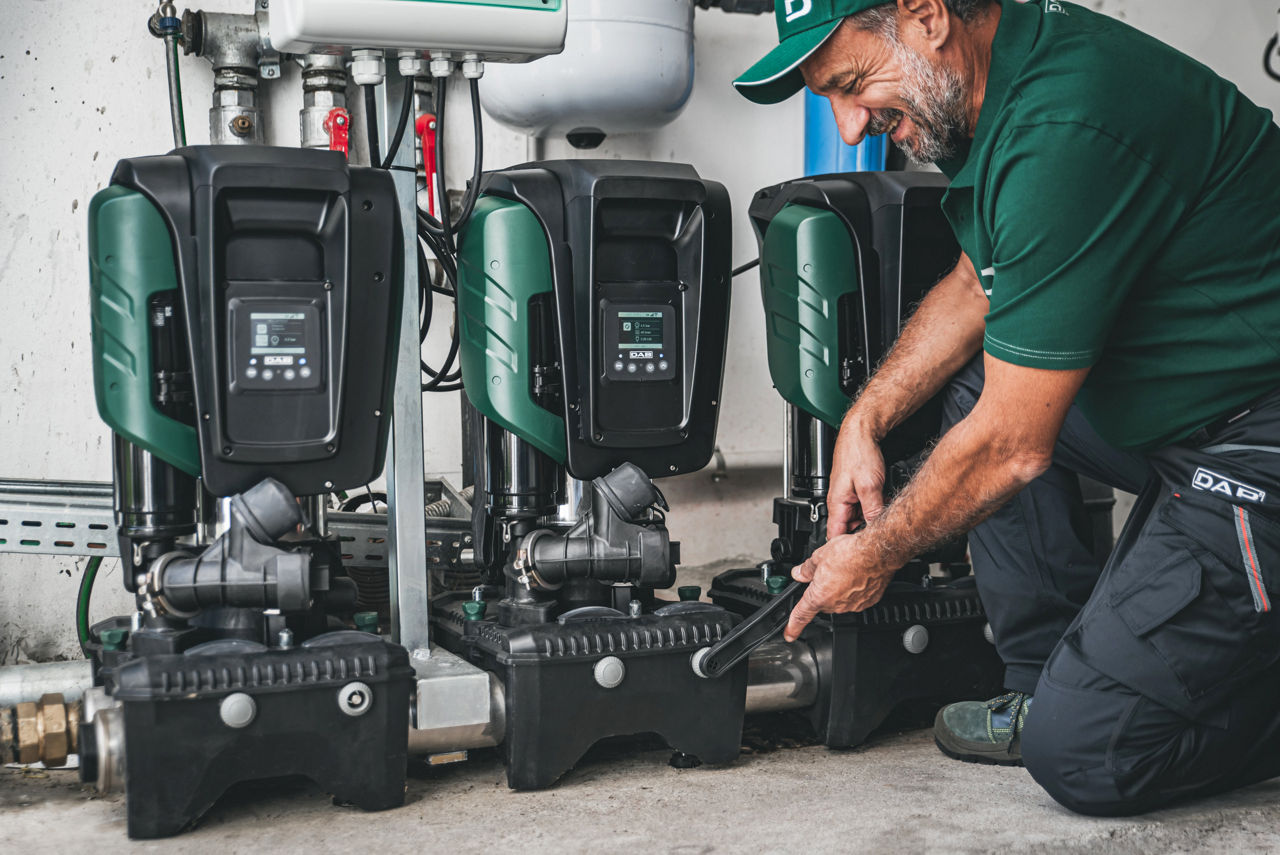

OSA - On Site Assembly
EsyBox Max is assembled on site, combining between 1 and 4 units depending on the system’s requirements. The right configuration always comes from what you see in front of you.
Modular and easy to handle
EsyBox Max is the largest model in the range, but you would hardly notice it during transport. Thanks to packaging with integrated handles, which is more compact and lighter than traditional solutions, each component can be transported and installed separately. As a result, even the tightest plant rooms are no longer a challenge.

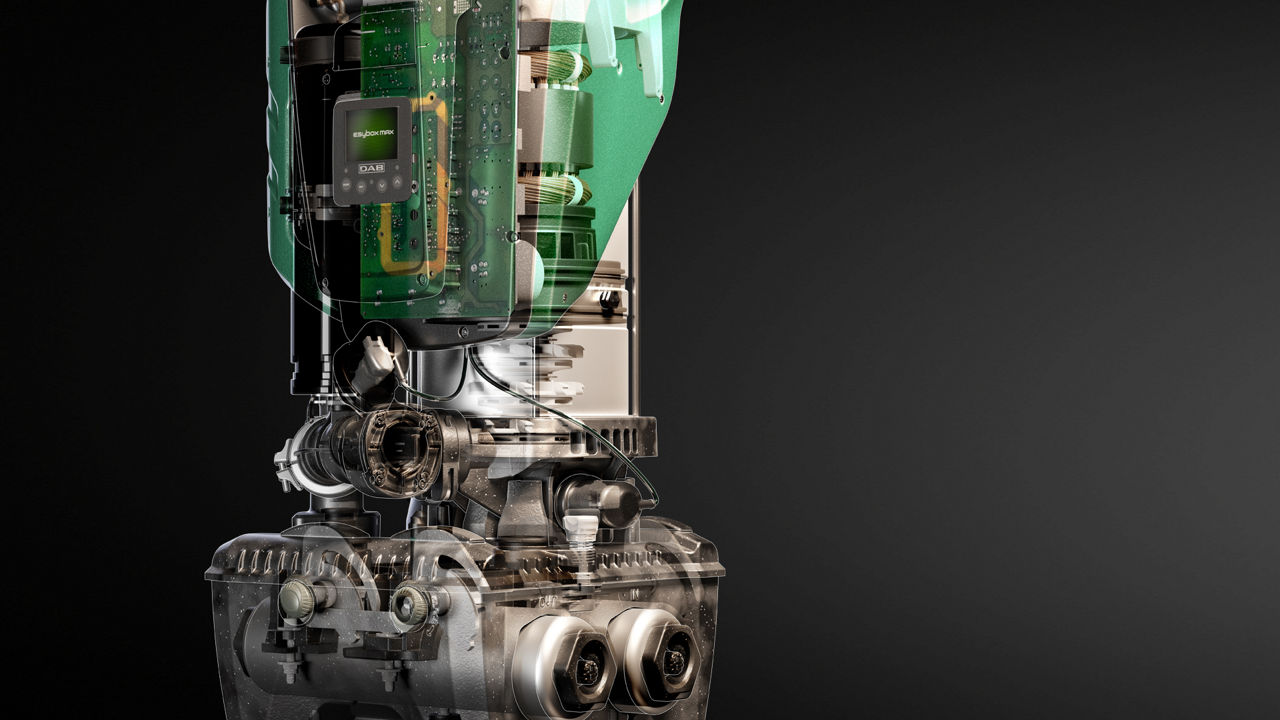

Efficient, quiet and connected
Integrated inverter, permanent magnet motor, and native Wi-Fi and Bluetooth connectivity make EsyBox Max a truly unique solution. The result is an always-connected system that intelligently manages energy consumption and operates with exceptionally quiet performance.
Remote monitoring for pumps and systems
- slide 1
- slide 2
- slide 3
- slide 4
- slide 5

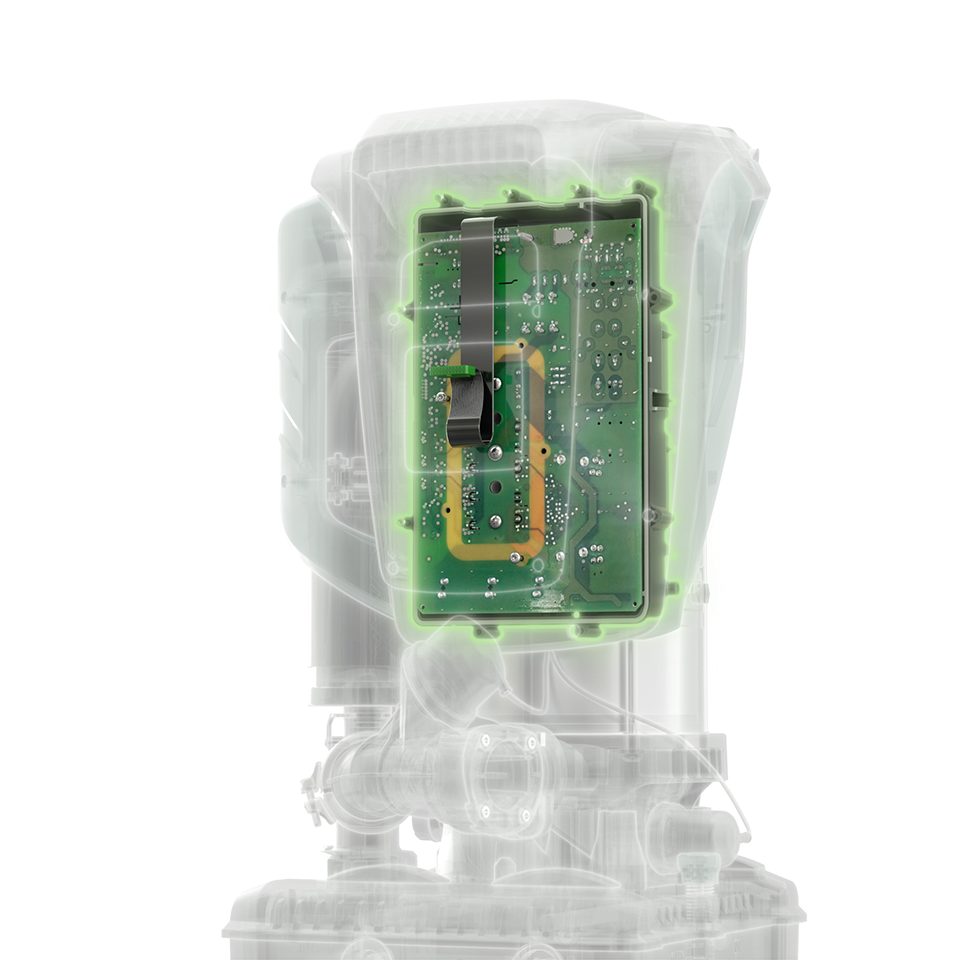

Inverter
It consumes only the energy required to meet water demand, resulting in significant cost savings.

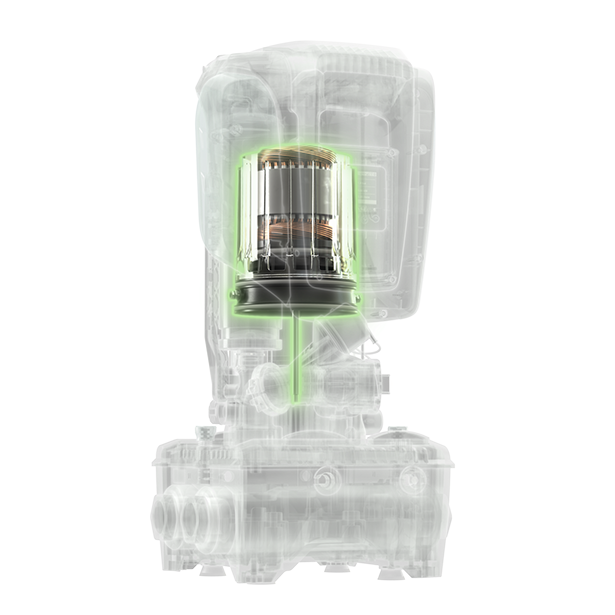

Permanent magnet motor
Water-cooled, it combines efficiency with quiet operation.
Native Wi-Fi and Bluetooth technologies
The pumps interface with one another, and the system connects and communicates with external devices efficiently, quickly and remotely. Configuration and monitoring are instant and in real time.

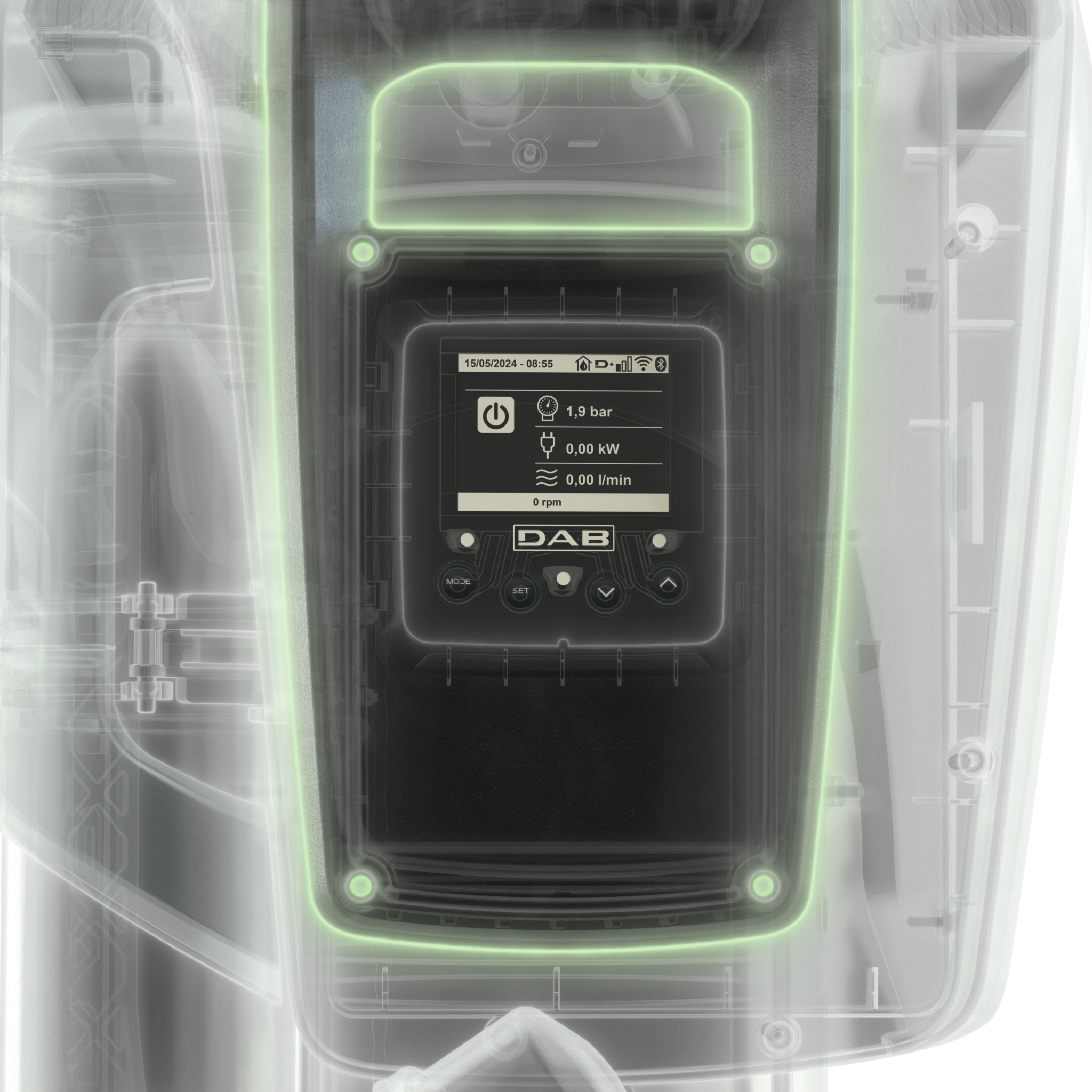

Display
Large display for direct configuration and viewing of operating parameters.

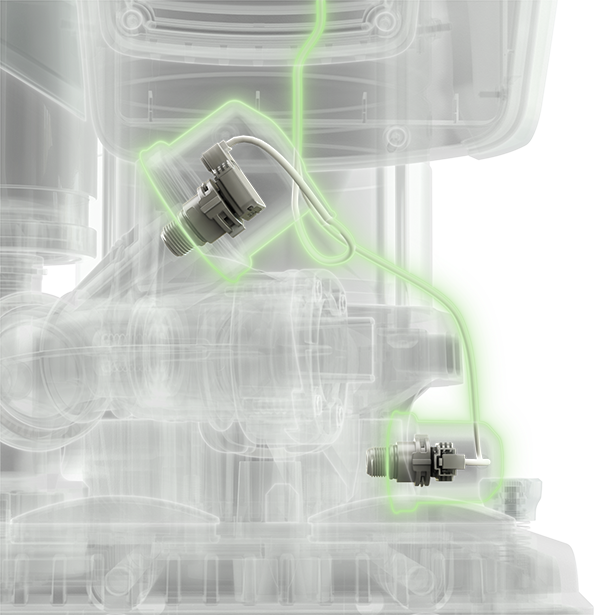

Sensors
Two pressure sensors ensure maximum accuracy, and the pressure is always under control.

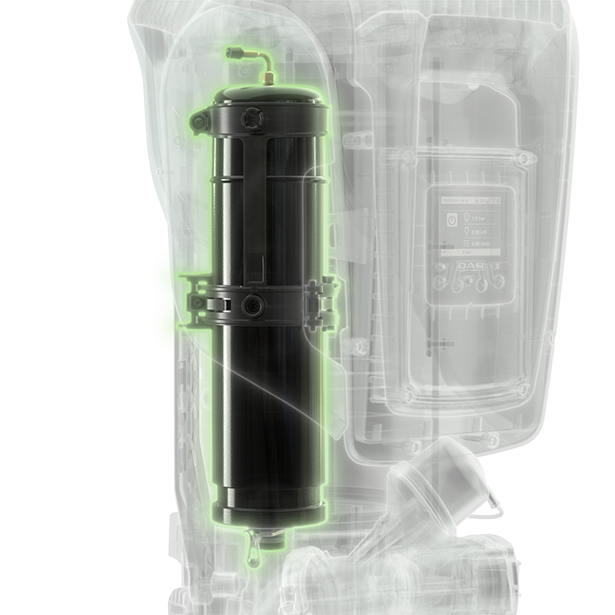

2-litre expansion tank
Fully integrated and covered by a 5-year warranty, with no maintenance required

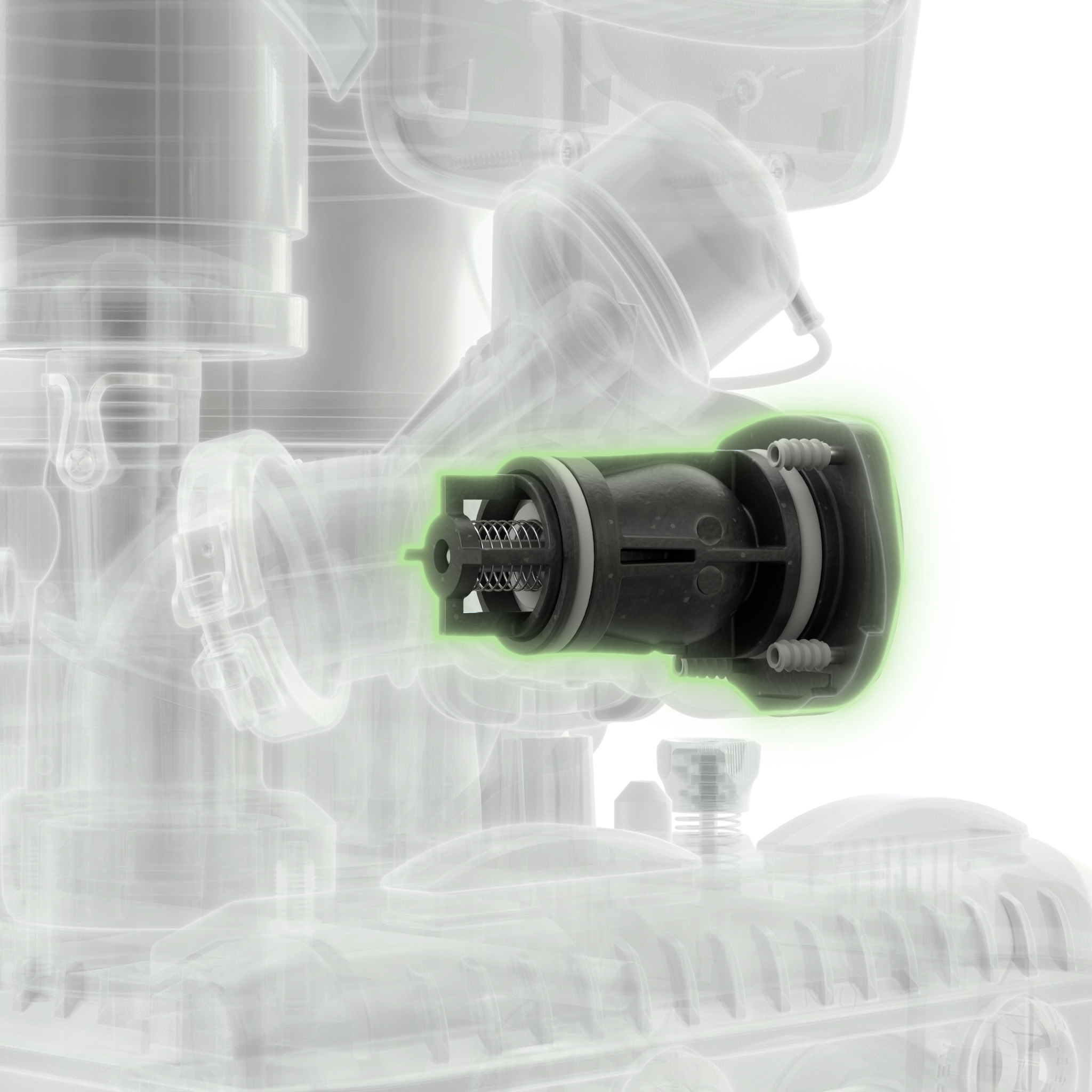

Integrated non-return valve
Easily removable for routine maintenance.

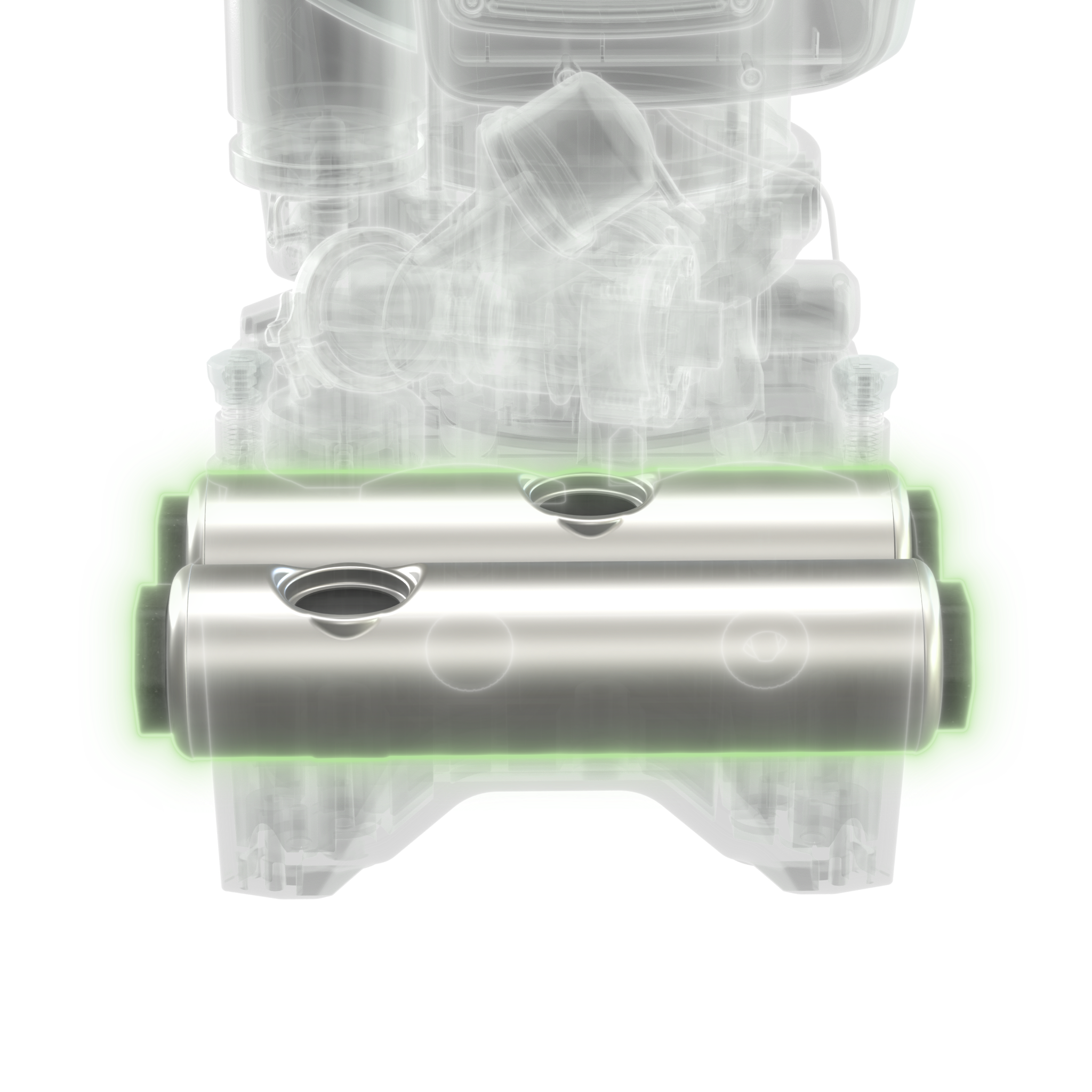

Quick hydraulic connection
For quickly disconnecting and reconnecting the EsyBox Max from a multi-pump system, minimising system downtime.

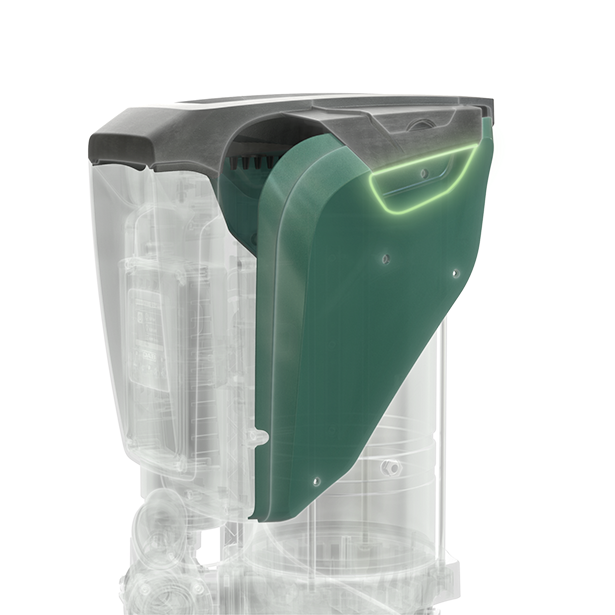

Ergonomic handles
Easy to handle and move around thanks to its ergonomic handles.
Technical specifications
17,4 m3/h
FLOW RATE96 m
HEAD+50°C
LIQUID TEMPERATURE+55°C
MAXIMUM ROOM TEMPERATURE5 bar
MAXIMUM INLET PRESSURE12 bar / 1200 kPa
OPERATION PRESSURE9,4 bar (85/120); 6,7 bar (60/120); 5,7 bar (45/120)
MAXIMUM DIFFERENTIAL PRESSURE1-12 bar (3 bar factory setting)
ADJUSTMENT RANGE4 m (with a foot valve).
MAXIMUM SUCTION HEIGHTIP X5
MOTOR PROTECTION CLASSF
INSULATION CLASSWRAS, NSF61, ACS
CERTIFICATESDiscover the savings with Esybox Max
Compared to a conventional pumping system without an inverter
They're not just accessories
Every accessory is designed to boost performance and unlock even greater system versatility.

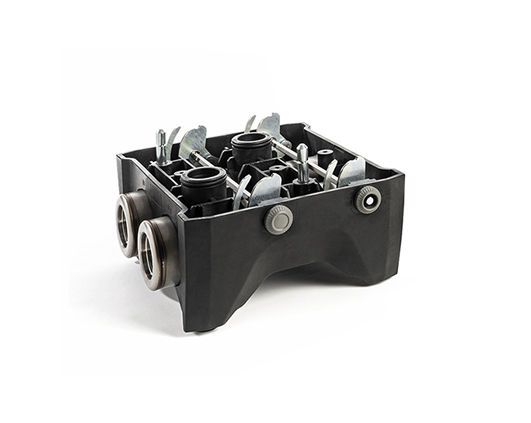

EsyDock Max
Quick-connect base for single-pump systems with four hydraulic configuration options.
Art. 60195200

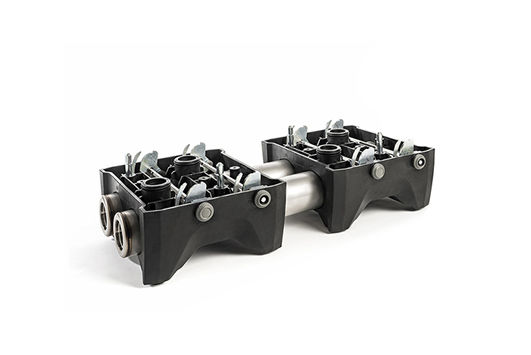

2 EsyDock Max
Quick-connect base for two-pump systems with four hydraulic configuration options.
Art. 60198332
3 EsyDock Max
Quick-connect base for three-pump systems with four hydraulic configuration options.
Art. 60198333

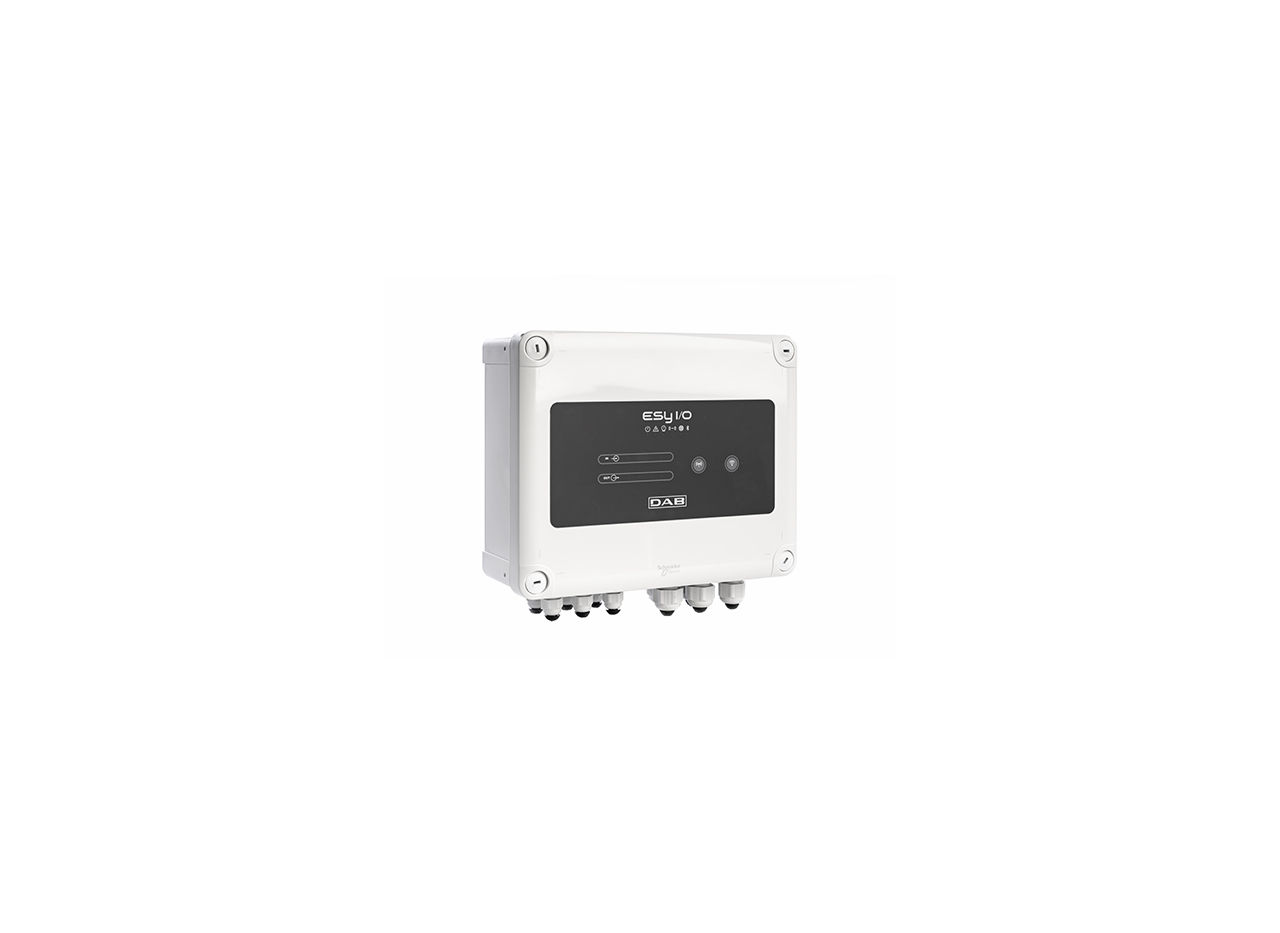

Esy I/O
Electronic expansion module for BMS and external system integration.
Equipped with 4 digital inputs, 1 analog input, 2 digital outputs, and an RTU Modbus port.
Art. 60200914

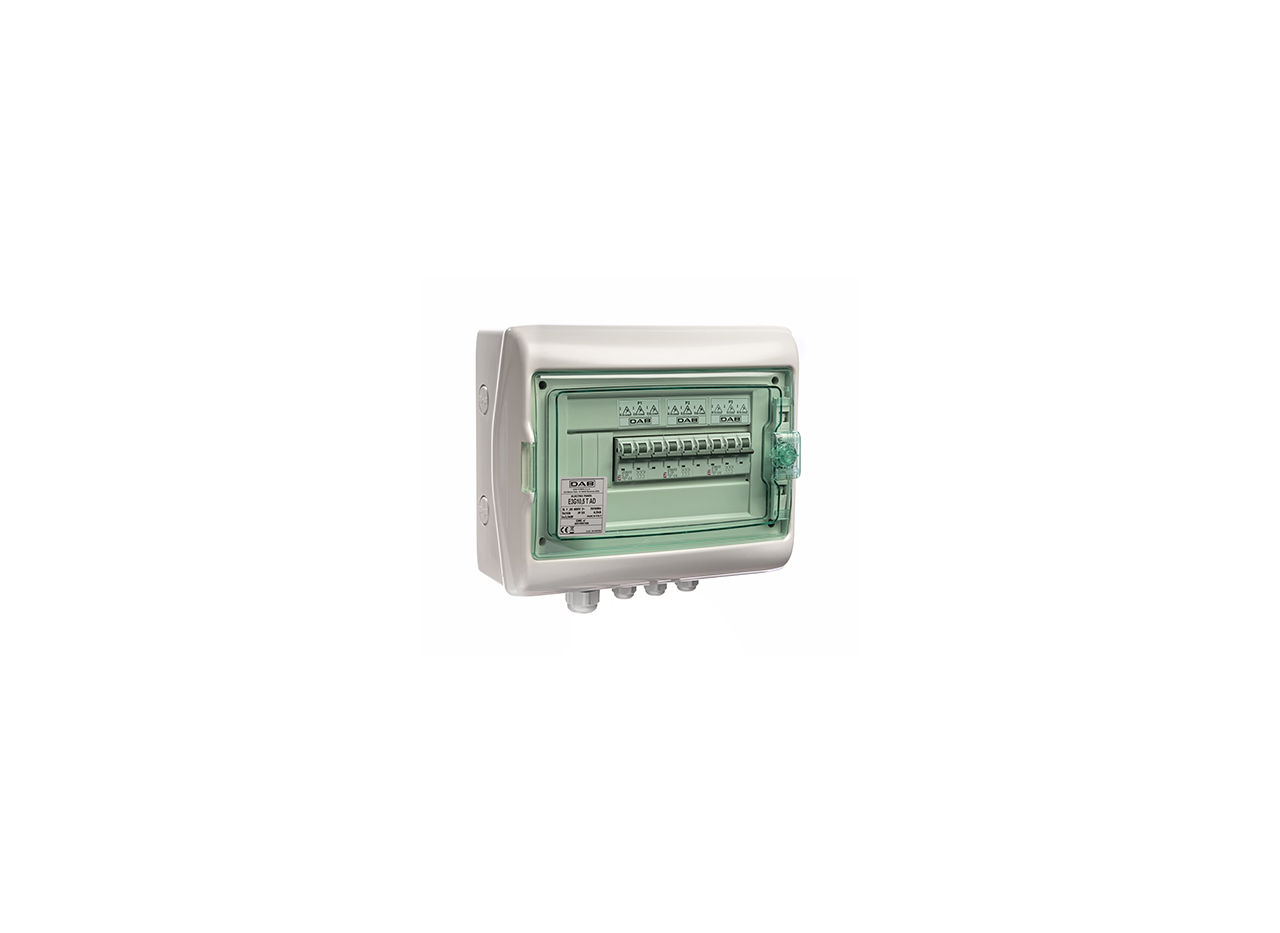

CONTROL PANELS
Control panels for two- and three-pump booster systems, complete with circuit breakers.
Wall-mounted or directly installable on EsyBox Max units using the dedicated bracket.
Part No. by control panel

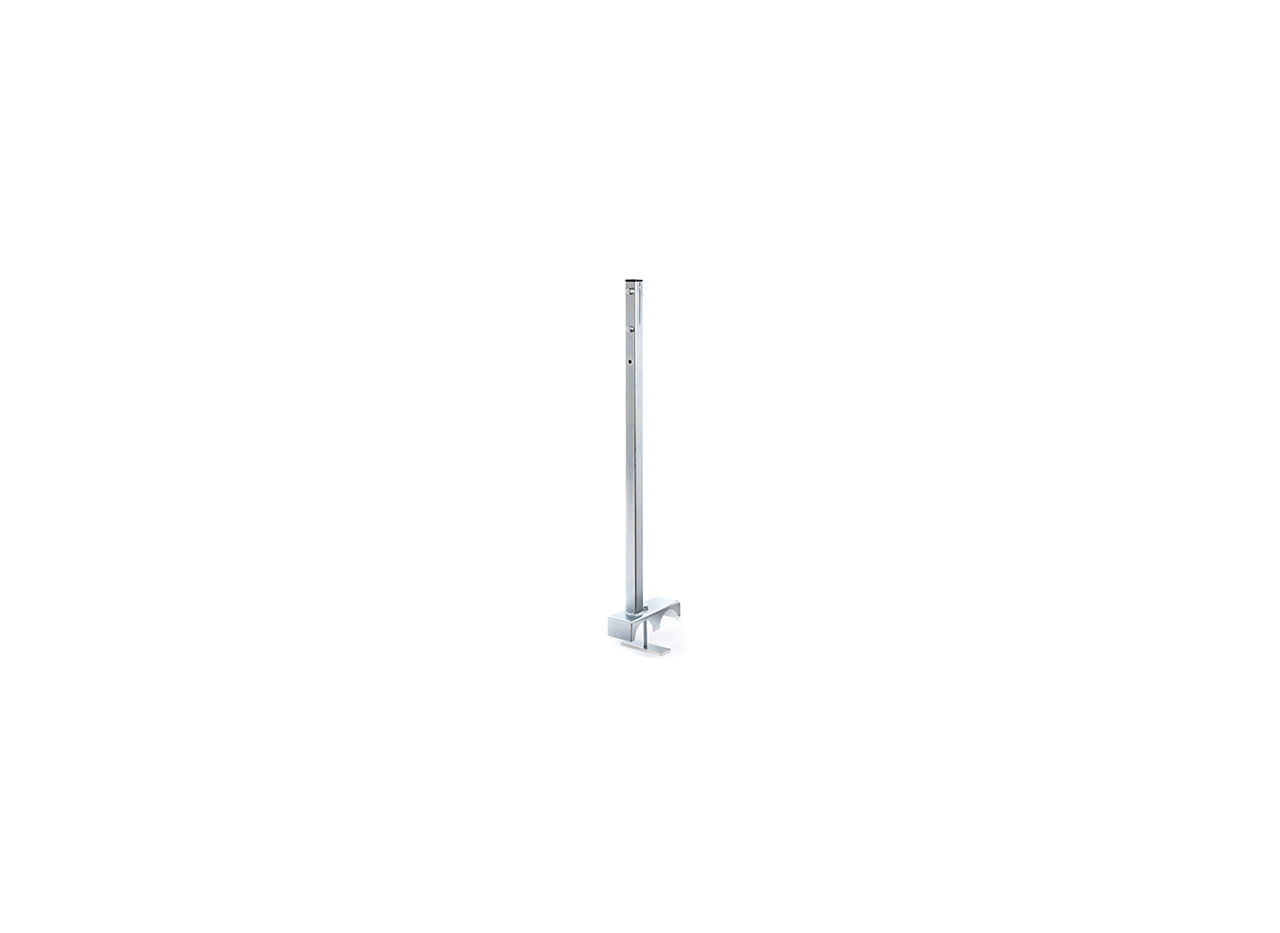

Support Stand Kit
Support column for mounting the control panel directly on the multi-pump system frame.
Art. 60201600
All the support you need
With our services, DAB is always by your side. From installation to maintenance, we provide support throughout every stage of your system’s lifecycle.
DService
Per avere l’informazione che serve, quando serve.
Il nostro DService è un ufficio tecnico pronto a darti una mano, prima, durante e dopo l’acquisto. Inoltre, puoi sempre fare affidamento su una rete capillare di Centri di Assistenza Tecnica.
DService
The information you need, when you need it.
Our DService team is always ready to support you before, during, and after your purchase. You can also rely on our extensive network of Authorized Service Centers.
