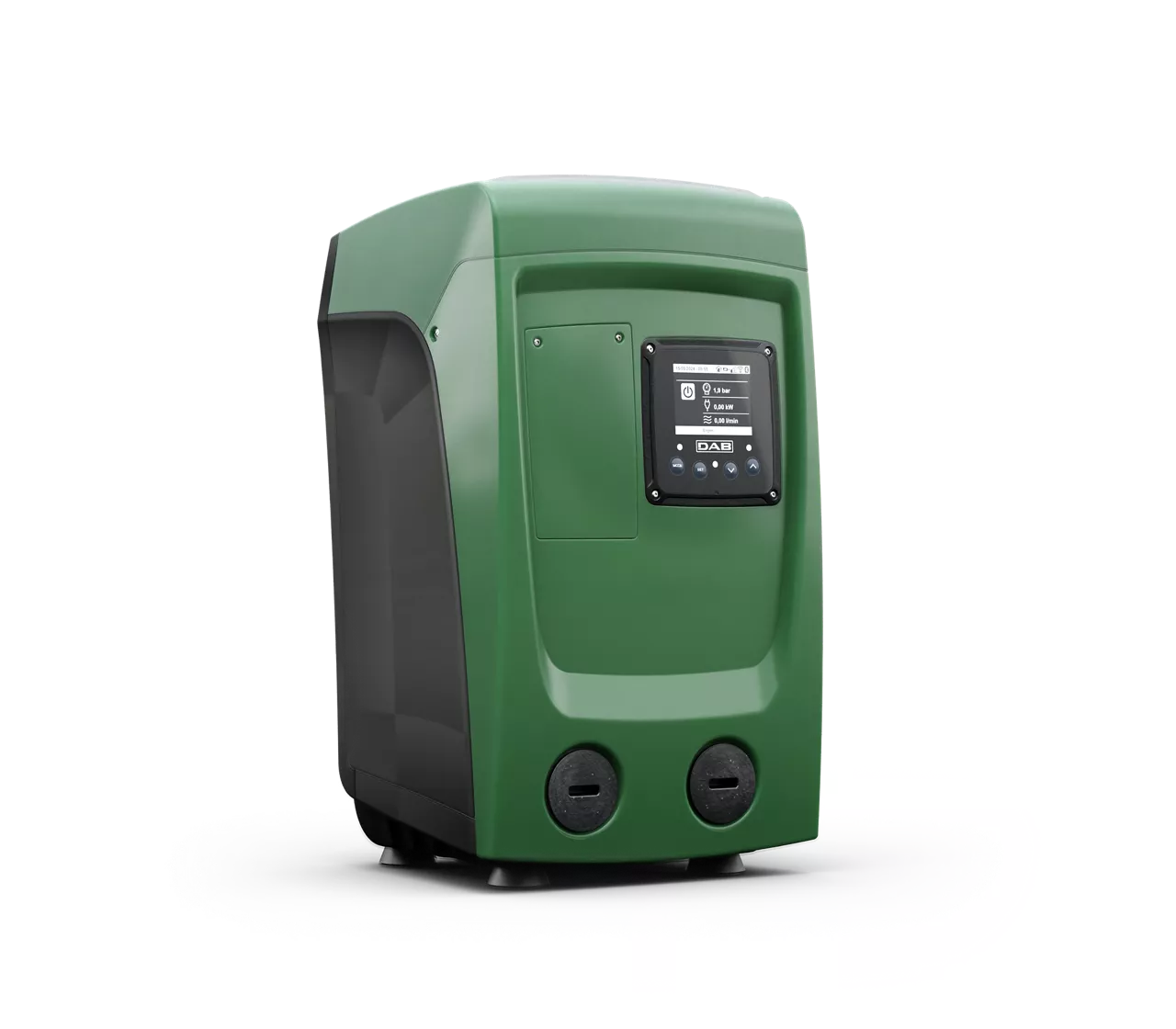

EsyBox Mini 3
Electronic self priming multi-impeller system for pressurization, rainwater reuse, ground water, gardening and irrigation in residential building service. The system is "all inclusive" and ready to use, including among other components an expansion vessel, a self-priming multi-impeller pump, a variable frequency drive and a display. The special ABS construction makes it silent, just 45 dB, so it can be positioned even in quite environments. Water-cooled motor. The system can be installed vertically or horizontally. The large display (adjustable to meet different installation needs) allows easy and precise configuration of the operating parameters. Complete with power cable and plug. It is possible to create groups of max two pumps. It supports the remote control function thanks to the DConnect service integrated directly into the system.
Best for the following applications
Water pressure booster
Ground water
Rainwater harvesting
Cosa la rende unica

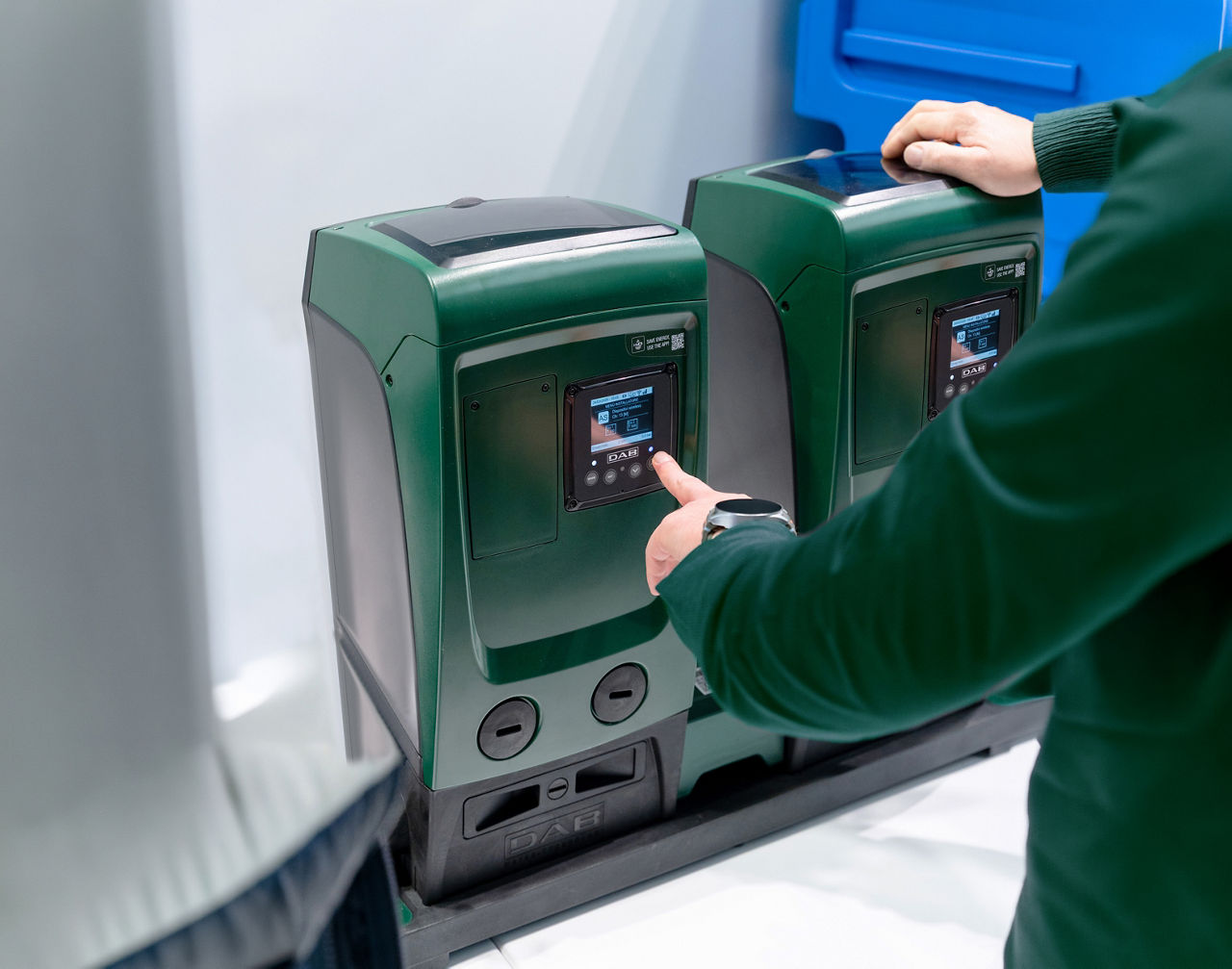

Practical and connected
Thanks to H₂D, your EsyBox Mini³ can be controlled from your smartphone without the need for any additional components. Monitor all your energy consumption, activate comfort functions and control it via your favourite smart home assistant – convenience and connectivity guaranteed.
Easy to install
Pressurisation units can be set up and connected quickly using wireless technology, without the need for physical cabling. This results in savings in terms of cost, time and resources.

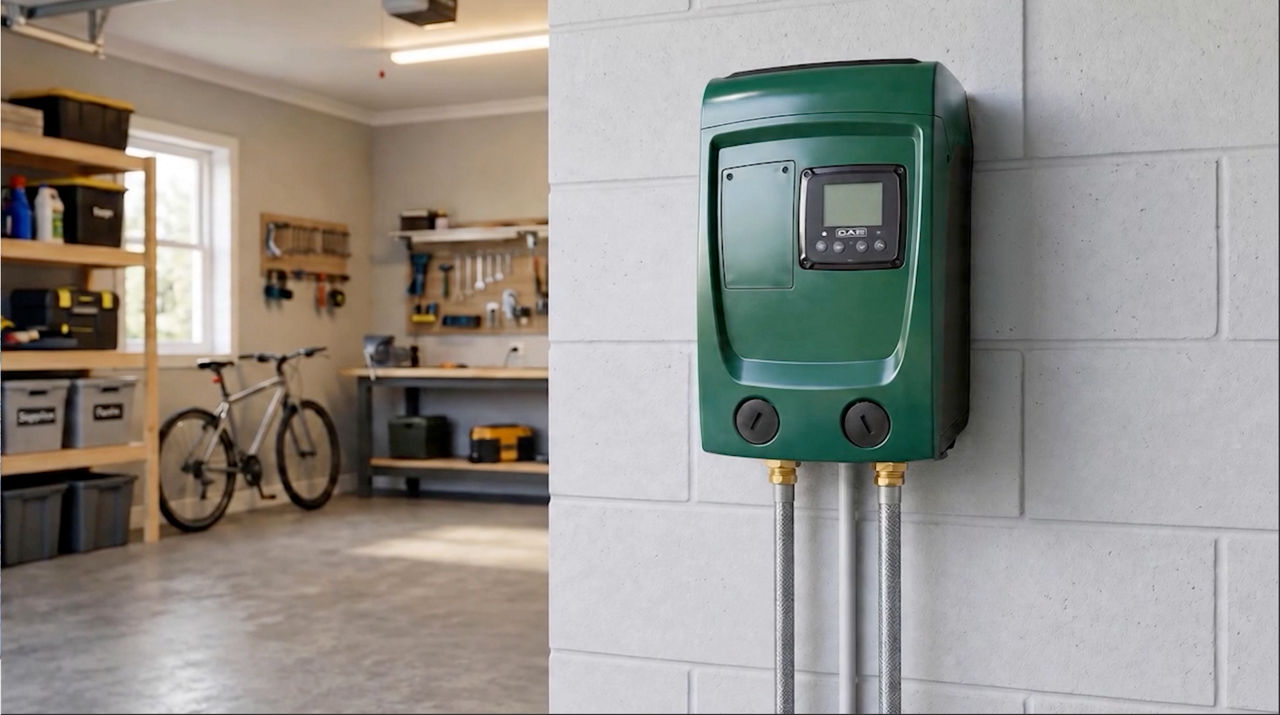

Completamente adattabile
Orizzontale, verticale o a parete, EsyBox Mini³ può essere installata ovunque, all'interno o all’esterno. Anche il display è orientabile per adattarsi perfettamente a ogni posizione.

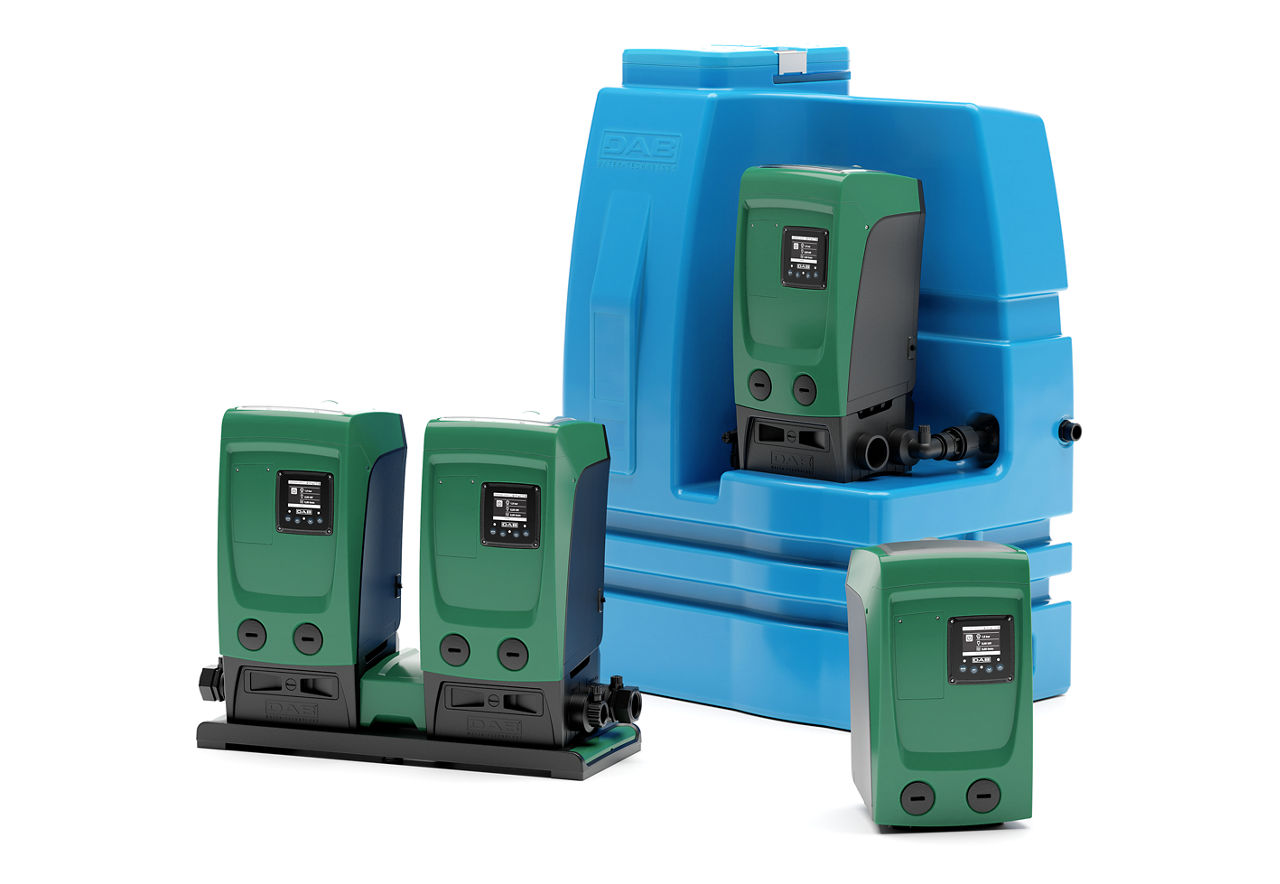

Well-equipped
The EsyBox Mini³ comes complete with accessories tailored to meet all your needs. With the EsyTank 500 Mini and EsyTank 300 Mini tanks, and the EsyTwin Mini installation base offering four configuration options, it is compatible with any system.
Take Your Home Comfort to the Next Level
- slide 1
- slide 2
- slide 3
- slide 4
- slide 5

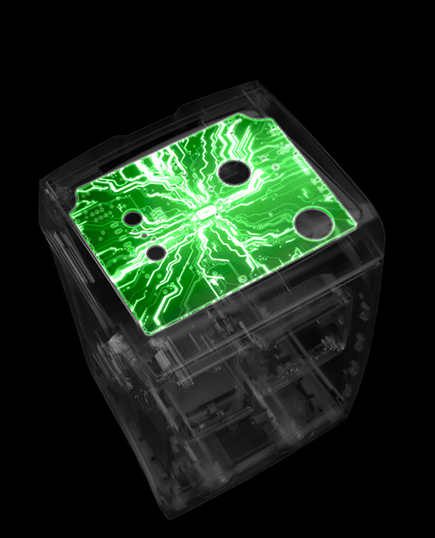

Inverter
It consumes only the energy required to meet water demand, resulting in significant cost savings.

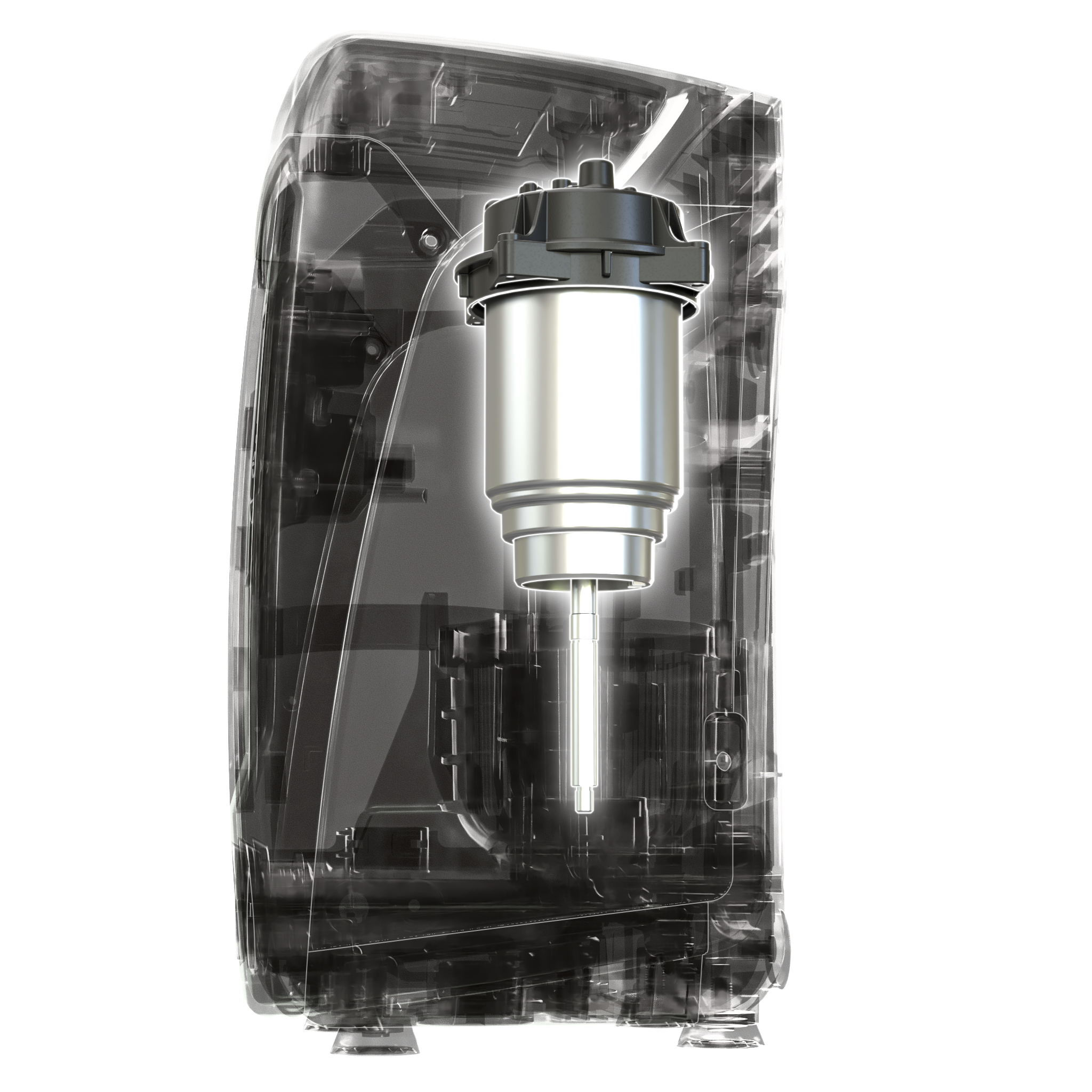

Motor
Water-cooled to eliminate the noise of traditional cooling fans.

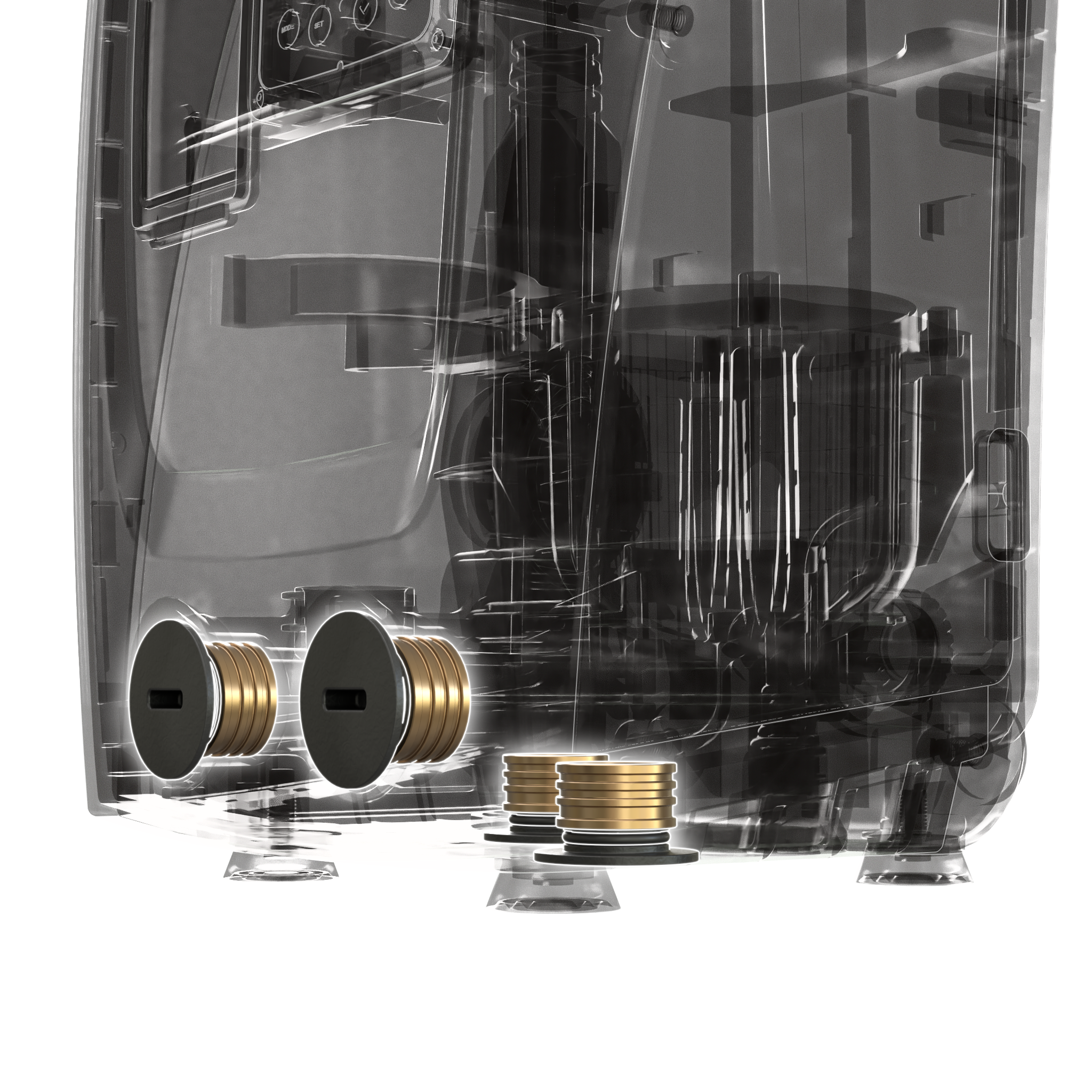

Connections
These allow you to choose which inputs and outputs of the system to use, depending on the installation.

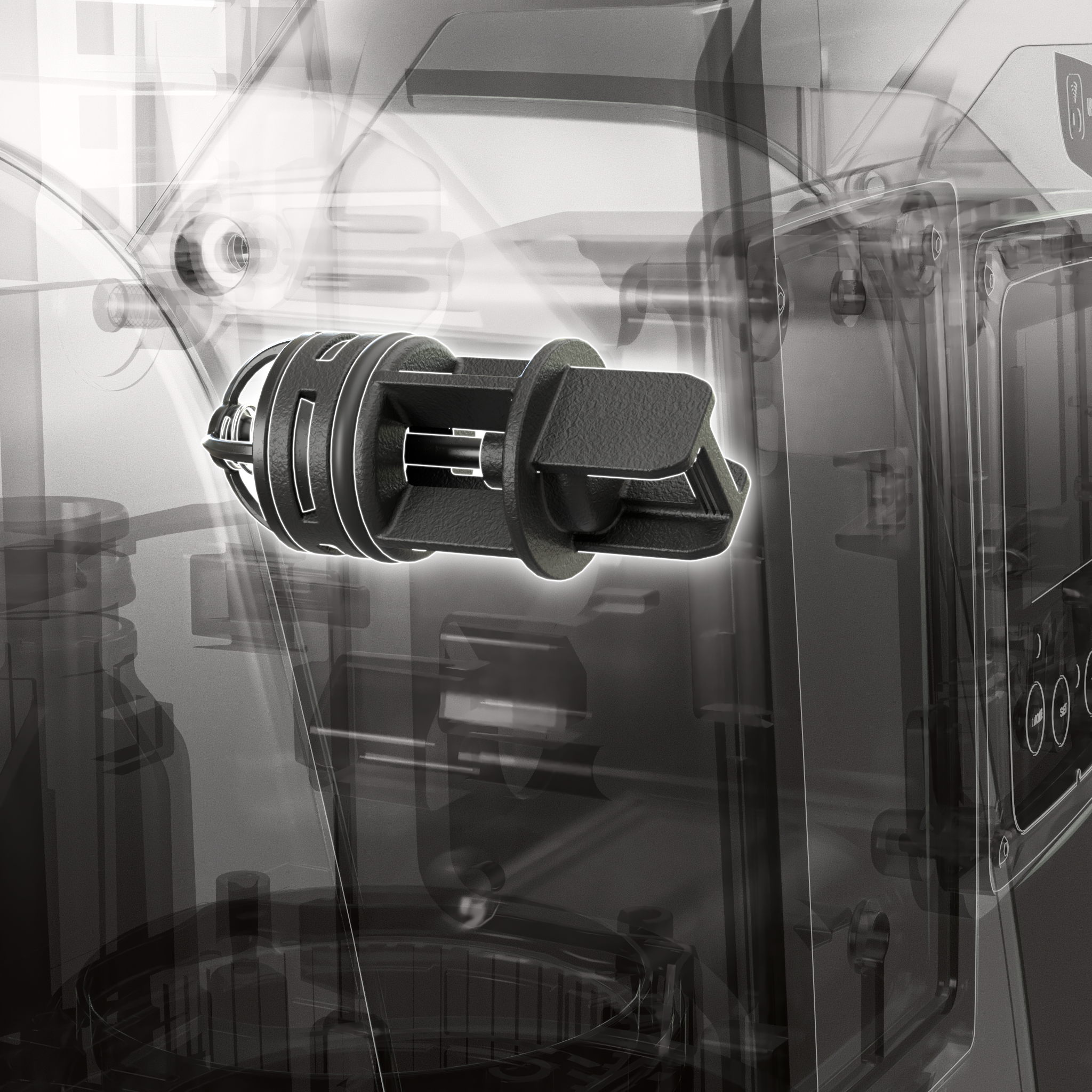

Outlet non-return valve
Easy to remove for routine maintenance.

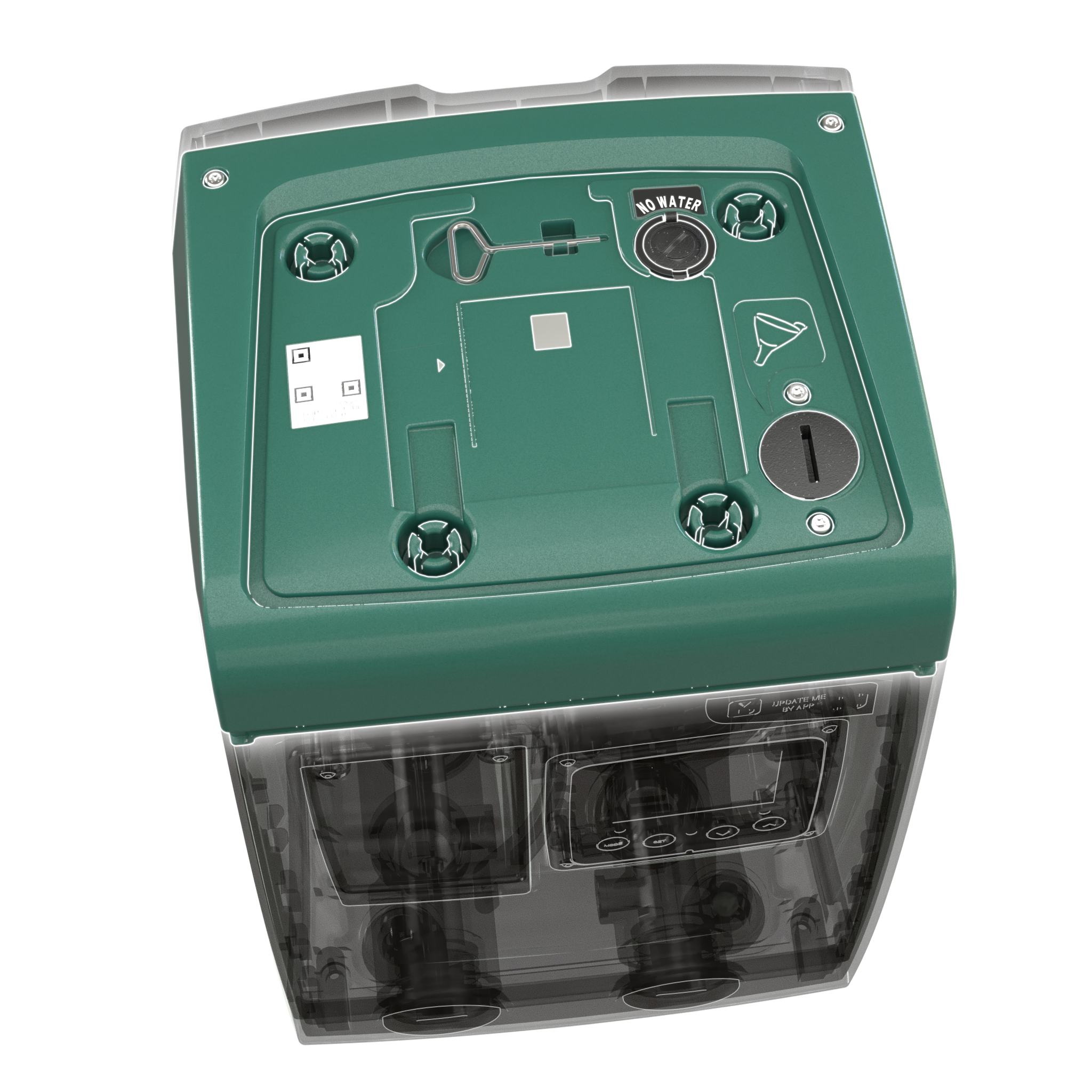

Service compartment
Easy access to the expansion tank valve and the non-return valve for quick maintenance.

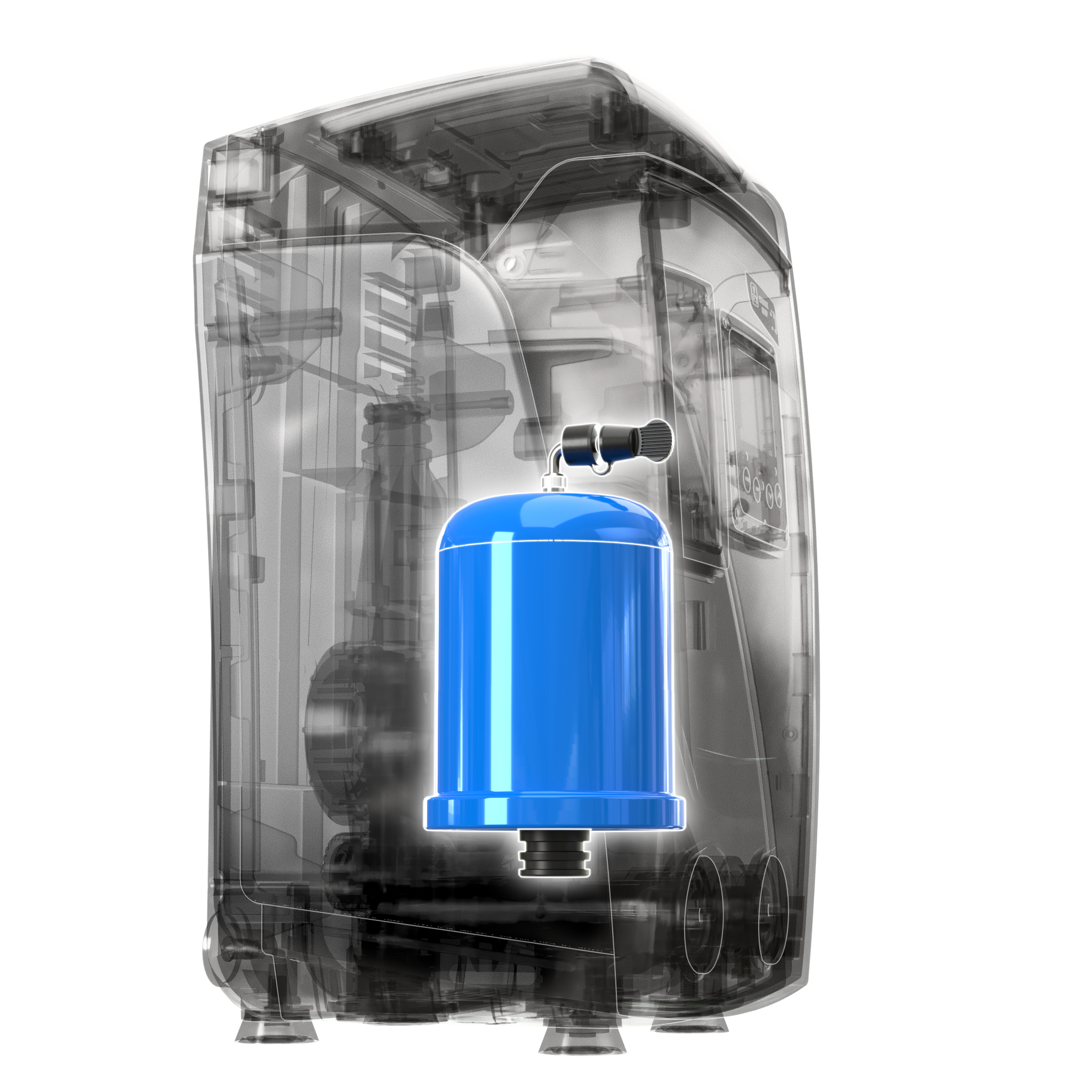

Expansion tank
Guaranteed for 5 years with no maintenance required.
Flow and pressure sensors
Integrated electronic pressure transducer and flow sensor positioned in the delivery line for maximum accuracy under all operating conditions.

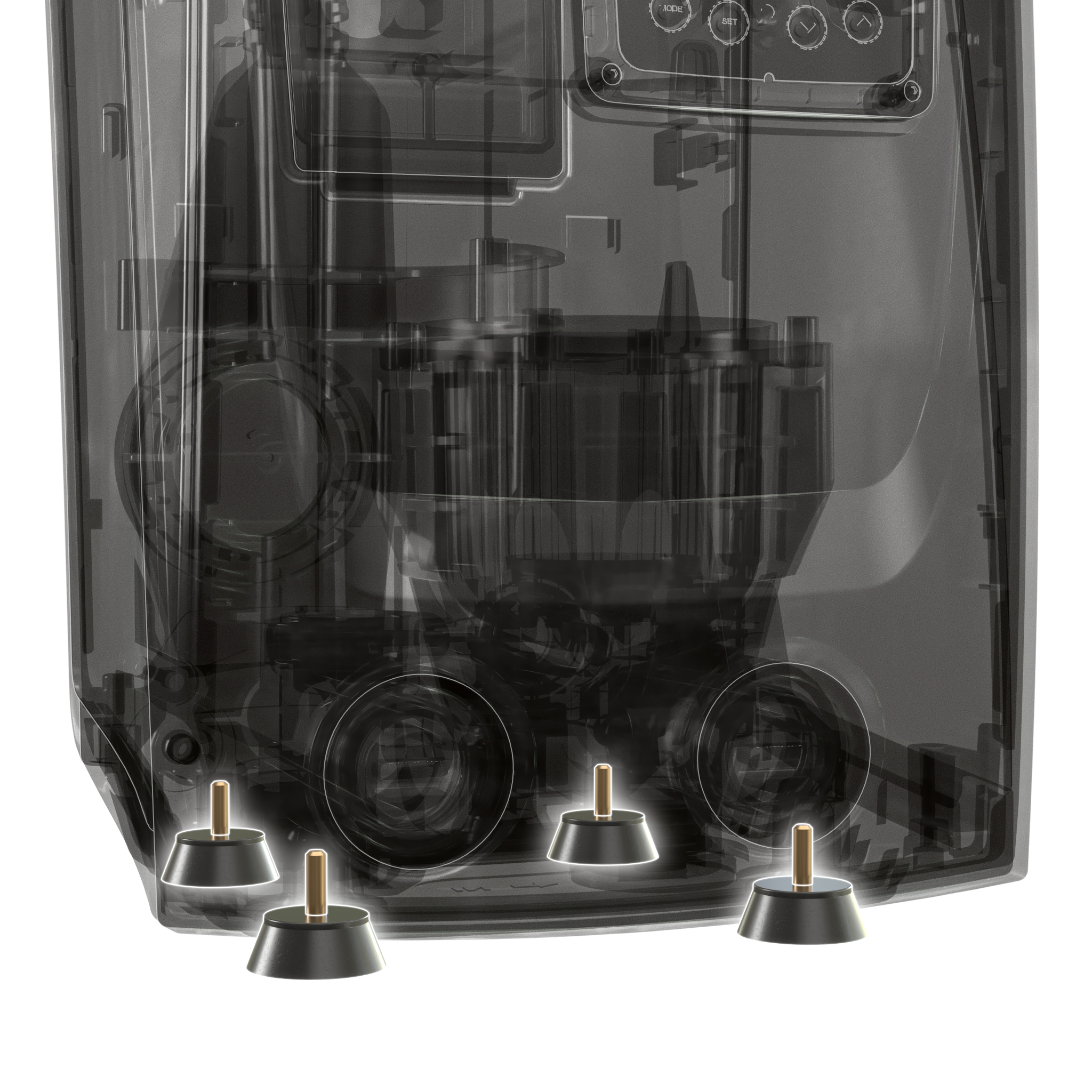

Anti-vibration feet
These ensure effective vibration absorption, making the EsyBox Mini³ even quieter.
Specifiche tecniche
4,8 m³/h
FLOW RATE55 m
HEADFrom 0°C to +40°C
LIQUID TEMPERATURE+ 50°C
ROOM TEMPERATURE8 metres
MAXIMUM SUCTION DEPTH7,5 bar (750 kPa)
MAXIMUM OPERATION PRESSUREIP X4
PROTECTION CLASSF
INSULATION CLASSHorizontal, vertical or wall-mounted position
INSTALLATIONDiscover the savings with Esybox Mini
Compared to a conventional pumping system without an inverter
They're not just accessories
Every accessory is designed to boost performance and unlock even greater system versatility.

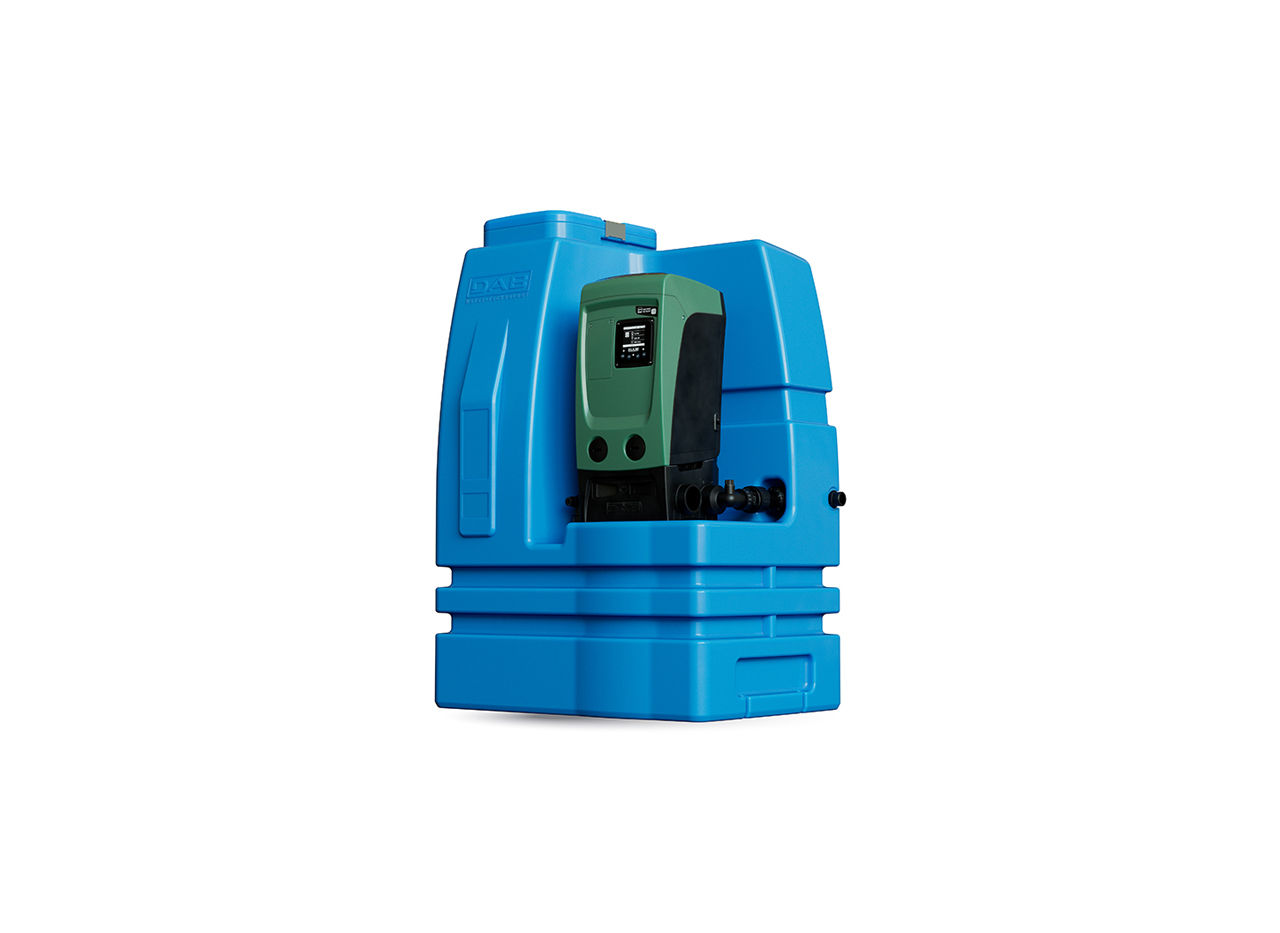

EsyTank Mini 300
Tank for EsyBox Mini³ with dedicated EsyDock and complete hydraulic fittings.
300-litre capacity, expandable on three sides.
Art. 60217732

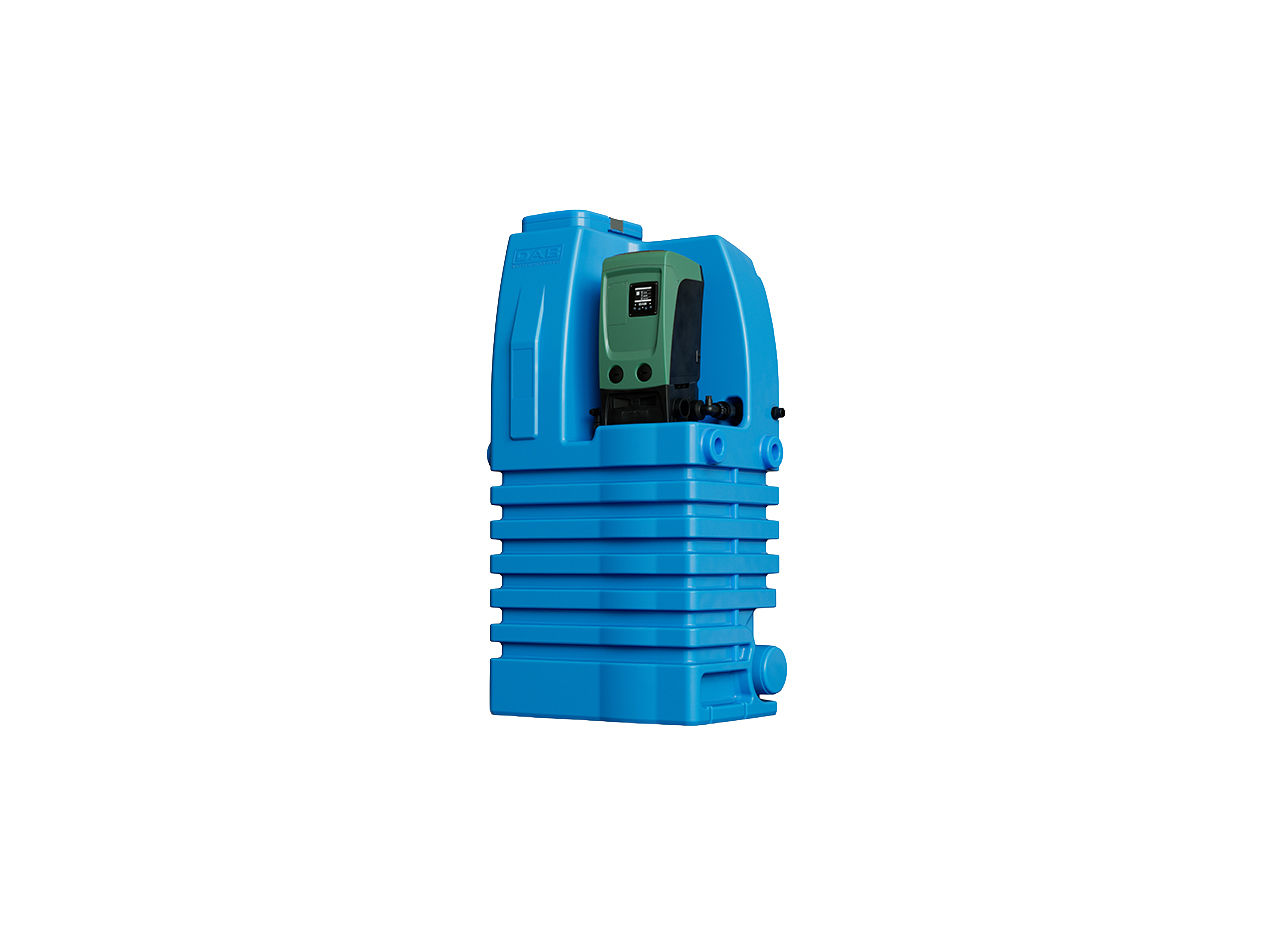

EsyTank Mini 500
Tank for EsyBox Mini³ with dedicated EsyDock and complete hydraulic fittings.
500-litre capacity, expandable on three sides.
Art. 60219002

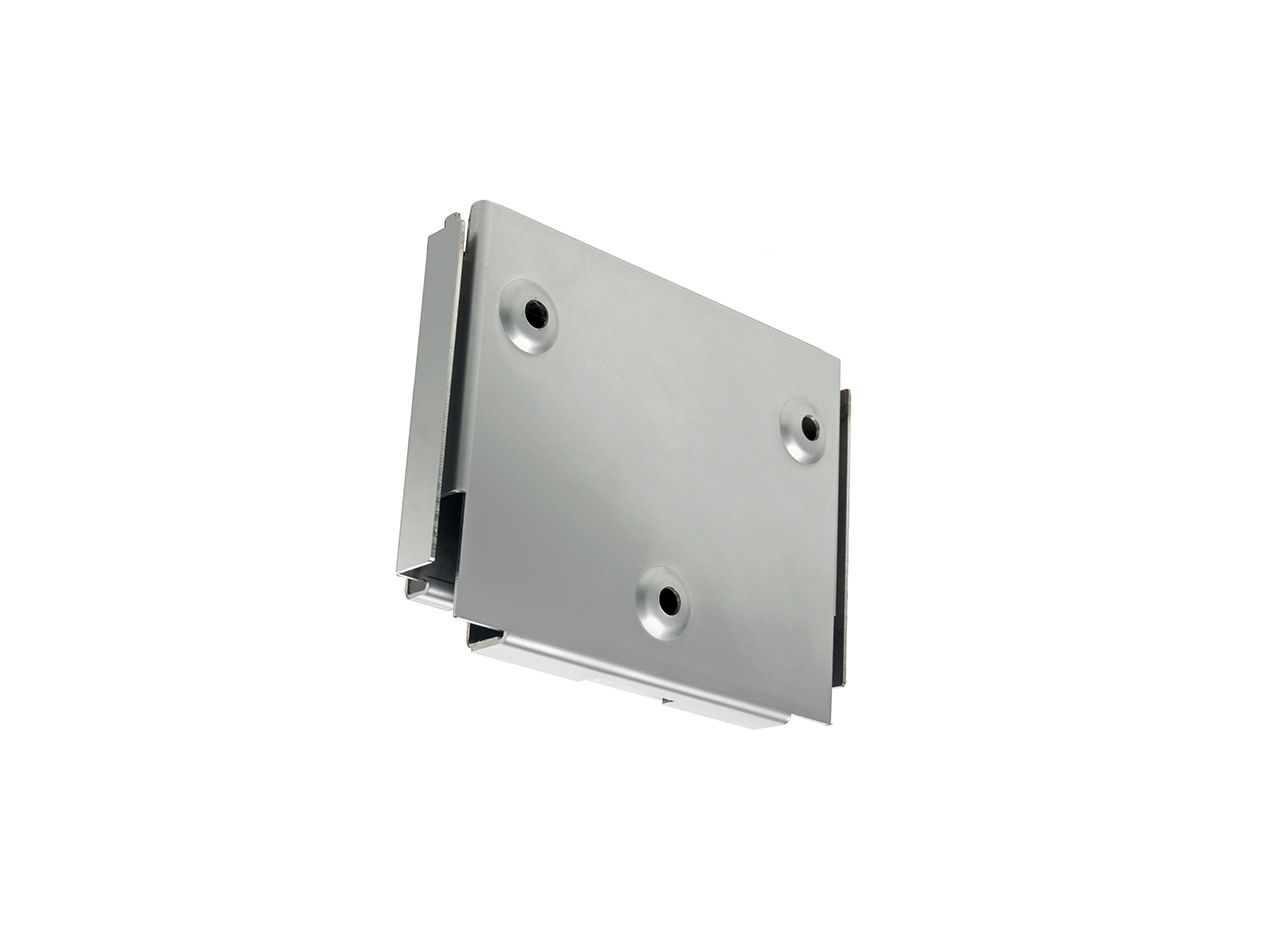

EsyWall
Complete wall-mounting kit including brackets, screws, wall plugs, and spacers.
Art. 60161442
EsyGrid + EsyCover
Protective grille and cover for EsyBox outdoor installations.
Protection against rain, insects, and foreign objects.
Art. 6939391

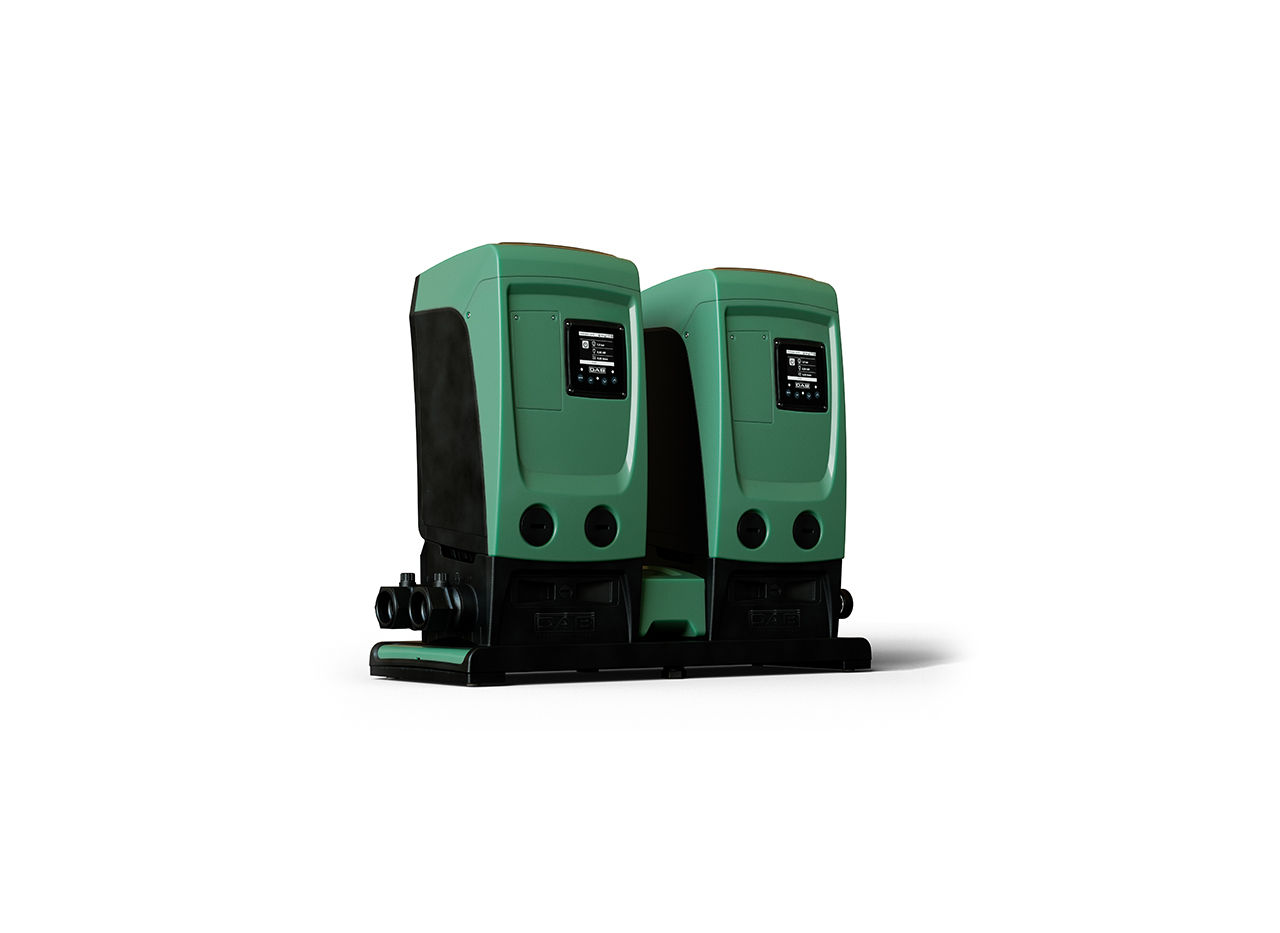

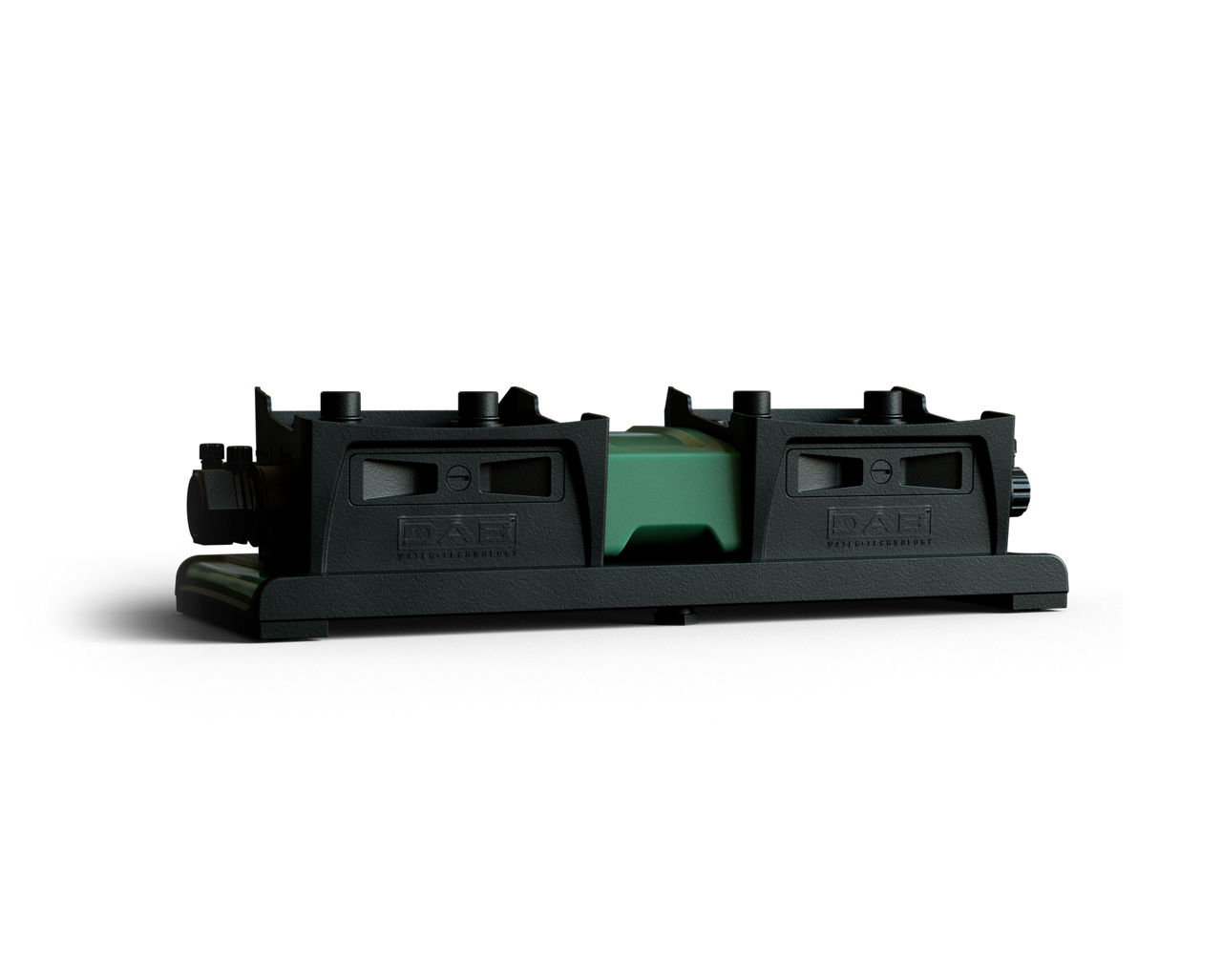

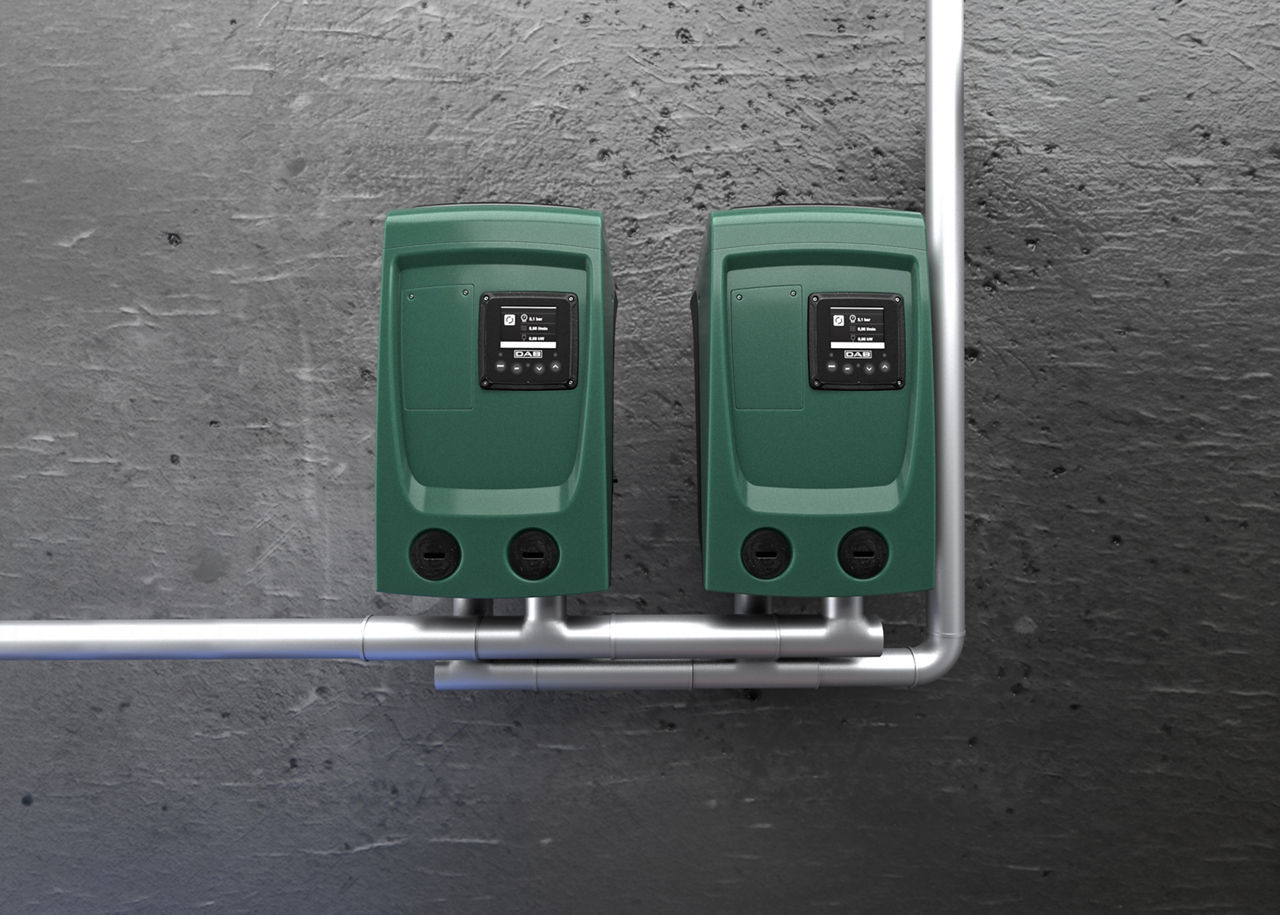

EsyTwin Mini
Quick-connect base for two-pump systems with four hydraulic configuration options.
Art. 60216881

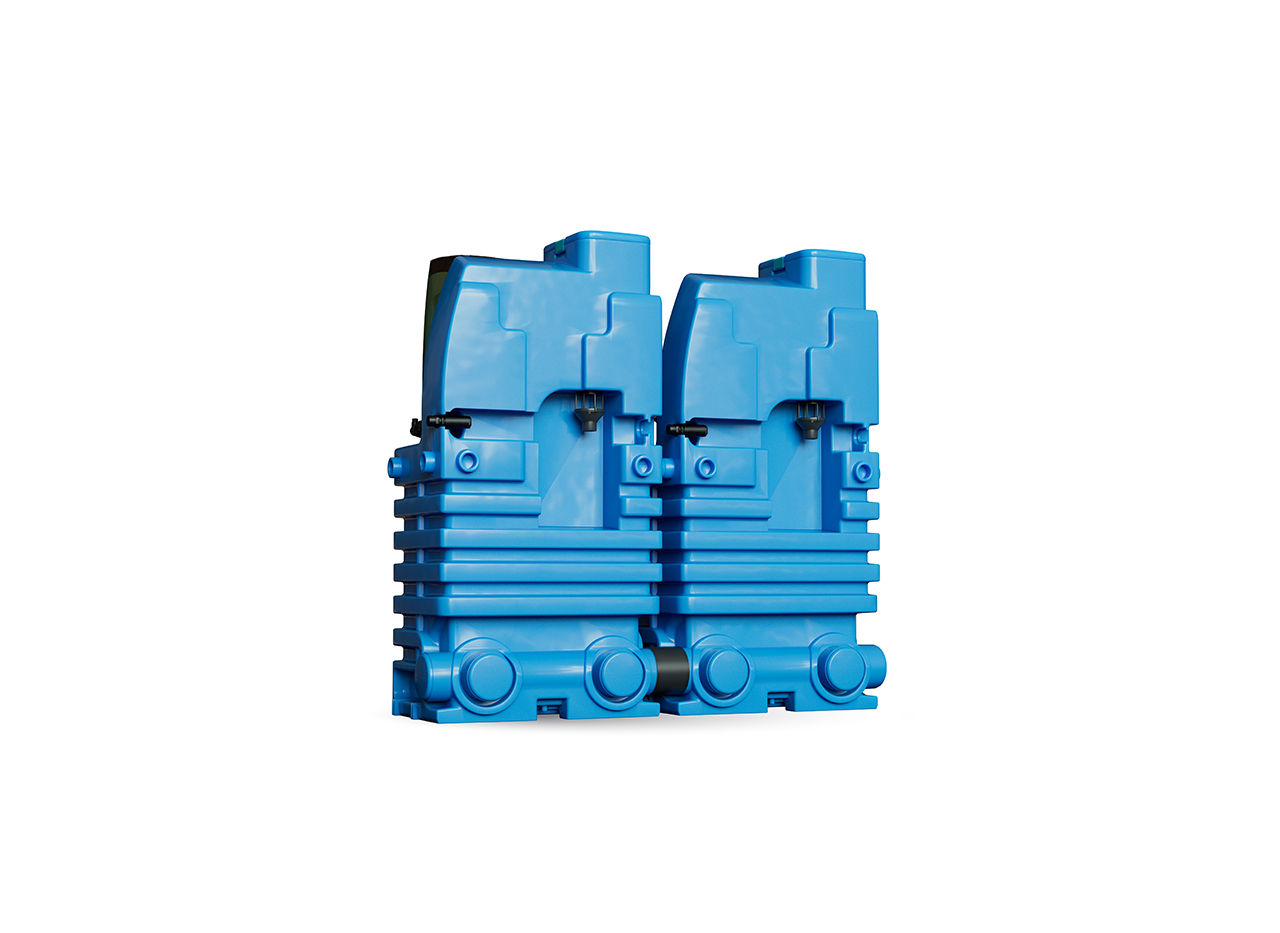

EsyTank Mini auxiliary tank
Auxiliary tank for expanding EsyBox Mini³ system capacity.
Connects to other EsyTank Mini units on three sides using the EsyTank Mini Tank Connection Kit.
Art. 60166063
