Wet rotor electronic circulator designed for the circulation of water in conditioning and heating systems in commercial building service. The integrated variable frequency drive ensures greater comfort and protection against water hammer action, and also saves energy by adapting the motor speed to actual requirements. The display enables easy configuration and the setting of the six operating modes:
(proportional differential pressure,
constant differential pressure,
constant curve adjustment,
constant and proportional differential pressure in relation to water temperature,
economy function).
The circulator is supplied with flanged suction and delivery ports (also in the twin version). The single version includes insulation shells. The Evoplus D versions are supplied as standard with an automatic non-return suction valve incorporated in the delivery port to avoid water recirculating through the unit when it is not running and a blank flange for servicing either of the two motors. Possibility of remote control with the DConnect service (DConnect Box supplied separately).

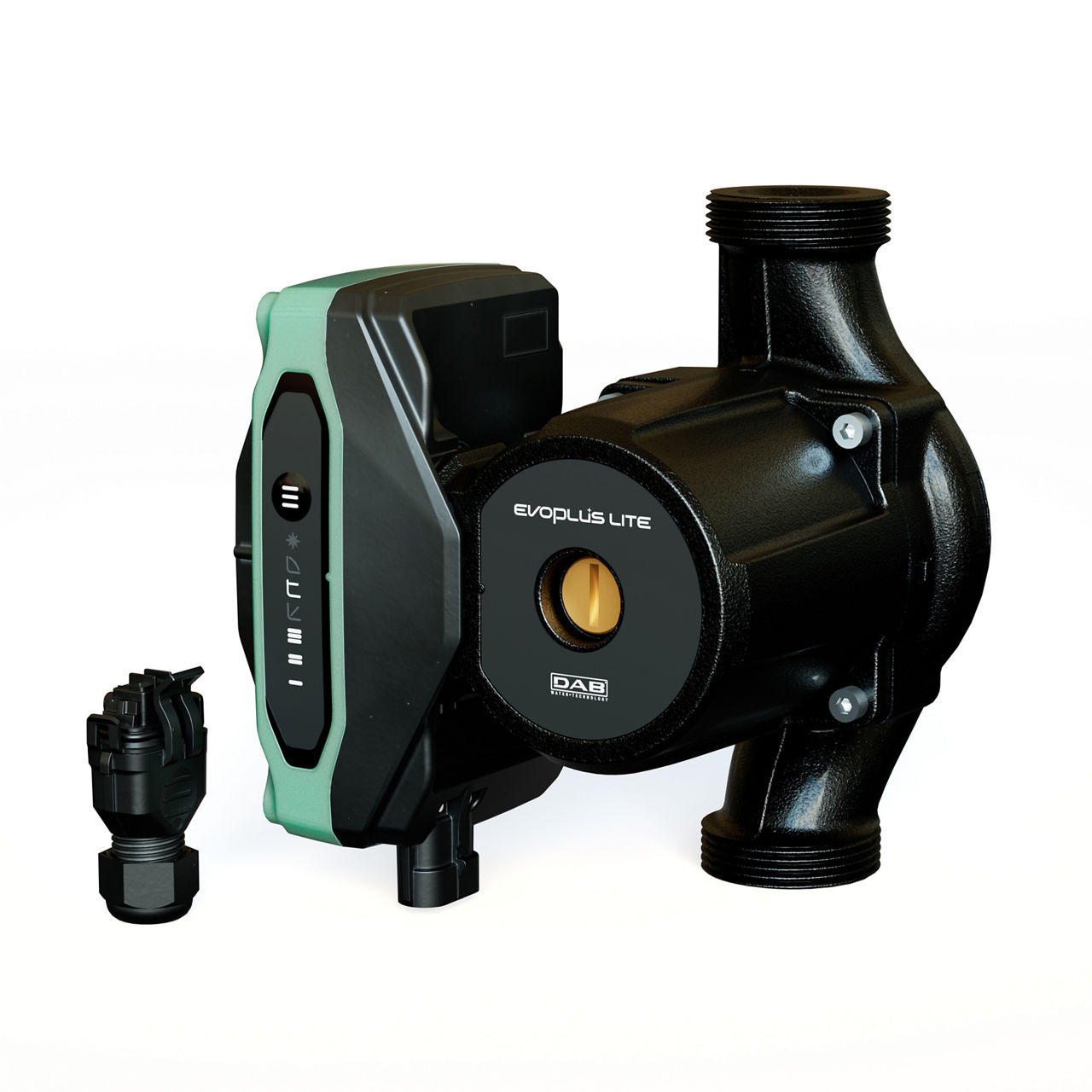

Energy-efficient circulator pump, ideally suited to heating and air-conditioning applications, designed to suit any systems demanding efficiency and reliable performance, as well as versatility. Reliable and long-lasting, once installed, it requires no further attention, outside of routine maintenance. Key to its versatility is the motor head, which can be turned to three different positions to accommodate the requirements of even the tightest spaces; there is the possibility to achieve up to six different performance levels (curves). Increased separation between the motor and electronics with air circulating; sleep Mode function with automatic water circulating every 25 hours. Only one plug and play connector; only one set-up button; easy to monitor thanks to intuitive interface, and the 7-LED display is easy to read. Technopolymer impeller; aluminum motor shaft mounted on graphite bearings, lubricated by the actual fluid being pumped. Synchronous
motor with permanent magnet rotor. Standard bling flange if maintenance of one of two motors is needed. Single version available with 1 1/2” and 2” threaded connections,and with DN 32 and DN 40, PN 6 / PN 10 / PN 16 flanged connections.

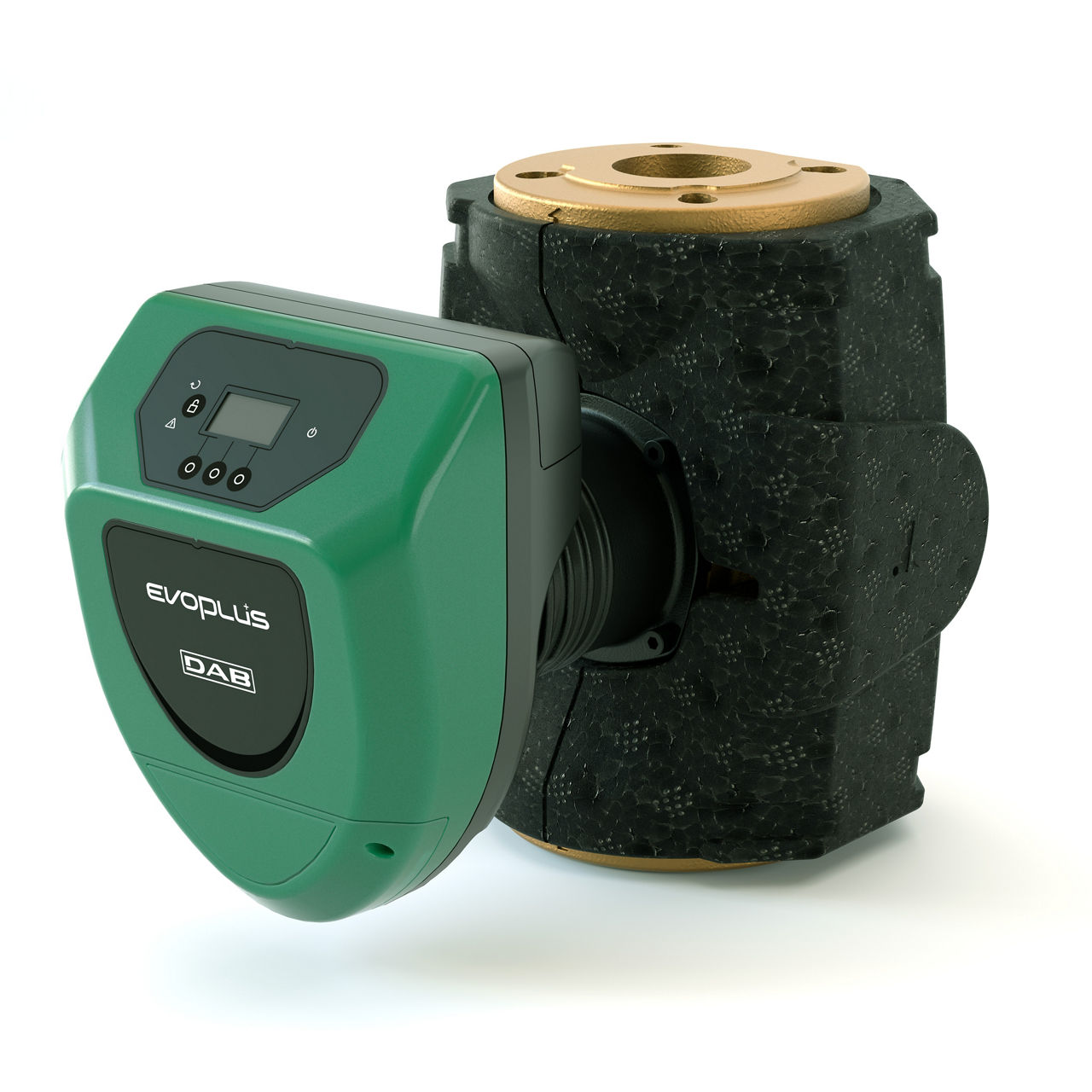

Compact wet rotor electronic circulator with bronze pump body designed for the circulation of domestic hot water in commercial building service. It is equipped with an integrated variable frequency drive to ensure better all-round performance and energy efficiency, it also protects the system against water hammer action. The operating parameters, like proportional or constant differential pressure and constant speed, can be easily viewed and set on the user-friendly display. Synchronous motor with permanent magnet rotor. Flanged in-line suction and delivery ports. The circulator is WRAS-certified. Possibility of remote control with the DConnect service (DConnect Box supplied separately).

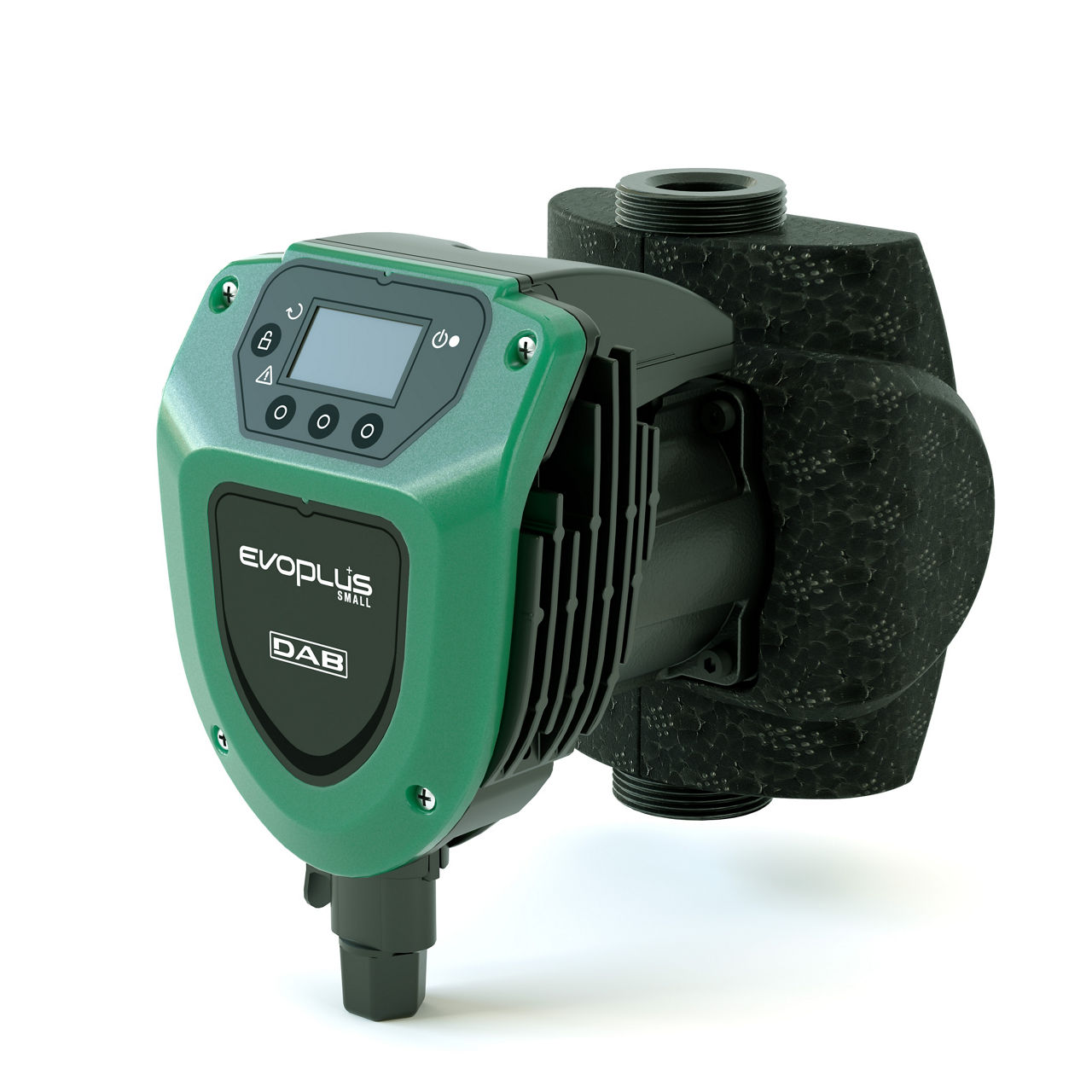

Wet rotor electronic circulator designed for the circulation of water in residential building service and commercial building service. The integrated variable frequency drive automatically adapts the performance to the actual requirements and protect against water hammer action and offers better energy efficiency than circulators without the VFD. A display enables easy configuration and setting of the operating modes: proportional differential pressure, constant differential pressure, constant curve adjustment, constant and proportional differential pressure in relation to water temperature, economy function. Evoplus Small is available: with flanged suction and delivery ports, for the single and twin version, and only in the single version with threaded suction and delivery inlet. Possibility of remote control with the DConnect service for the single Evoplus Small (with multi-function model) and twin version. DConnect Box supplied separately.

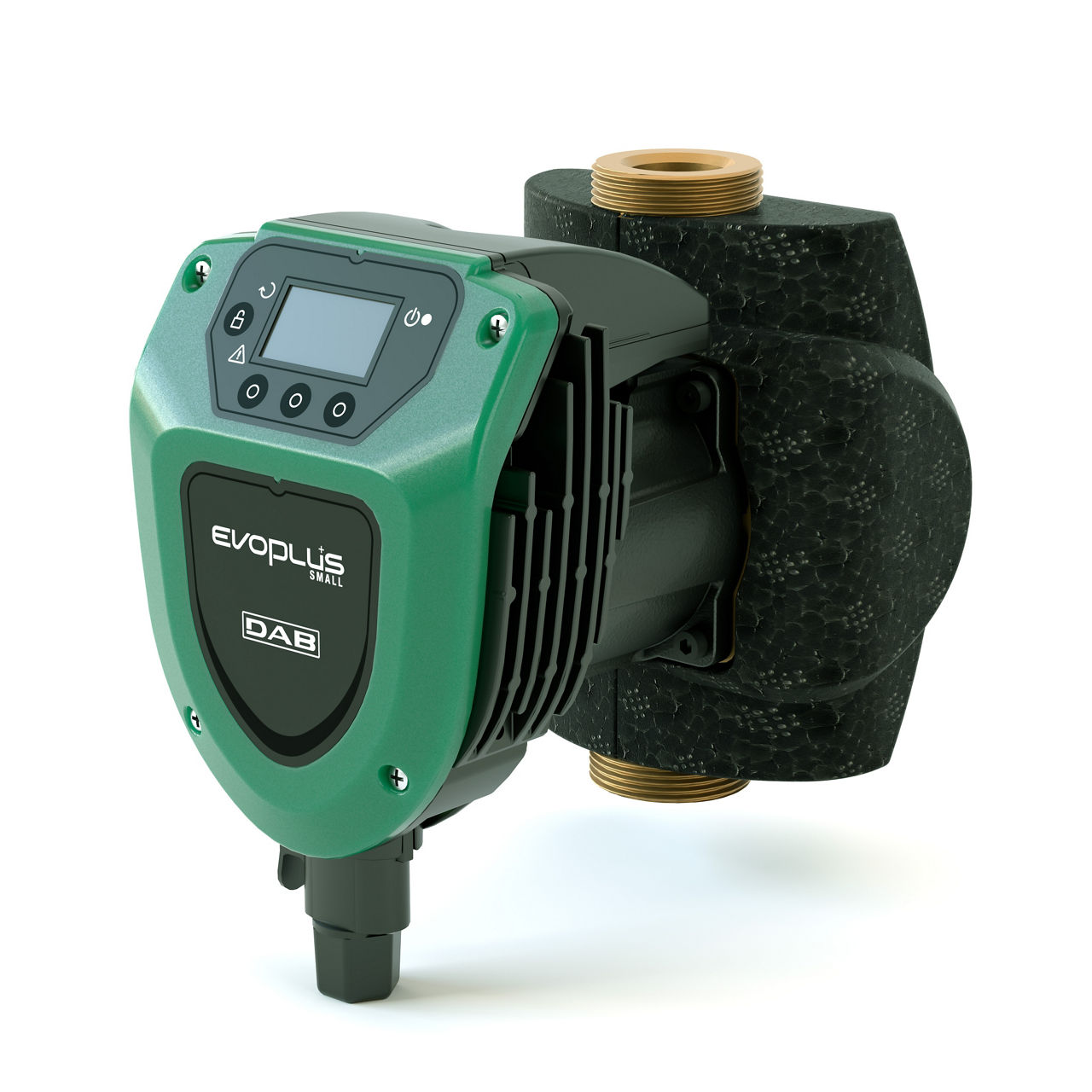

Wet rotor electronic circulator with bronze pump body designed for the circulation of drinkable hot water in small collective domestic, residential, civil and commercial systems. It is equipped with an integrated variable frequency drive to ensure better all-round performance and energy efficiency, and also to protect the system against water hammer action. The operating parameters, like proportional or constant differential pressure and constant speed, can be easily viewed and set on the user-friendly display. Synchronous motor with permanent magnet rotor. Flanged inlet and outlet ports. WRAS and ACS certification. Possibility of remote control with the DConnect service, the DConnect Box is supplied separately.
