Submersible centrifugal pumps made of stainless steel with vortex impeller made of microcast steel. They are suitable for lifting sewage water and in general waste water containing solids with a maximum diameter of 50 mm. Insulating rubber covered handle. AISI 316 stainless steel motor shaft. They have double mechanical seal with interposed oil chamber (non-toxic oil) in carbon-alumina on the motor side, and silicon carbide/silicon carbide on the pump side. The seal cover, motor casing, pump body, cover and handle are made of stainless steel. They are fitted with dry, asynchronous and waterproof motor, cooled by the pumped liquid. Rotor running on permanently lubricated ball bearings, oversized and selected to ensure low noise and durability. Thermal-overload protection provided as standard for the single-phase version, while for the three-phase version it is the responsibility of the user. Permanently connected capacitor in the single-phase version. Construction according to CEI 2-3 / CEI 61-69 (EN 60335-2-41). The maximum ambient temperature for using Feka VS is +40°C with the motor above water. Continuous service with liquid temperature +35°C and completely submerged pump.

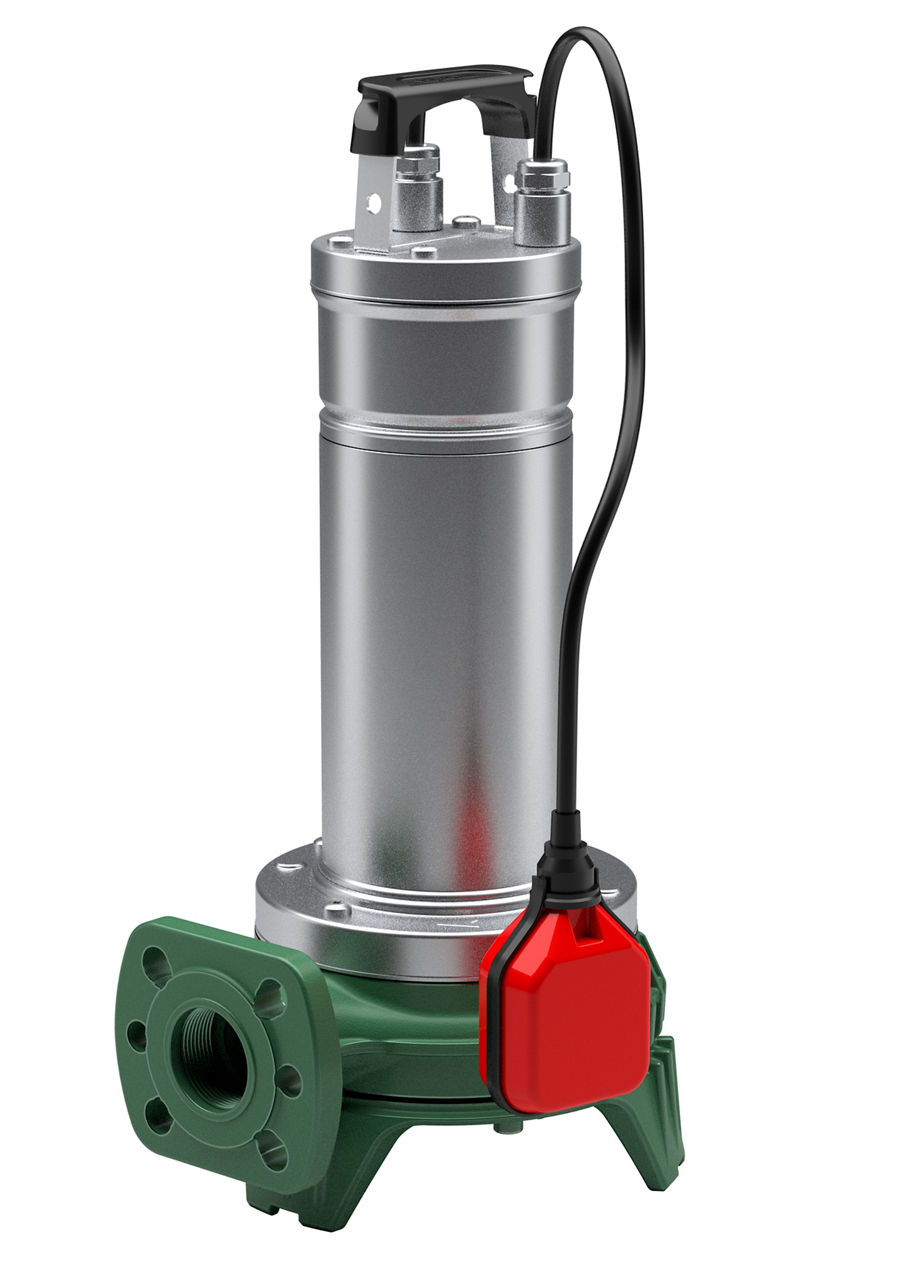

Submersible pump with grinder designed for the lifting and transfer of waste water from drains in domestic applications. The pump is certified to European Union standard EN 12050-1, which applies to lifting systems for waste water containing fecal matter in buildings and building sites. Thanks to the grinder, the pump is suitable for installations with small diameter pipes or that require high pressures. The grinding system is made of AISI 630 stainless steel. Insulating rubber covered handle. AISI 316 stainless steel motor shaft. It has a double mechanical seal with interposed oil chamber (non-toxic oil) in carbon-alumina on the motor side, and silicon carbide/silicon carbide on the pump side. The seal cover, motor casing, cover and handle are made of stainless steel. The pump body and the base are made of cast iron. It’s fitted with dry, asynchronous and waterproof motor, cooled by the pumped liquid. Rotor running on permanently lubricated ball bearings, oversized and selected to ensure low noise and durability. Thermal-overload protection provided as standard for the single-phase version, while the three-phase version has thermal protection that can be connected to a control panel. Permanently connected capacitor in the single-phase version. Construction according to CEI 2-3 / CEI 61-69 (EN 60335-2-41).

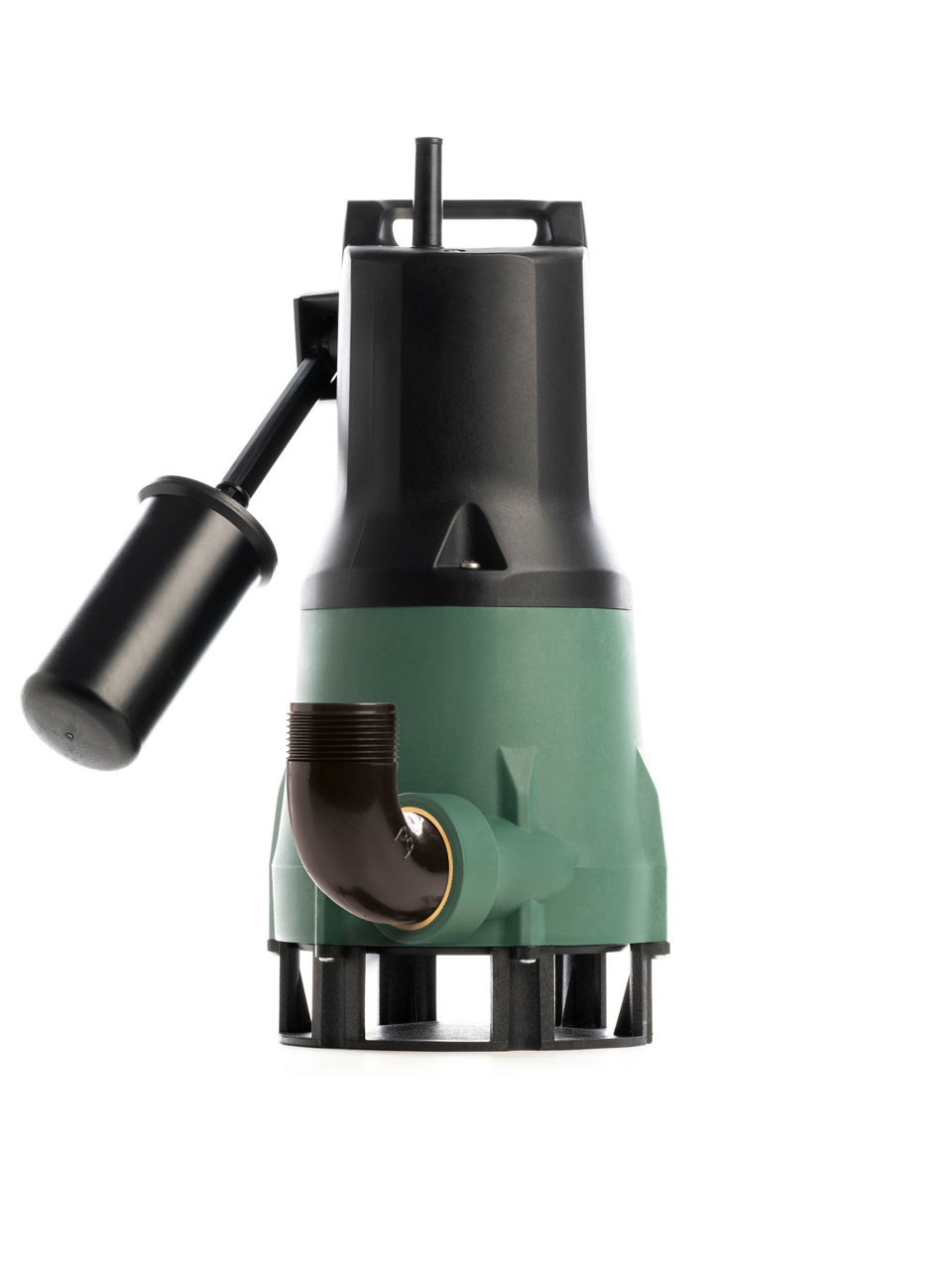

Feka 300 and Feka 600 by DAB are submersible pumps suitable for draining and lifting clear or gray waste water and rainwater in residential building service. The pumps have been redesigned on the occasion of the forty years of marketing, making them even more reliable, resistant and ergonomic. Feka 300 and Feka 600 are suitable for fixed or mobile installations, they are available in the automatic version with integrated float switch or in the manual versions without the float. A 90° connection is provided for the vertical flow. The pump body, the suction grille and the impeller are in technopolymer. Thermal protection incorporated in all single-phase versions. Possibility of dry running up to 1 minute. In compliance with European standard EN 60335-2-41, a 10-metre power cable is mandatory for the pump to be used outdoors. Free passage of 25 mm.

Minimum draft depth:

FEKA 300MA: 150mm

FEKA 300 M-NA: 30 mm

FEKA 600MA: 175mm

FEKA 600 M-NA: 35mm

Powerful submersible pumps for draining and emptying, for use in domestic and residential applications. The use of corrosion and oxidation resistant materials makes them suitable for pumping dirty water. Motor with thermal overheating protection. Wear-resistant motor shaft and impeller. Very efficient motor cooling, allowing the pump to also be used only partially submerged. Automatic version with float switch for automatic pump start and stop, or manual version. Fitted with power input cable with plug, 3-level connector. Check valve to be purchased separately.
