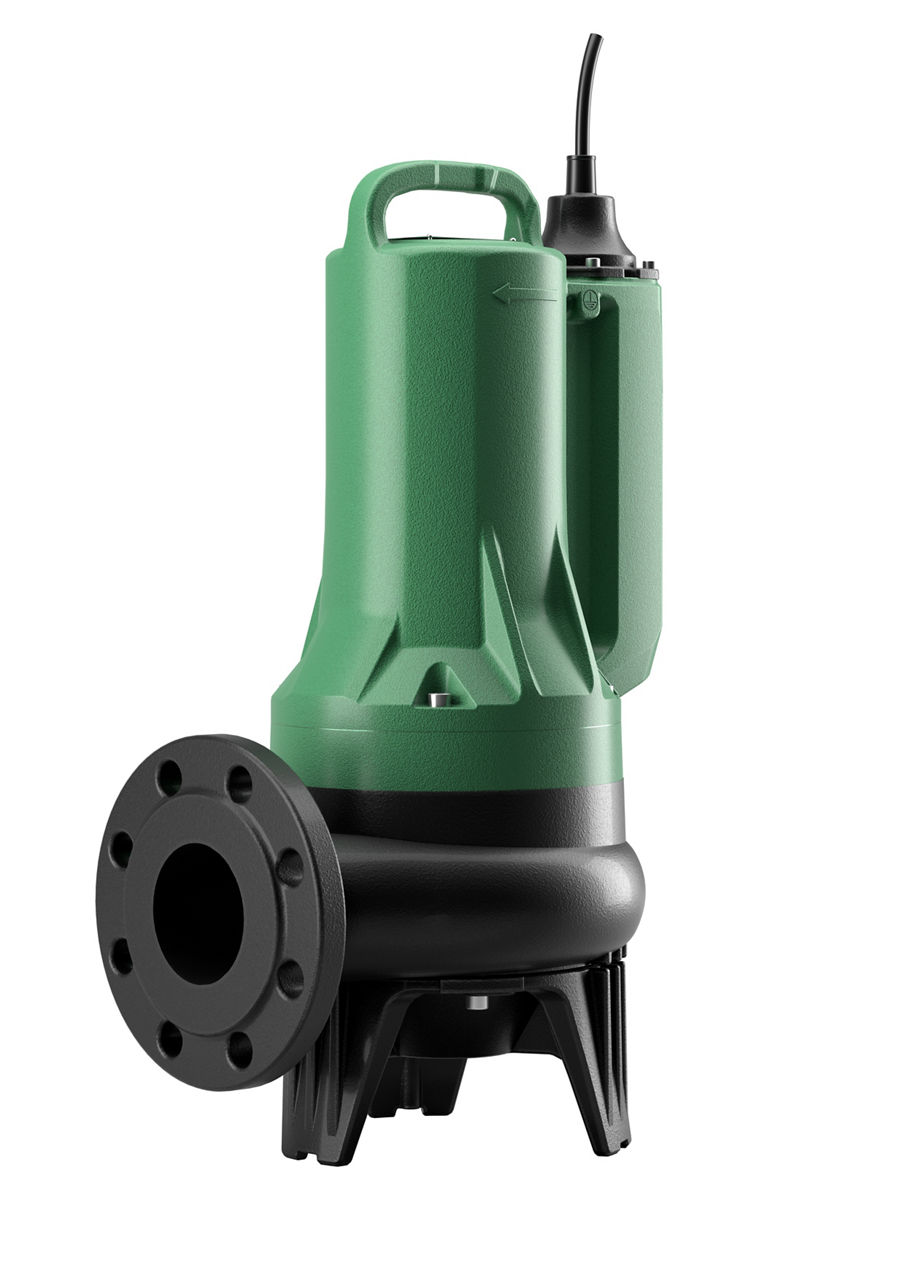

Submersible pumps suitable for pumping dirty water, pre-treated sewage, activated sludge and clarified waste water from both private and commercial dwellings, in accordance with European standard EN 12050-1. It has an open, two-blade, cast-iron channel impeller, making it suitable for use with dirty liquids containing solids free of long fibres with a tendency to lint. Ideal where a high flow rate is required. Double cartridge mechanical seal as standard in SiC/SiC silicon carbide on the hydraulics side and SiC/C silicon carbide on the motor side, independent of the rotation direction. Discharge flange available in DN65, DN80, DN100 versions according to EN 1092-1. High efficiency three-phase asynchronous motor with squirrel cage rotor, efficiency class IE3. Suitable for use with liquids with pH between 6.5 and 12. Maximum number of starts per hour: 20. S1 motor for fully submerged continuous operation or S3 for discontinuous operation with minimum immersion levels. Water infiltration sensor in oil chamber, capable of indicating water infiltrations through the mechanical seal (Optional). Overtemperature sensors in the motor windings with intervention threshold at 150°C. Long-life lubricated bearings for a calculated minimum useful life of 50,000 hours. Stainless steel motor shaft, designed with high fatigue strength. Nominal power from 1.1 kW to 11 kW. ATEX version available for use in potentially explosive environments. Maximum installation depth: 20 metres (with cable of appropriate length). For use at liquid temperatures above +40°C, please contact the sales office.

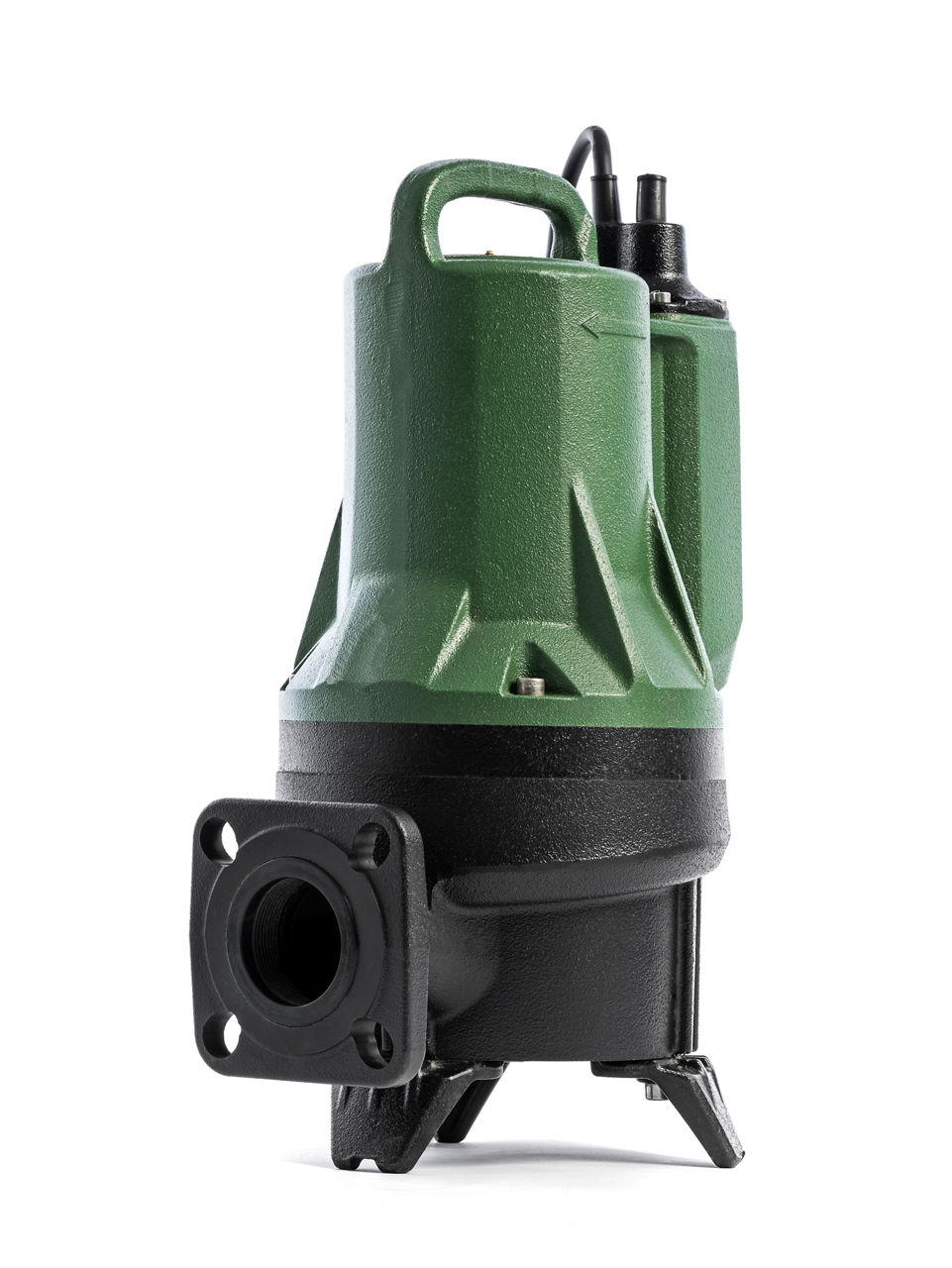

Submersible pump for draining waste water in civil and commercial applications. It’s certified to European Union standard EN 12050-1, which applies to lifting systems for waste water containing faecal matter in buildings and building sites. Pump suitable for fixed installations with coupling device or mobile if placed directly on the bottom of the tank. Thanks to its high-efficiency super vortex impeller with integral free passage, Feka FXV is suitable for use with fluids containing long-fibre coarse solids, gases and slurries. AISI 304 motor shaft and resin-coated cable gland with quick coupling. Feka FXV can deliver high flow rates. Double mechanical seal in silicon carbide completely protected in an oil chamber and not in contact with the pumped liquid. Resin-coated quick-connect cable gland. Ideal pump for replacements, due to its small footprint and both flanged and threaded delivery ports. Designed to allow quick maintenance, thanks to a construction solution that provides easy access to the main components of the pump. Single-phase versions with integrated capacitor, available with float for automatic operation (MA) with powers up to 1,5 kW. In the three-phase versions, protection is the responsibility of the user. Maximum dry run time: 10 min. ATEX version available for use in potentially explosive environments (ATEX certifications: II2G Ex db IIB T4 GB). Special options available on request: cable lengths (20 m or 50 m), frequency (60Hz), different voltages.

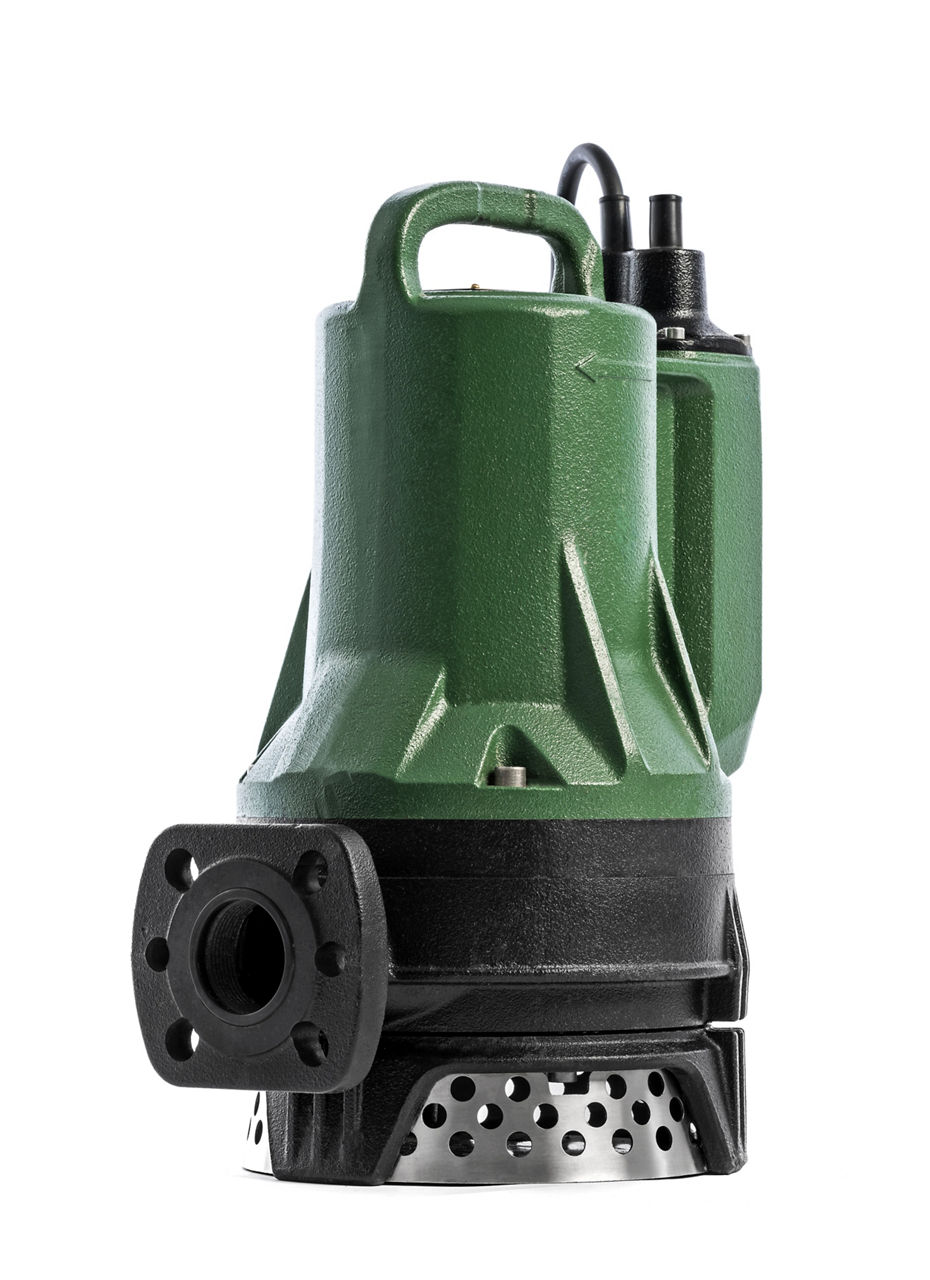

Submersible pump for draining drainage water from civil and commercial building drains and ground water or rainwater. It’s suitable for applications requiring high head. The pump is certified according to EN 12050-2 waste water regulation. Suitable for fixed installations with a coupling device or mobile if placed directly on the bottom of the tank. The reduced dimensions and the threaded and flanged delivery port make it ideal for replacements. Open impeller and anti-wear rubber disc for use even in the presence of abrasive particles. Double mechanical seal in silicon carbide completely protected in an oil chamber and not in contact with the pumped liquid. Motor shaft in AISI 431 stainless steel for P2 < 1,2 kW and AISI 304 for P2 > 1,5 kW, resin-fastened cable gland. The reduced dimensions and the delivery ports both flanged and threaded make it ideal for replacements. Designed for fast maintenance thanks to a construction solution that provides easy access to the main components of the pump. Single-phase versions with integrated capacitor, available with float for automatic operation (MA) with powers up to 1,5 kW. In the three-phase versions, protection is the responsibility of the user. Maximum dry run time: 10 min. ATEX version available for use in potentially explosive environments (ATEX certifications: II2G Ex db IIB T4 GB). Special options available on request: cable lengths (20 m or 50 m), frequency (60Hz), different voltages.

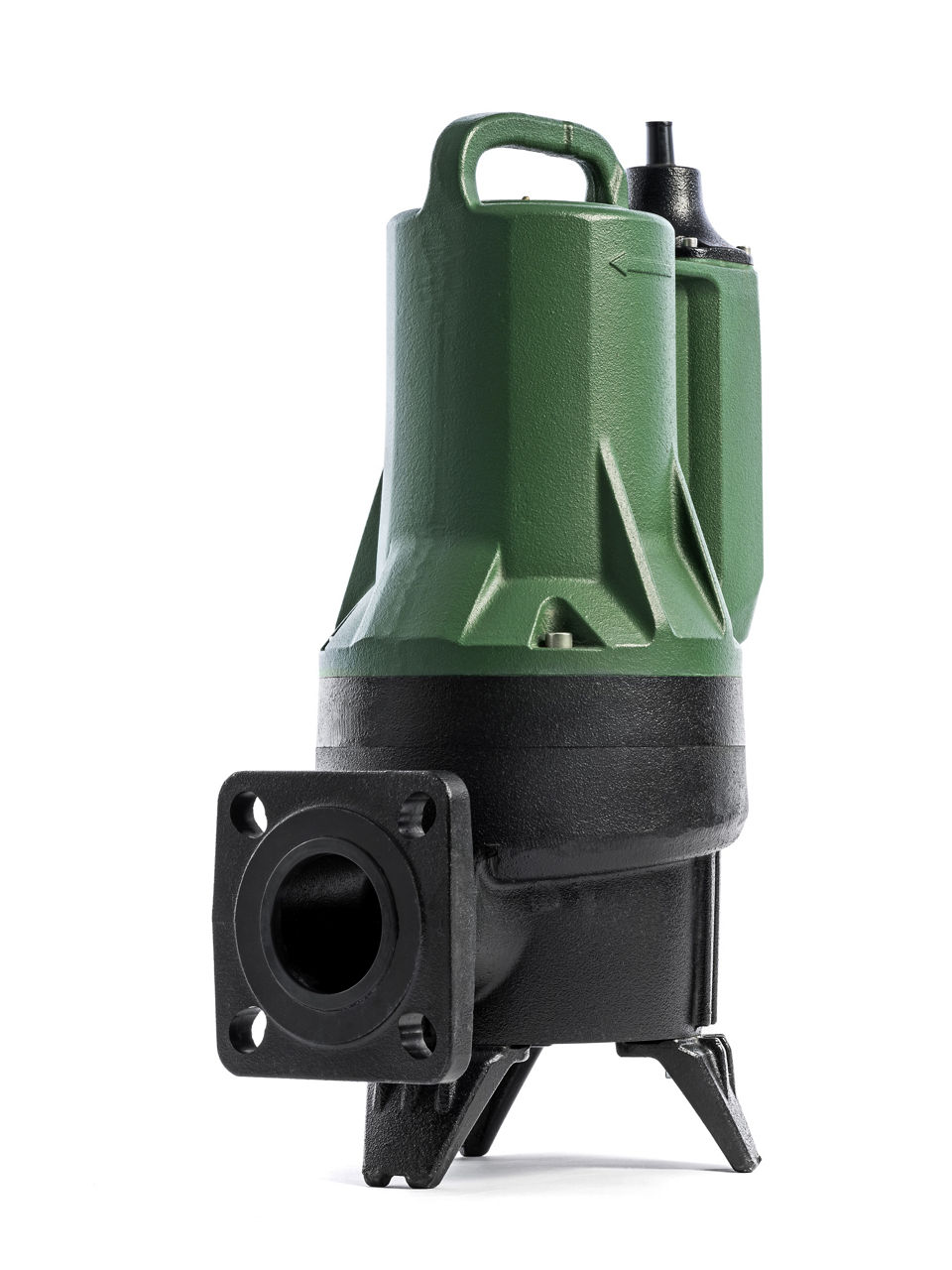

Submersible pump for lifting and redirecting waste water in civil and commercial applications. Certification according to the EN 12050-2 waste water standard. FXC is suitable for effluents and waste water without long fibres, rainwater and ground water. The pump is also suitable for draining areas subject to flooding, when high flow rates are required. Suitable for fixed installations with a coupling device, or mobile installations if placed directly on the bottom of the tank. Channel impeller with a free passage of 50 millimetres and anti-seizing system. Double mechanical seal in silicon carbide completely protected in an oil chamber not in contact with the pumped liquid. Motor shaft in AISI 304 stainless steel, resin-coated cable gland, quick-coupling power input cable. The reduced dimensions and the delivery ports both flanged and threaded make it ideal for replacements. Designed for fast maintenance thanks to a construction solution that provides easy access to the main components of the pump. Single-phase versions with integrated capacitor, available with float for automatic operation (MA) with powers up to 1,5 kW. In the three-phase versions, protection is the responsibility of the user. Maximum dry run time: 10 min. ATEX version available for use in potentially explosive environments. (ATEX certifications: II2G Ex db IIB T4 GB). Special options available on request: cable lengths (20 m or 50 m), frequency (60Hz), different voltages.
