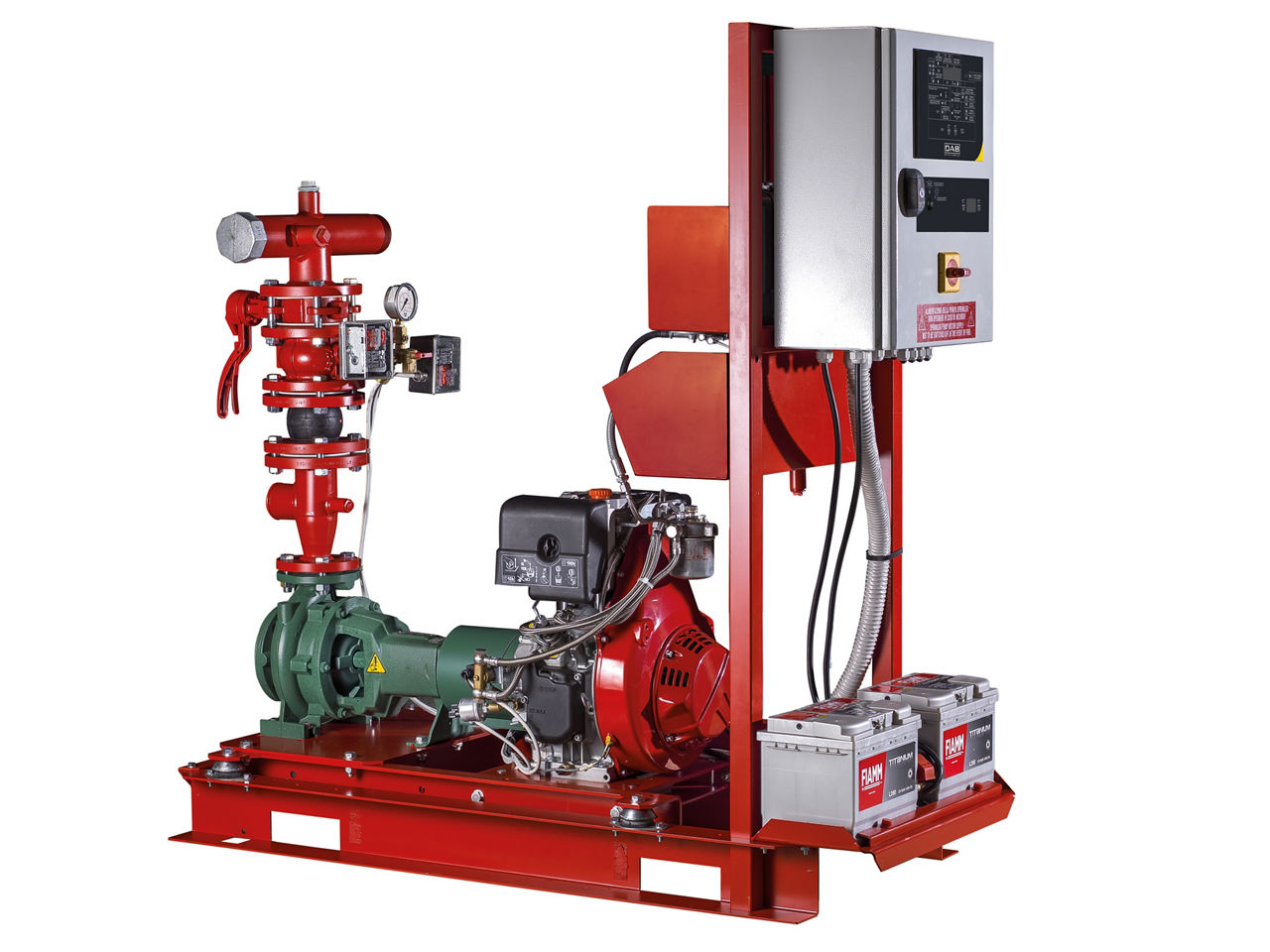

Fire-fighting unit compliant with UNI EN 12845 and UNI 10779 standards equipped with an electric pump or a diesel motor pump. Group 1 KDN Compact is designed for automatic fire extinguishing systems equipped with sprinklers and/or hydrants. Multiple KDN Compact can be paired. Pump coupled by an elastic spacer joint to an electric (IE3) or diesel engine capable of providing zero flow and flow corresponding to an NPSH16M. Modular version to facilitate transport and installation even in the presence of narrow access doors. Through a coupling kit (supplied separately) it is possible to assemble all the compositions required by the standard, with one, two or three electric or diesel pumps, with and without compensation pump. Cooled motors with water-water heat exchangers available on request. Compensation pump optional, can be chosen from JET, KV or KVC pump. There is an electrical control panel for each pump, connected to the main components (motor, pressure switches, sensors, batteries). Technical verification of compliance with the standard certified by a third party.

Fire-fighting unit compliant with UNI EN 12845 and UNI 10779 standards equipped with an electric pump or a diesel motor pump. Group 1 KDN Compact is designed for automatic fire extinguishing systems equipped with sprinklers and/or hydrants. Multiple KDN Compact can be paired. Pump coupled by an elastic spacer joint to an electric (IE3) or diesel engine capable of providing zero flow and flow corresponding to an NPSH16M. Modular version to facilitate transport and installation even in the presence of narrow access doors. Through a coupling kit (supplied separately) it is possible to assemble all the compositions required by the standard, with one, two or three electric or diesel pumps, with and without compensation pump. Cooled motors with water-water heat exchangers available on request. Compensation pump optional, can be chosen from JET, KV or KVC pump. There is an electrical control panel for each pump, connected to the main components (motor, pressure switches, sensors, batteries). Technical verification of compliance with the standard certified by a third party.

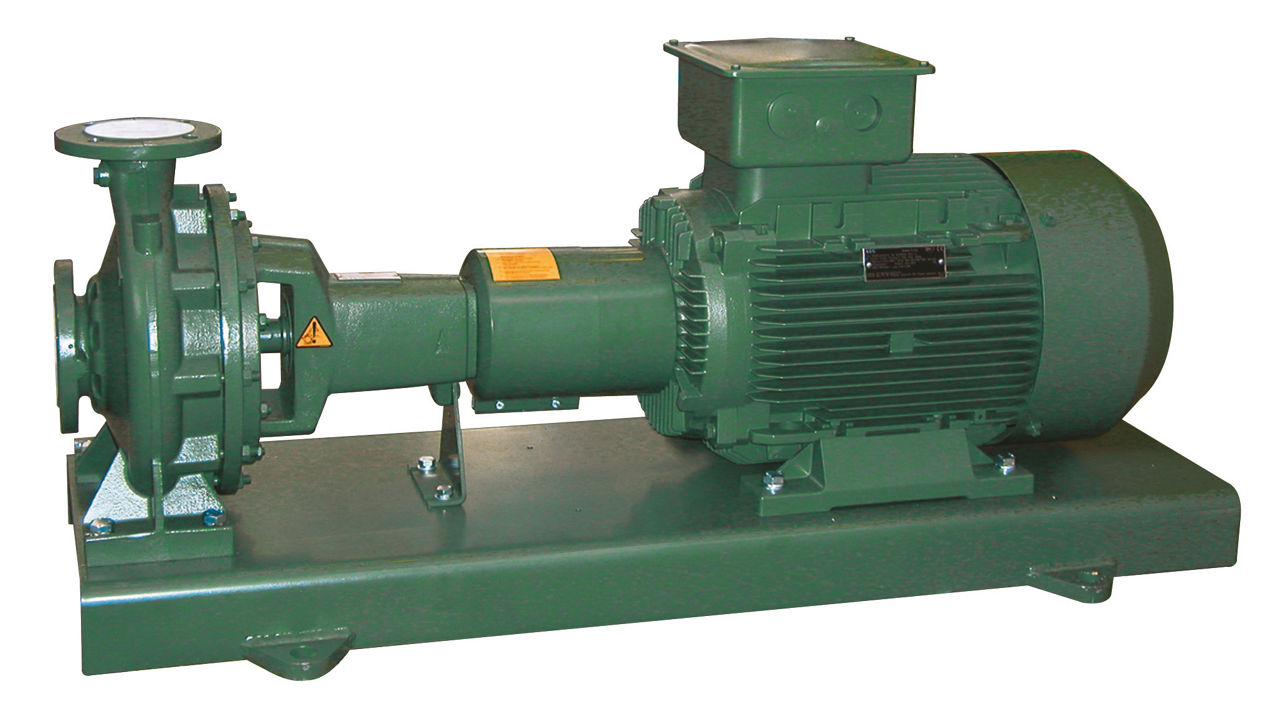

Standardized centrifugal pump designed for pressurization, water circulation in conditioning and heating in commercial building service and irrigation in agriculture. Axial suction connector, radial delivery connector. The pump is engineered to allow disassembly of the bearings, impeller and seal without removing the pump body. KDNE can be coupled to an electric motor with two or four poles and mounted on a pressed steel base compliant to UNI EN 23661. Spiral body in cast iron compliant with DIN EN 733 (ex DIN 24255) cover for seal and motor support in cast iron, flanges in accordance with DIN 2533 (DIN 2532 for the DN 200). Cast iron or bronze impeller, closed and balanced with axial thrust compensation, functioning on request on interchangeable wear rings. Standard sealing device: standardized mechanical seal according to DIN 24960 in carbon-silicon carbide with EPDM OR rings.

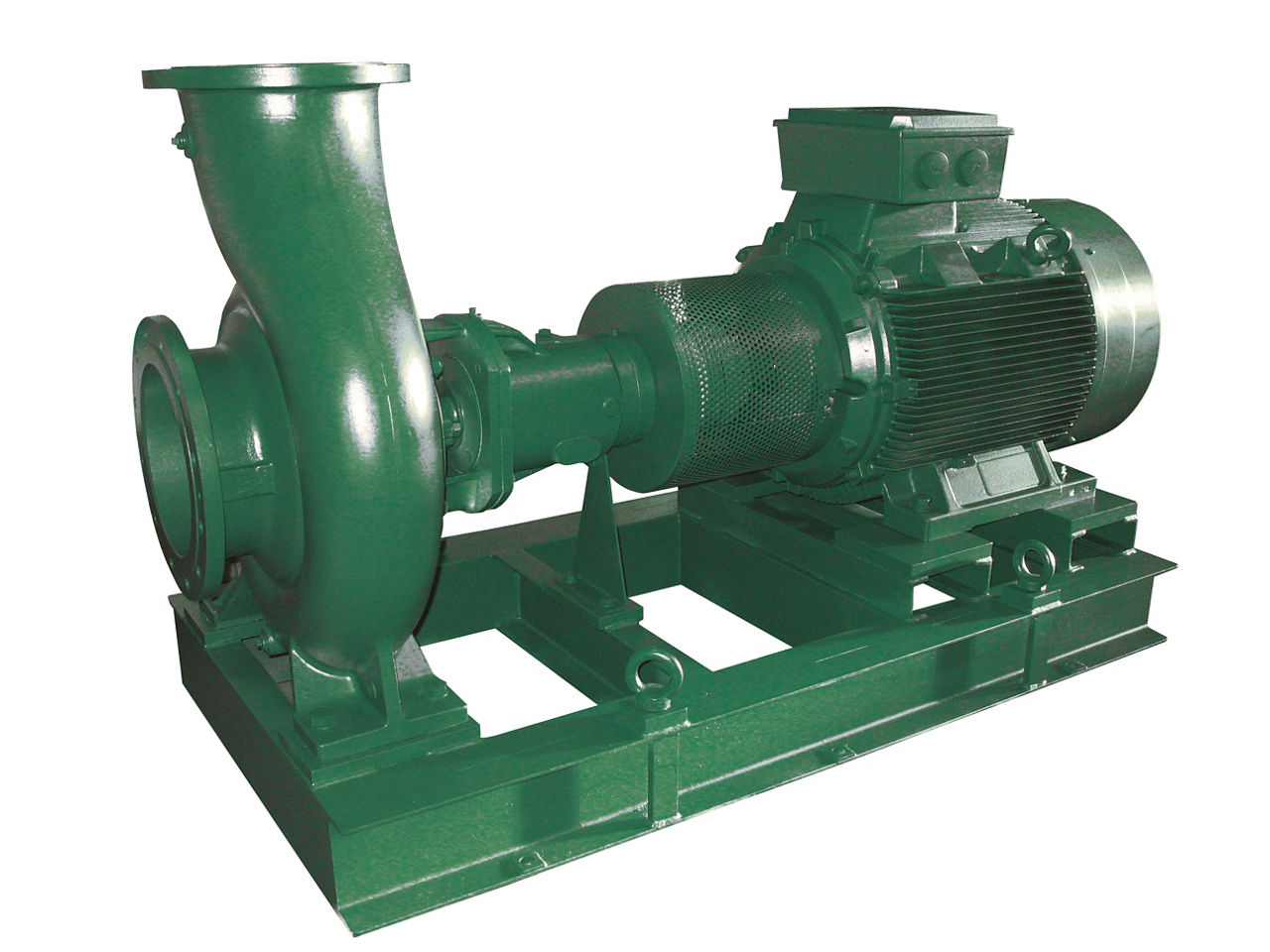

Standardized single impeller centrifugal pump on basement designed for pressurization, water circulation in conditioning and heating in commercial building service and for irrigation also in agriculture. The pump is engineered to allow disassembly of the bearings, impeller and seal without removing the pump body (back pull out design). Available with two-pole motor, four-pole motor and six-pole motor. Axial suction, radial delivery connector. The impeller is in cast iron or in stainless steel, depending on the model; the impeller is hydraulically balanced with the possibility of wear rings. Pump with standard flexible coupling or spacer.

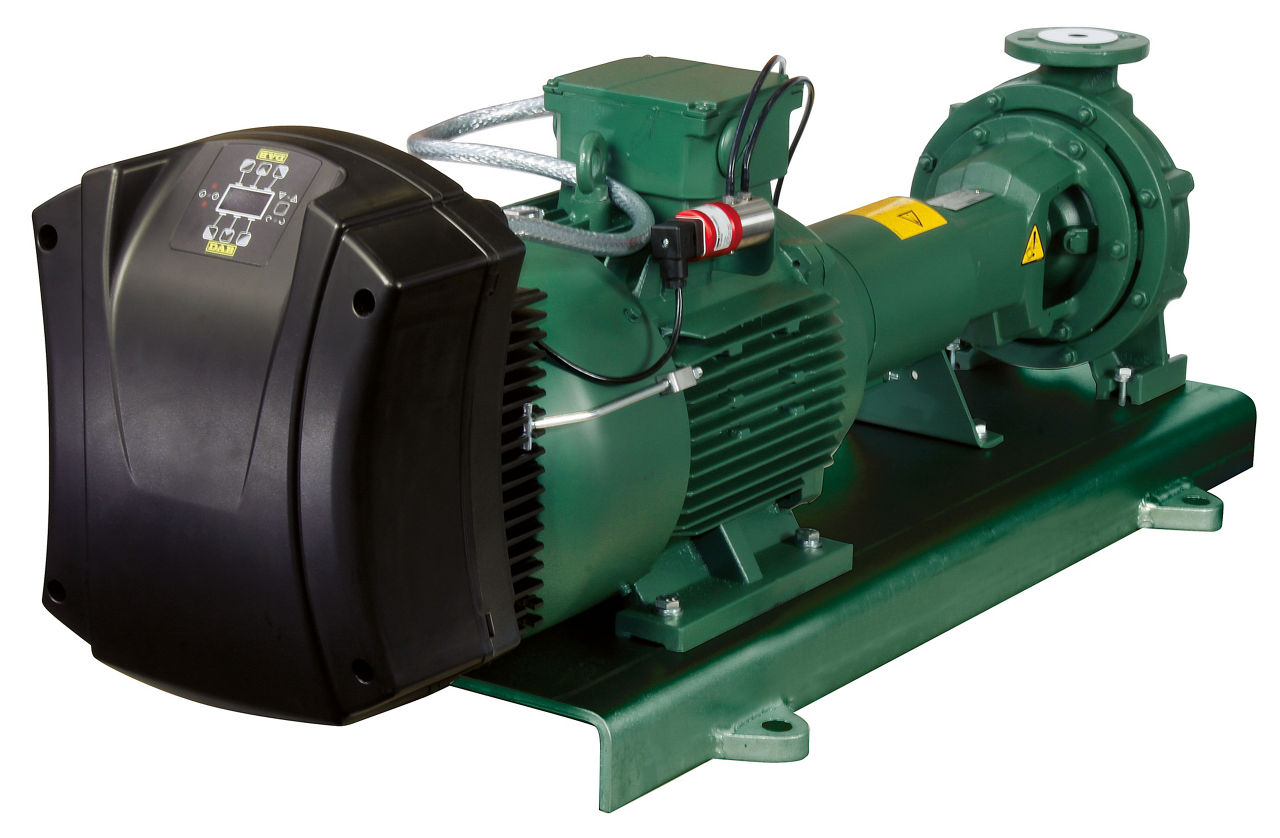

KDNE by DAB is a standardized centrifugal single impeller pump with MCE-C variable frequency drive. KDNE with MCE-C is designed for circulation of water for conditioning and heating in commercial building service. Axial suction connector, radial delivery connector. The pump is engineered to allow disassembly of the bearings, impeller and seal without removing the pump body (back pull out design). KDNE can be coupled to a two or four-pole electric motor. Cast iron or bronze impeller depending on the models. The MCE-C variable frequency drive is able to maintain constant or proportional differential pressures thanks to the differential pressure sensor installed, increases efficiency, protects against water hammer, saves energy and thanks to the display allows simple pump configuration. Possibility of remote control thanks to the DConnect service (with DConnect Box supplied separately). DAB make also the KDNE with MCE-P variable frequency drive for pressurization tasks.

KDNE by DAB is a standardized centrifugal single impeller pump with MCE-P variable frequency drive. KDNE with MCE-P is designed for pressurization of water in commercial building service. Axial suction connector, radial delivery connector. The pump is engineered to allow disassembly of the bearings, impeller and seal without removing the pump body (back pull out design). KDNE can be coupled to a two or four-pole electric motor. Cast iron or bronze impeller depending on the models. The MCE-P variable frequency drive is able to maintain constant or proportional differential pressures thanks to the differential pressure sensor installed, increases efficiency, protects against water hammer, saves energy and thanks to the display allows simple pump configuration. Possibility of remote control thanks to the DConnect service (with DConnect Box supplied separately). DAB make also the KDNE with MCE-C variable frequency drive for circulization tasks.
