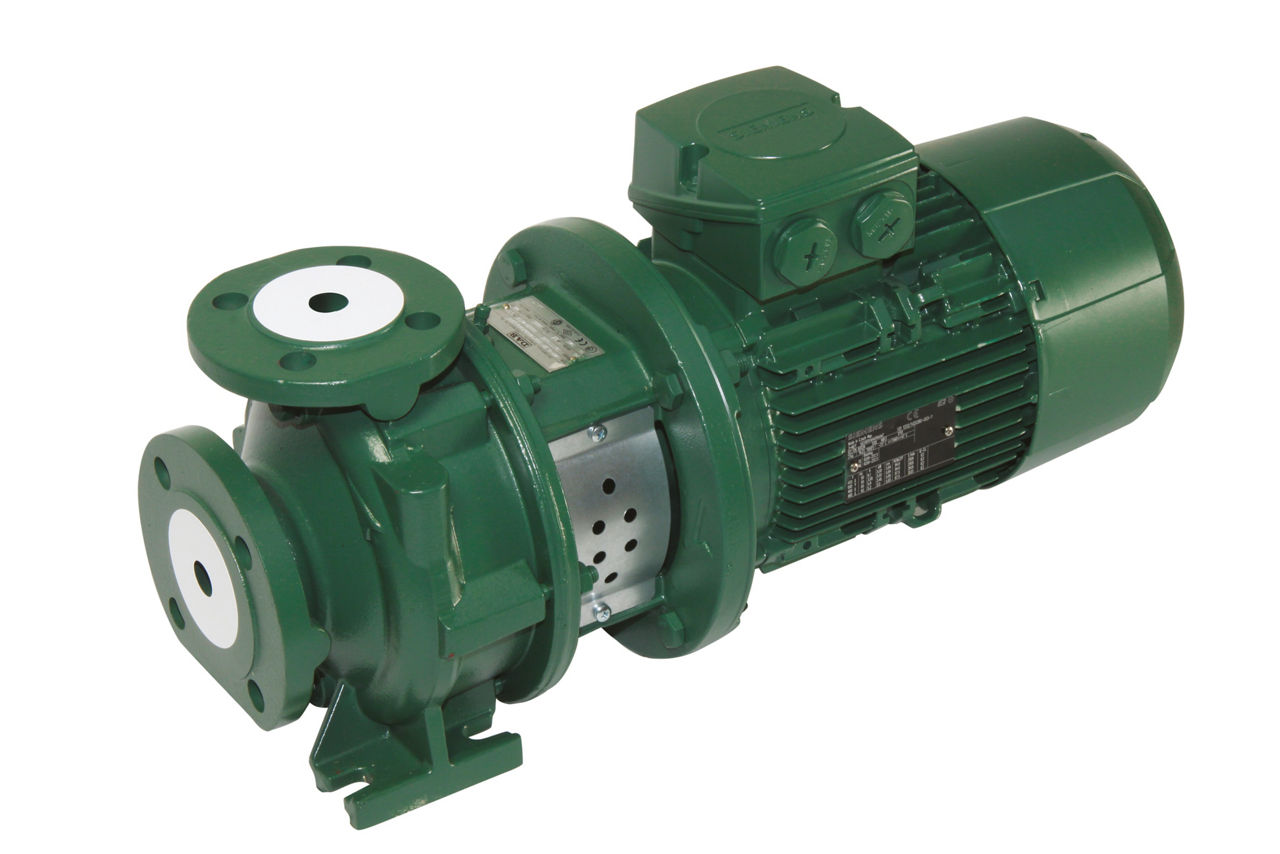

Standardized monoblock pumps for pressurization, water circulation in conditioning and heating even in the presence of solar thermal panels in commercial building service and for irrigation systems also in agriculture. NKM-G has a four-pole motor, NKP-G has a two-pole motor. Cast iron single-impeller pump body compliant with DIN EN 733 (ex DIN 24255) and flange according to DIN 2533 and DIN 2532. Cast iron or bronze hydraulically balanced impeller with optional wear rings. Standardized mechanical seal according to DIN 24960. Air-cooled asynchronous motor. Wide range of supported temperatures. The pumps are able to generate high heads and they can handle large flow rates.

NKM-GE and NKP-GE are EN733-compliant end-suction pumps based on the NKM-G and NKP-G series, supplied as standard with the MCE-P variable speed drive. Designed for pressure boosting applications in residential and commercial environments, as well as irrigation systems, including agricultural applications, NKM-GE and NKP-GE combine the reliability of standardised pumps with the efficiency of variable speed technology. The integrated MCE-P drive protects the system against water hammer, reduces energy consumption by automatically adjusting motor speed and water pressure to meet demand, and simplifies configuration through its user-friendly display. In agricultural applications, NKM-GE and NKP-GE can be used, for example, to irrigate fields or transfer water from tanks and reservoirs. Remote monitoring and control are available through the DConnect service (DConnect Box sold separately). NKM-GE is equipped with a four-pole motor, while NKP-GE features a two-pole motor.

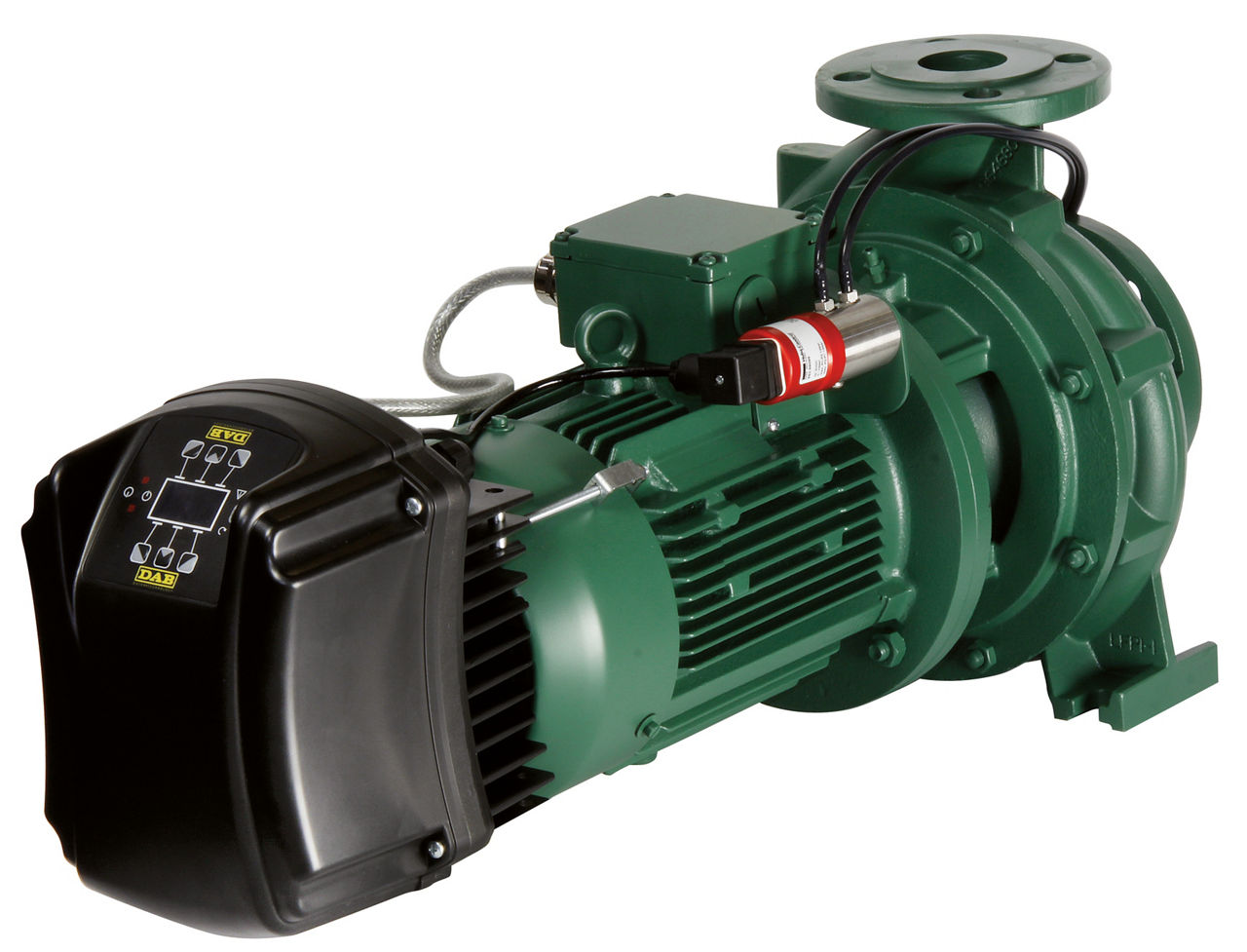

NKM-GE and NKP-GE by DAB are NKM-G and NKP-G pumps with the MCE-C or MCE-P variable frequency drive installed as standard. The pumps with MCE-C are designed for water recirculation for conditioning and heating in commercial building service. The pump with MCE-P are design for water pressurization. The water temperature can vary from -10°C to +140°C. The MCE-C variable frequency drive is able to maintain constant or proportional differential pressures thanks to the differential pressure sensor installed as standard. The use of the MCE-P variable frequency drive increases comfort because it is able to maintain constant pressure as the demand changes, (the pressure sensor installed as standard).The VFD increases efficiency, protects against water hammer, saves energy and thanks to the display allows simple configuration. It is possible to connect two MCE-C variable frequency drive together (through a special connection cable, supplied separately) for the creation of twin units. Possibility of remote control thanks to the DConnect service (with DConnect Box supplied separately). NKM-GE has a four-pole motor, NKP-GE has a two pole motor.

Standardized monoblock pumps for pressurization, water circulation in conditioning and heating even in the presence of solar thermal panels in commercial building service and for irrigation systems also in agriculture. NKM-G has a four-pole motor, NKP-G has a two-pole motor. Cast iron single-impeller pump body compliant with DIN EN 733 (ex DIN 24255) and flange according to DIN 2533 and DIN 2532. Cast iron or bronze hydraulically balanced impeller with optional wear rings. Standardized mechanical seal according to DIN 24960. Air-cooled asynchronous motor. Wide range of supported temperatures. The pumps are able to generate high heads and they can handle large flow rates.

NKM-GE and NKP-GE are EN733-compliant end-suction pumps based on the NKM-G and NKP-G series, supplied as standard with the MCE-P variable speed drive. Designed for pressure boosting applications in residential and commercial environments, as well as irrigation systems, including agricultural applications, NKM-GE and NKP-GE combine the reliability of standardised pumps with the efficiency of variable speed technology. The integrated MCE-P drive protects the system against water hammer, reduces energy consumption by automatically adjusting motor speed and water pressure to meet demand, and simplifies configuration through its user-friendly display. In agricultural applications, NKM-GE and NKP-GE can be used, for example, to irrigate fields or transfer water from tanks and reservoirs. Remote monitoring and control are available through the DConnect service (DConnect Box sold separately). NKM-GE is equipped with a four-pole motor, while NKP-GE features a two-pole motor.

NKM-GE and NKP-GE by DAB are NKM-G and NKP-G pumps with the MCE-C or MCE-P variable frequency drive installed as standard. The pumps with MCE-C are designed for water recirculation for conditioning and heating in commercial building service. The pump with MCE-P are design for water pressurization. The water temperature can vary from -10°C to +140°C. The MCE-C variable frequency drive is able to maintain constant or proportional differential pressures thanks to the differential pressure sensor installed as standard. The use of the MCE-P variable frequency drive increases comfort because it is able to maintain constant pressure as the demand changes, (the pressure sensor installed as standard).The VFD increases efficiency, protects against water hammer, saves energy and thanks to the display allows simple configuration. It is possible to connect two MCE-C variable frequency drive together (through a special connection cable, supplied separately) for the creation of twin units. Possibility of remote control thanks to the DConnect service (with DConnect Box supplied separately). NKM-GE has a four-pole motor, NKP-GE has a two pole motor.
