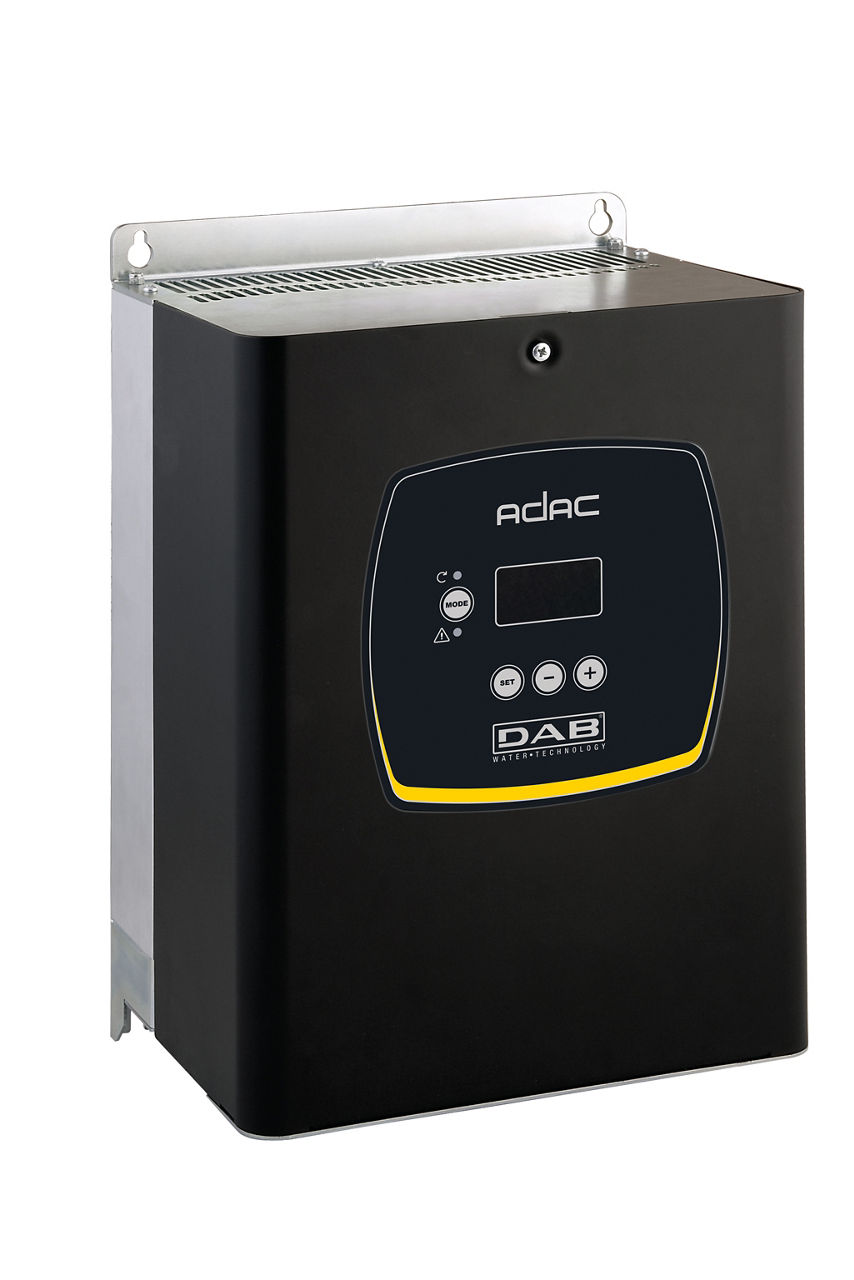

Variable frequency drive electronic panel for the control of pumps used in commercial building service or in agriculture for pressurization and gardening and irrigation. The panel is air-cooled by incorporated fans and is equipped with a display for an easy configuration. The variable frequency drive protects against water hammer and can adapt the pump operation to the requirements of the system. It is also able to drive three-phase pumps up to 15 kW. Flow and pressure sensor supplied separately. Integrated electric protections. It can support up to 8 pumps. It is designed to be installed on a support. Possibility of remote control thanks to the DConnect service (with DConnect Box supplied separately).

EE G, EE 2G, EE 3G are switchboards with inverters to be used in domestic and residential, civil and commercial environments or in agriculture irrigation systems for the control and command of pumps for pressurization, withdrawal from the ground, gardening and irrigation activities or the recirculation of water in heating and air conditioning systems. The inverter saves energy and protects against water hammering. The switchboards are designed to manage one, two or three pumps depending on the version, they allow to adapt the performance curve of the pump to the needs of the system, allowing a constant pressure. They are equipped with a display for easy configuration, a selector for manual/automatic start and indicators to indicate the operating status and alarms (dry running, minimum pressure).
EE G controls one pump, EE 2G two pumps, EE 3G three pumps. The second and third pumps are automatically cascaded to support the first pump. Panels designed for connection of pressure switch or float for stopping, and pressure switch kit for overpressure.

MCE-C is an variable frequency drive with display to be installed in residential building service and commercial building service for the recirculation of water in heating or conditioning systems or on pumps for the circulation of domestic hot water. MCE-C can be set to: constant differential pressure, constant curve, constant curve with external analogue signal and proportional differential pressure. Multiple MCE-Cs can be communicated with each other using a connection cable (supplied separately) in order to be able to create twin groups. The variable frequency drive makes it possible to adapt the performance to the actual requirements of the system and protects the pump from water hammering. It must always be mounted on the fan cover of the motor as it does not have an integrated cooling system. Mounting kit included. Compatible with the DConnect service (DConnect Box supplied separately).

Variable frequency drive with display to be installed on pumps for pressurization or for gardening and irrigation for use in residential building service or commercial building service. MCE-P is able to protect against over-temperature and to manage the motor revolutions adapting them to the needs, allowing an energy saving, reducing the wear of the components and protecting them from water hammer. The display allows easy configuration, also includes a guide and an alarm history. Several identical variable frequency drive can be connected with a connection cable to create groups of up to eight pumps. The installation must always take place on the fan cover of the motor as it is not equipped with its own active cooling system. Adaptable to existing systems, it works with all pumps except submersible ones. The DConnect service makes remote control possible (with DConnect Box supplied separately).

Variable frequency drive with color display. Thanks to a single software you can manage different applications. The same control unit can manage pressurization systems or circulation systems, it is possible to select the type of system in the initial menu (wizard). NgDrive must be installed directly on the wall without the use of additional accessories (wall fixing plate included). NgDrive can control in-line pumps in heating or conditioning systems, pumps for the circulation of domestic hot water and pumps for pressurization in residential and commercial building. The variable frequency drive allows performance to be adapted to the actual demands of the system and, thanks to a gradual decrease in speed, protects the pump from water hammer. Cooling via an integrated fan ensures protection from overheating. The revolutions of the pump motor are adjusted to the needs, allowing energy savings and reducing the wear on the components. The graphic display allows easy reading of the operations and through a guided start menu (wizard) facilitates the start of the system. Adaptable to existing installation, it is also used in systems with submersible pumps to increase the water pressure. Remote control is possible thanks to the DConnect App and connection via Wi-Fi and Bluetooth (smartphone, pc, tablet).
