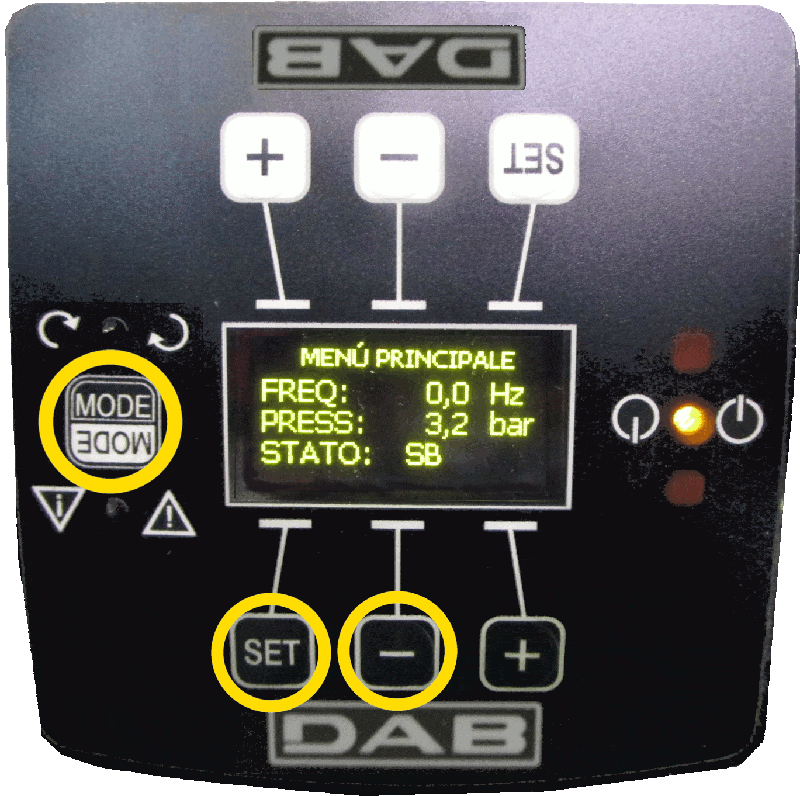

To enter the installer menu, which allows you to change the operating parameters of the inverter, simultaneously press the "mode" "set" "-" buttons for about 5 seconds, until "installer menu" appears on the display. Now the "+" and "-" buttons allow you to increase and decrease the value of the parameter.
The instruction manual of the KE single impeller contains all the information for use, maintenance and installation. The KE single impeller has an MCE-P inverter installed a standard feature, we refer you to the product manual for further information. To learn more about this topic, you can register free for our online course MCE-P tutorial organized by the D.Training, aimed at installers, plumbers or interested people.
Before starting up, check that the pump is properly primed; fill it completely with clean water by means of the hole provided after having removed the filler cap on the discharge body. This ensures that the mechanical seal is well lubricated and that the pump immediately starts to work regularly. The filler cap must then be put back in place. Dry operation causes irreparable damage to the mechanical seal and the stuffing box seal.
Fully open the gate valve on intake and keep the one on delivery almost closed.
The instruction manual of the KE single impeller contains all the information for use, maintenance and installation. The KE single impeller has an MCE-P inverter installed a standard feature, we refer you to the product manual for further information. To learn more about this topic, you can register free for our online course MCE-P tutorial organized by the D.Training, aimed at installers, plumbers or interested people.
The instruction manual of the KE single impeller contains all the information for use, maintenance and installation. The KE single impeller has an MCE-P inverter installed a standard feature, we refer you to the product manual for further information. To learn more about this topic, you can register free for our online course MCE-P tutorial organized by the D.Training, aimed at installers, plumbers or interested people.
The direction of rotation must be checked only in three-phase pumps (then pumps powered at 400 volts). In single-phase pumps (230 volts) the motor always rotates in the correct direction. The direction of rotation must be clockwise as shown:
The instruction manual of the KE single impeller contains all the information for use, maintenance and installation. The KE single impeller has an MCE-P inverter installed a standard feature, we refer you to the product manual for further information. To learn more about this topic, you can register free for our online course MCE-P tutorial organized by the D.Training, aimed at installers, plumbers or interested people.
