CP-GE / DCP-GE - MCE-C

The CPE, CP-GE / DCPE, DCP-GE are CP, CP-GE / DCP, DCP-G pumps with the MCE-C inverter. We refer you to the FAQ for the product and recommend you read the instruction manual of the CPE, CP-GE / DCPE, DCP-GE (also available in our DNA software) which provides all the indications to follow for use of the product. If there is a key on the display in the left bottom corner (the key is automatically activated after a period of inactivity), you need to unlock the access to the modification of the parameters by going to the home page and simultaneously pressing the button next to the display (the one away from the others) and the button underneath the key in the display, until the key on the display disappears. Now that the parameters are editable, just enter the values, paying attention because these can affect the inverter operation. We recommend you read the instruction manual of the MCE-C (also available in our DNA software) for useful information for the use of the product.

MCE-C procedura di sblocco chiave

MCE-C key unlocking procedure

Before starting up you must fill the system with water and bleed the air. Bleed the residual air from the pump body through the bleeding cock provided until only water comes out. This ensures that the mechanical seal is well lubricated and that the pump immediately starts to work regularly. Dry operation, even for brief periods, causes irreparable damage to the mechanical seal. The instruction manual of the CPE, CP-GE / DCPE, DCP-GE (also available in our DNA software) contains all the information for the use of the product, including the guide for installation and information on starting. Since the pumps are combined with the MCE-C inverter, we also refer you to the instruction manual and FAQ of the MCE-C.

The CPE, CP-GE/DCPE, DCP-GE are CP, CP-G/DCP, DCP-G pumps with the MCE/C inverter. The manual contains all the information for the use of the product, including a table listing the most common errors and the solutions for trying to solve them. Since the pumps are combined with the MCE-C inverter, we also refer you to the instruction manual and FAQ of the MCE-C.

CPE-CP-GE-DCPE-DCP-GE troubleshooting
CPE-CP-GE-DCPE-DCP-GE troubleshooting

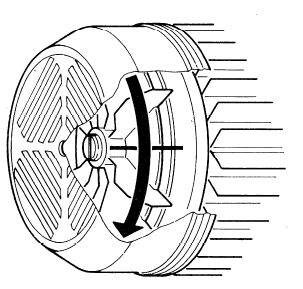

The motor rotation direction may be inverted only in three-phase motor pumps (400 volt). In single-phase pumps (230 volt) the motor always turns in the correct direction. The rotation must be clockwise, as in the figure

CPE, CP-GEDCPE, DCP-GE rotazione motore.png

The CPE, CP-GE/DCPE, DCP-GE are CP, CP-G/DCP, DCP-G pumps with the MCE/C inverter.
