KLME, KLPE / DKLME, DKLPE - MCE-C

If there is a key on the display in the left bottom corner, you need to unlock the access to the modification of the parameters by going to the home page and simultaneously pressing the button next to the display (the one away from the others) and the button underneath the key in the display, until the key on the display disappears. Now that the parameters are editable, just enter the values, paying attention because these can affect the inverter operation. The KLME, KLPE / DKLME, DKLPE are KLM, KLP / DKLM, DKLP pumps with the MCE-C inverter installed as a standard feature. We therefore invite you to read the manual of the inverter (also available in our DNA software) for all the necessary information.

MCE-C sblocco chiave

MCE-C key unlock

Before starting up you must fill the system with water and bleed the air. Bleed the residual air from the pump body through the bleeding cock provided until only water comes out. This ensures that the mechanical seal is well lubricated and that the pump immediately starts to work regularly. Dry operation, even for brief periods, causes irreparable damage to the mechanical seal. Switch on the power and, on three-phase versions, check that the motor is turning in the right direction, that is clockwise when viewed from the fan side. Otherwise invert any two phase leads, after having disconnected the pump from the mains. With the pump running, check the supply voltage at the motor terminals, which must not differ from the rated value by +/- 5%.With the unit at regular running speed, check that the current absorbed by the motor does not exceed the value on the data plate. The KLME, KLPE / DKLME, DKLPE are KLM, KLP / DKLM, DKLP pumps with the MCE-C inverter installed as a standard feature. We therefore invite you to read the manual of the inverter (also available in our DNA software) for all the necessary information.

KLME-KLPE-DKLME-DKLPE troubleshooting
KLME-KLPE-DKLME-DKLPE troubleshooting

The KLME, KLPE / DKLME, DKLPE are KLM, KLP / DKLM, DKLP pumps with the MCE-C inverter installed as a standard feature. We therefore invite you to read the manual of the inverter (also available in our DNA software) for all the necessary information.

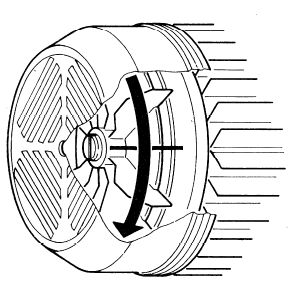

The motor rotation direction is different only in the three phase motor pumps (400 volt).
Switch on the power and, on three-phase versions, check that the motor is turning in the right direction,
that is clockwise when viewed from the fan side. Otherwise invert any two phase leads, after having disconnected the pump from the mains.
With the pump running, check the supply voltage at the motor terminals, which must not differ from the rated value by +/- 5%.
With the unit at regular running speed, check that the current absorbed by the motor does not exceed the value on the data plate.



The KLME, KLPE / DKLME, DKLPE are KLM, KLP / DKLM, DKLP pumps with the MCE-C inverter installed as a standard feature. We therefore invite you to read the manual of the inverter (also available in our DNA software) for all the necessary information.

KLME-KLPE-DKLME-DKLPE rotazione
