01/12/2014

INSTALLATION OF THE STADIUM HEATING PLANT WITH HEATED PITCH
Where: Italy
Client: the Milan Municipality and the two clubs
Channel: Commercial Building Service
Applications: Heating

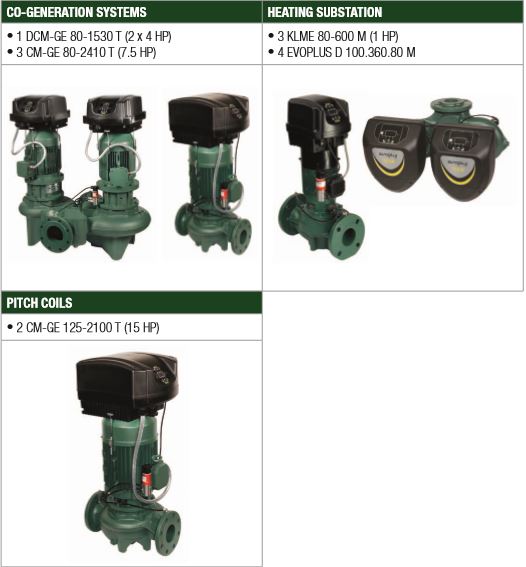

Products: CM, CM-G / DCM, DCM-G, KLME, KLPE / DKLME, DKLPE - MCE-C, Evoplus

THE REQUEST: STADIUM HEATING PLANT WITH HEATED PITCH

STADIUM HEATING PLANTThe pitch was to be heated by an under-soil system with single-head in-line electronic pumps. For the conditioning systems in the accessory areas, a heating substation was installed with wet-rotor circulators and in-line electronic pumps. For the auxiliary plants for the production of heating energy, co-generation systems were made with single-head and twin-head in-line electronic pumps. Although inverter technology is an initial investment for the pump, the optimisation of operation combines with a lower running cost, representing a brilliant example of efficient installation.
