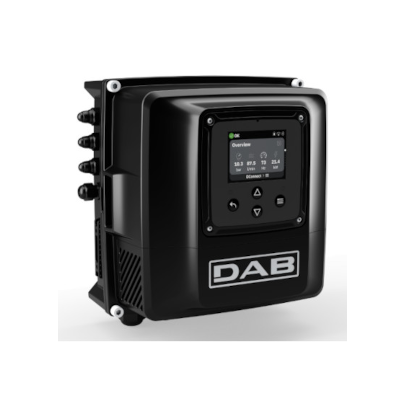

NgDrive is a protection and control variable frequency drive designed to manage pressure booster and circulation pumps, adjusting motor speed to suit the system's actual requirements.
This control unit is ideal applications in residential and commercial settings, it optimizes installation management and monitoring; maximizes energy efficiency by reducing consumption and avoiding waste; and reduces mechanical stress on the motor, essentially making the whole pumping system more effective and reliable.
Compatible with DAB pumps as well as other products in the market, NgDrive is also suitable for upgrading obsolete installations, also with submersible pumps.
The display ensures easy use. The systems takes only 5 minutes, and 5 basic steps to be set, through the wizard, quickly choosing the necessary settings.
Used in conjunction with DAB Virtual Cockpit and DConnect, NgDrive takes user experience to the next level, providing pump control from any location.
On a single clear, user-friendly screen, DAB Virtual Cockpit summarises all the key information to be monitored in order for the pumping system controlled with NgDrive to work at its best.
With the new DConnect portal and app, you can communicate with NgDrive even metres away from the installation — or even from the comfort of your living room — to monitor and control the system in the same way as your day-to-day interactions with the smart objects we're all familiar with.
NgDrive is equipped with Bluetooth and Wi-Fi connectivity and also has a USB port where you can connect a 4G dongle to have connectivity in areas not covered by Wi-Fi. Modbus protocol as standard, suitable for BMS (building management system) networks.
NgDrive is available in different models to respond to the different types of power supply and power sizes of the pumps, according to the maximum current delivered. It is equipped with various functions such as anti-blocking, a warning system in case of too many pump restarts, anti-freezing, dry running protection, day-night setting, pressure boost during peak hours .
The gradual filling functionality of the systems (slow filling mode) can be set directly via wizard. It is possible, among other things, to choose to stop the pumps at minimum frequency or via flow sensor.
