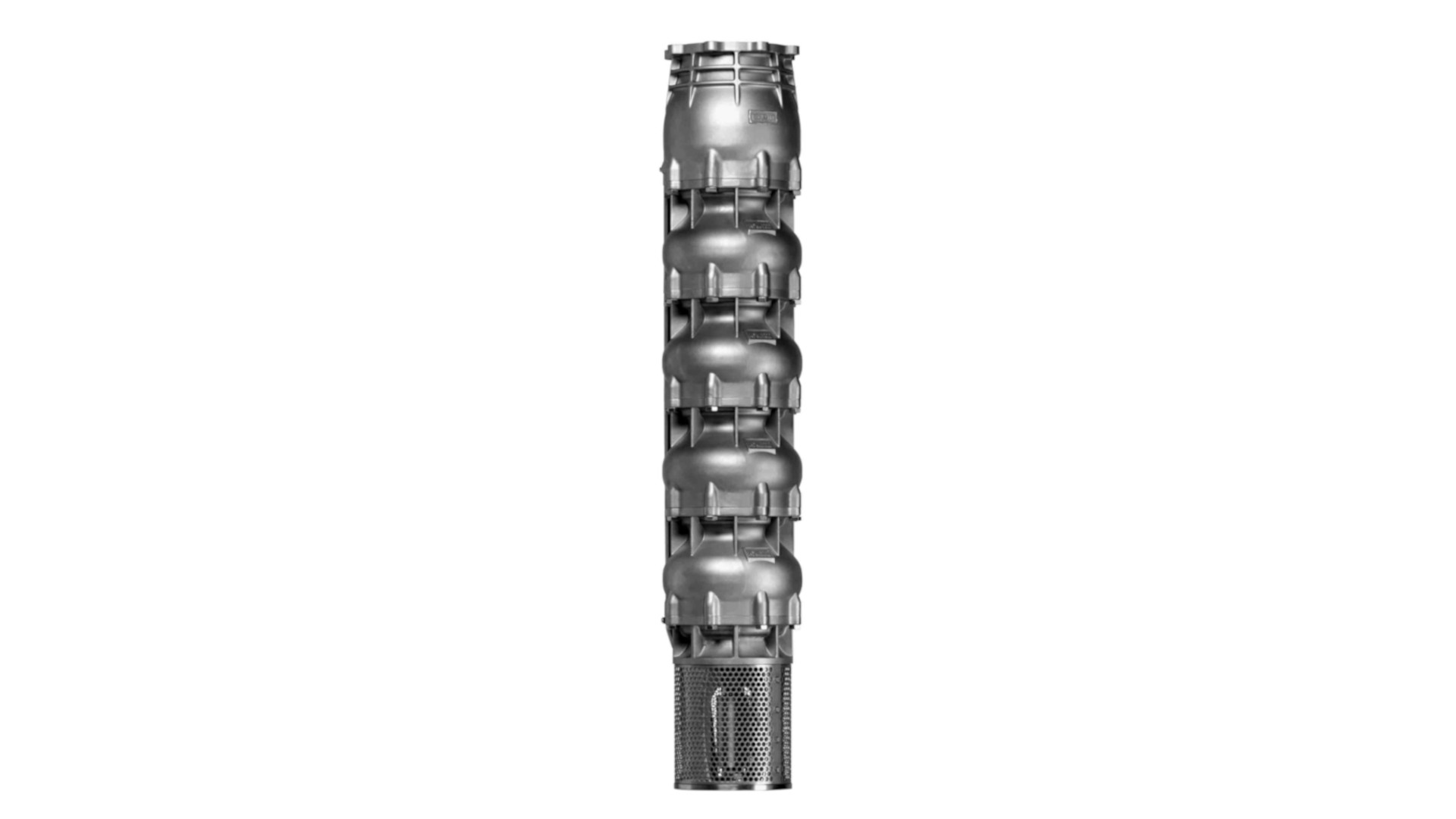

SMN 10 by DAB is a 10 inch semi axial multi-impeller submersible pump in AISI 316 stainless steel for clean water. Designed for pressurization, lifting water from wells in commercial building service and for use in irrigation systems also in agriculture. The SMN 10 pump allows you to increase the pressure of the water lifted from wells (at least 10" in diameter), from cisterns or tanks in irrigation system also in agriculture. Different types of impeller are available to guarantee the best efficiency at different flow rates. There are models up to 7 impellers to cover a wide range of heads. The SMN 10 pump must be coupled to a submersible motor from 6" to 10" to be selected according to the needs. Impellers in AISI 316 stainless steel. The pump is comply with DM174.
| Flow rate |
Up to 420 m2/h |
| Head up to |
253 m |
| Maximum immersion depth |
Depending on the motor |
| Type of pumped liquid |
Clean, free from solid or abrasive substances, non-viscous, non-aggressive, non-crystallized and chemically neutral, also suitable for aggressive solutions and/or salt water. |
| Amount of sand supported |
100 g/m3 |
| Liquid temperature range |
From 0°C to +30°C |
| |
|
| |
|
| |
Depending on the motor |
| Flanges, thread |
6" with counterflange to be welded on the pipe supplied as standard |
| Pump maximum diameter |
249 mm |
| Impeller/s material |
AISI 316 stainless steel |
| Maximum number of starts |
Depending on the motor |
| Protection class of the pump |
IP 68 |
| Motor insulation class |
Depending on the motor |
| Single phase power input |
Not available |
| Three-phase power input |
3x230 V 50 Hz / 3x400 V 50 Hz |
| Power cable (m) and plug |
Depending on the motor |
| Possible type of installation |
Fixed in vertical position. Horizontal installation permitted by removing the non-return valve and installing a cooling jacket (check the applicability of the motor for horizontal use in the dedicated section) |
